Description
Baja Designs 44-0016 Squadron 2.0 Sport behind-the grille kit for the 2021-26 Ford F-150 Raptor, 2024-26 Ford F-150 Raptor 37/R. 3,200 raw lumens per light. The new Squadron 2.0 features an independent 9-color-option backlight.

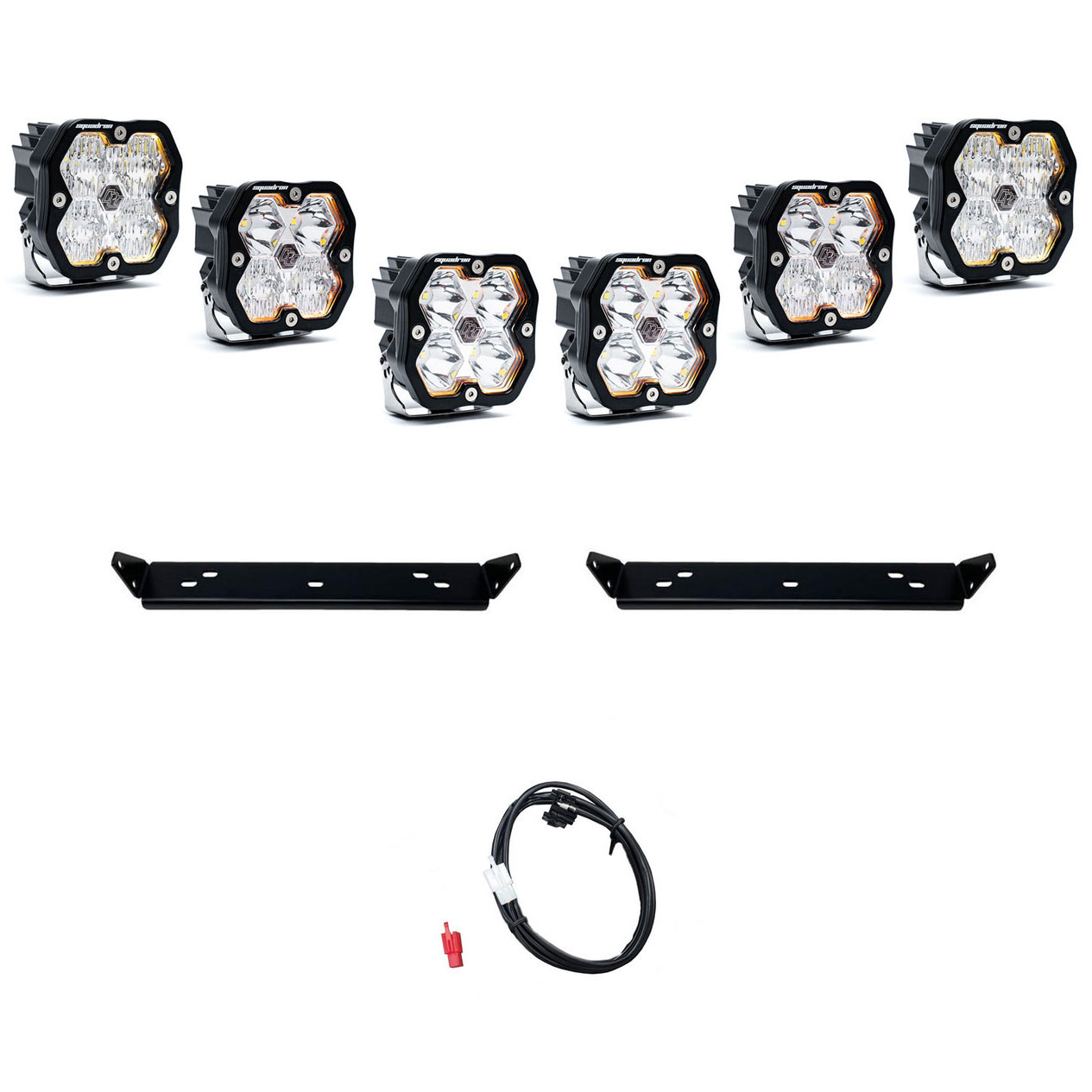

Includes:
(2x) Squadron 2.0 Sport – Wide Cornering Clear
(2x) Squadron 2.0 Sport – Driving Combo Clear
(2x) Squadron 2.0 Sport – Spot Clear
(2x) Behind-the-Grille mounting brackets
(1x) Wiring Harness
(1x) Upfitter Wiring Harness
All Necessary Mounting Hardware
Specifications (Per Light):
Lumens: 3,200
Watts/Amps: 30W/2.2A @13.8V
Operational Voltage: 12-32V
IP69K Rated
Baja Designs Squadron 2.0 Sport behind-the grille kit for the Ford Raptor is designed with both functionality and visual appeal in mind. This kit offers six Squadron 2.0 Sports in multiple lens configurations, mounting brackets, and hardware. This kit provides light into lighting zones 1-4, making this the ultimate behind-the-grille kit.
Completely redesigned from the inside out, the all-new Squadron 2.0 Sport features next‑generation optics and an impressive 3,200 lumens at 30W each—a 26% increase in performance over the previous generation—while delivering improved beam control and higher efficiency. The refined optical system projects a cleaner, farther‑reaching, and wider beam while minimizing unwanted spill, giving Raptor owners more usable illumination for any terrain while not affecting the stock look.
New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4‑pin Deutsch connector, and an all‑new user selectable backlight with nine selectable colors to match your Raptor’s style. Enhanced uService® features clip‑in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long‑term weather protection.
We have also included an upfitter harness that will allow you to tap your lights into the factory upfitter switches. Backed by our Limited Lifetime Warranty, this behind-the-grille kit delivers premium performance, rugged reliability, and peace of mind for every Ford Raptor adventure.
NOTE: This kit will not work with adaptive cruise control relocation kits.
Squadron 2.0 Features:
Refined beam pattern provides greater distance, wider coverage, and reduced light spill
RGBW backlight with 9 selectable colors to match any vehicle
New clip‑in reflectors stay secure during lens changes, improving uService®
New gasket design improves sealing and protection against the elements
Redesigned mounting bracket allows greater vertical adjustability
Standard 4‑pin Deutsch connector for improved wiring harness durability
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
