Description
Fits 2009-2014 Ford Ford F150, and 2010-2014 Ford F150 Raptor. Includes A-pillar mounting brackets, wiring harness, (2) Squadron Pro LED lights. Choose between Amber & Clear lenses, and spot, driving/combo, wide cornering, or work/scene lighting patterns.
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
Baja Designs’ F-150 and Raptor A-Pillar Kit is your ticket to prolonging the day! This kit gives you the option to run our Squadron or S2 Series LED lights. Installation of this kit is simple, and the design is robust to ensure there are no vibrations, even when you’re running down wash-boarded roads. If you’re looking to spice up your truck and get more out of the day this kit is for you.

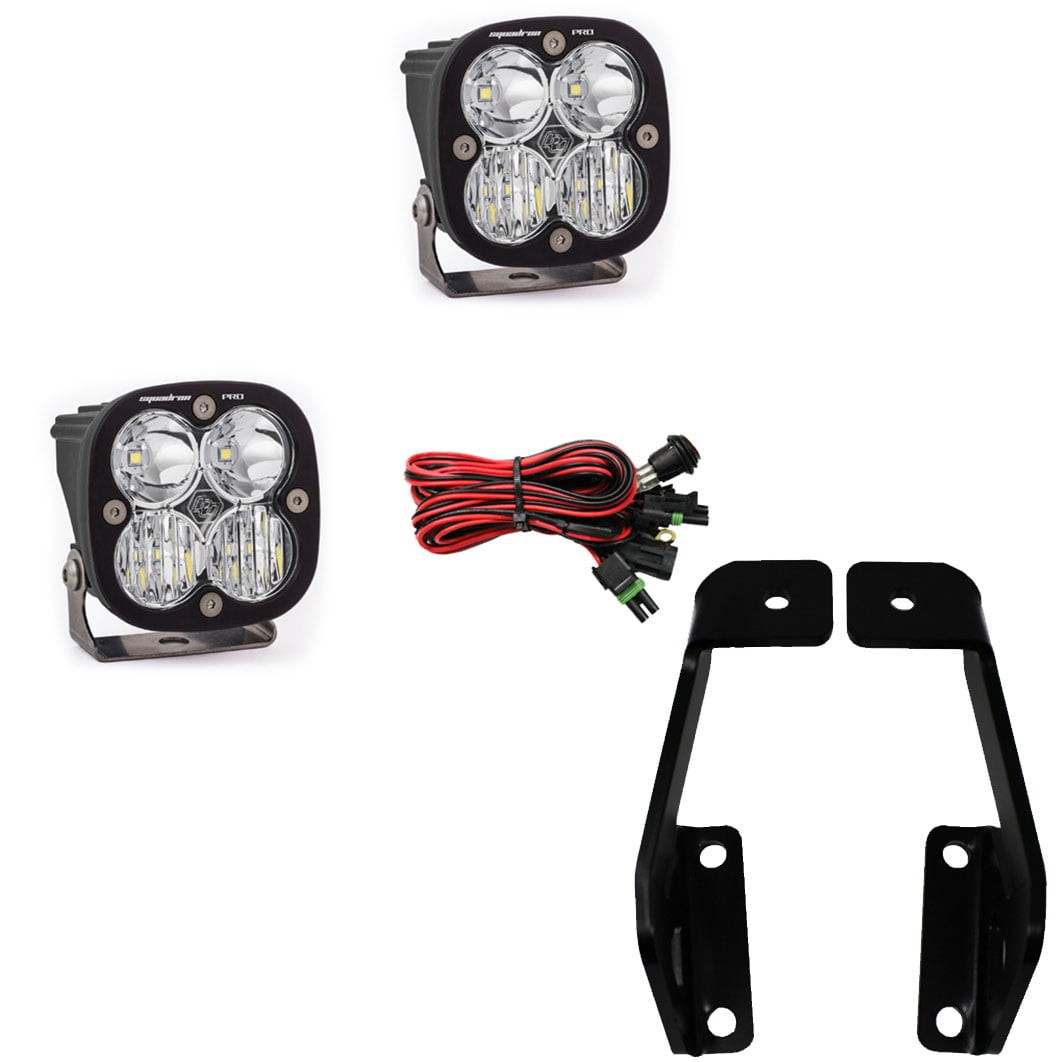

Included In Kit:
-Wiring Harness
-x2 Squadron Pro LED Lights
-A-Pillar Brackets
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color Specifications (per light):
Lumens: 4,900 Utilizing 4 Cree XM-L2 LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
2009, 2010, 2011, 2012, 2013, 2014 Ford F150 & Raptor Trucks
XL, XLT, Lariat, King Ranch, Platinum, Limited
