Description

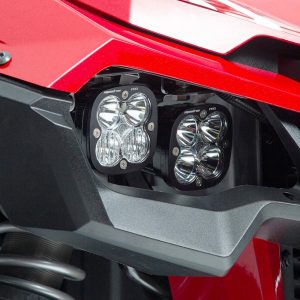

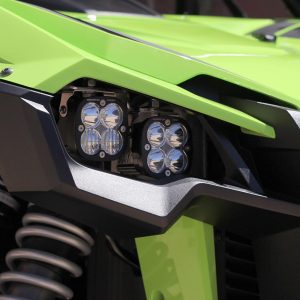

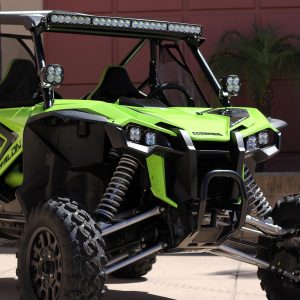

Baja Designs Squadron Pro Headlight Kit for 2019-Up Honda Talon. This headlight kit uses 2 Squadron Pro LED lights & 2 Squadron Sport LED lights, and custom black powder coated vehicle specific mounting brackets with all necessary hardware & wiring.
The Honda Talon Squadron Pro Headlight Kit from Baja Designs will help you get the most out of your UTV while keeping you safe out on the trails. Utilizing our next-generation LEDs within two Squadron Pros pushing 4,095 raw lumens and two Squadron Sports with 3,162 raw lumens, this kit has everything you need for a quick install. This kit is the perfect complement to a bumper or roof-bar lighting solution. This plug-and-play mounting kit includes two vehicle-specific mounting brackets and a wiring harness, allowing you to use your factory high/low switch and mounting hardware. Paired with our 30-Day Satisfaction guarantee and Limited Lifetime Warranty for the ultimate in-purchase protection! USPTO Reg No. 5,766,659
Includes:
Squadron Sport Driving Combo Clear (x2)
Squadron Pro Spot Clear (x2)
Mounting Brackets (x2)
Harness Adaptor – 600012 (x2)
Mounting Hardware
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:
SKU: 490001
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
SKU: 490003
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Fits:
Honda SXS10S2R Talon 1000R 2019-2022
Honda SXS10S2RD Talon 1000R FOX Live Valve 2021-2021
Honda SXS10S2X Talon 1000X 2019-2021
Honda SXS10S2XD Talon 1000X FOX Live Valve 2021-2021
Honda SXS10S4 Talon 1000X-4 2020-2021
Honda SXS10S4 Talon 1000X-4 FOX Live Valve 2020-2022
