Description

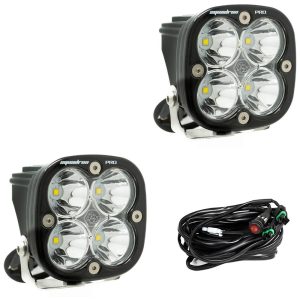

Baja Designs Squadron Pro clear spot beam 497801 pod lights with wiring harness are race proven truck, ATV, UTV, off-road lights for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron lights are waterproof and impact resistant. Package includes mounting hardware, brackets, wiring harness, and rock guards to protect each squadron’s lens & bezel from debris.
Brightness: 4,095 raw lumens per Squadron Pro light.
Includes:
(2) Squadron® Pro LED Lights
(2) Mounting Brackets w/Hardware
(1) Wiring Harness w/Illuminated Rocker Switch
Optics Pattern- Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Light up the night with Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
Squadron Pro Driving Combo Clear: ELS 122°/ 7.2/ 266’/ 3708
Squadron Pro Spot Clear: ELS 86⁰/ 6.2/ 323’/ 3443
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Spot; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod Pair w/ Wiring Harness
Wattage (W) 41.400
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
