Description

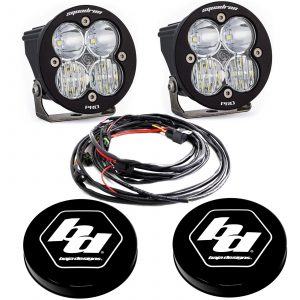

Baja Designs pair of Squadron-R Pro UTV LED driving combo pattern lights in white/clear (part #597803) with snap on black rock guards. See below for detailed manufacturer specs. Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Key Features:
- 3.5″ Black powder coated aluminum housing
- Made in the USA – San Marcos, CA
- Hard coated polycarbonate lens
- Billet machined aluminum bezel
- Stainless steel hardware and bracket mounts
- Built-in overvoltage protection
- Stainless steel mounting hardware
- Replaceable lenses and optics
- 49,930 hour life expectancy
- IP69K certified (Waterproof up to 9ft and pressure washable)
- IK10 compliant (Mechanical impact testing)
Kit Includes:
-Two Squadron-R Pro Driving/Combo lights (4,900 lumens each)
-Mounting Brackets
-Wiring Harness
Manufacturer’s Description:
Squadron-R Pro
Enjoy 4,900 lumens utilizing 4 Cree LEDs! The Squadron-R Pro’s light weight and powerful capabilities make it the ideal companion for all of your late night off-roading adventures! Relish high-performance and durability with nearly 50,000 hours of auxiliary LED light, optimized for a more traditional LED experience and aftermarket bumper featuring a 4” round hole. As always, Baja Designs offers a 30 Day Satisfaction Guarantee & Limited Lifetime Warranty.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color Specifications:
Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A

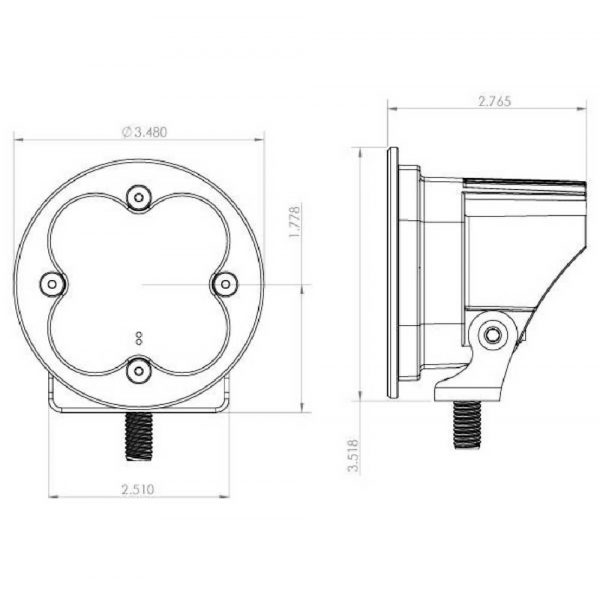

Dimensions: 3.5″ x 2.77″ x 3.5″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)Includes:
Squadron-R Pro LED Light
Mounting Bracket
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
