Description

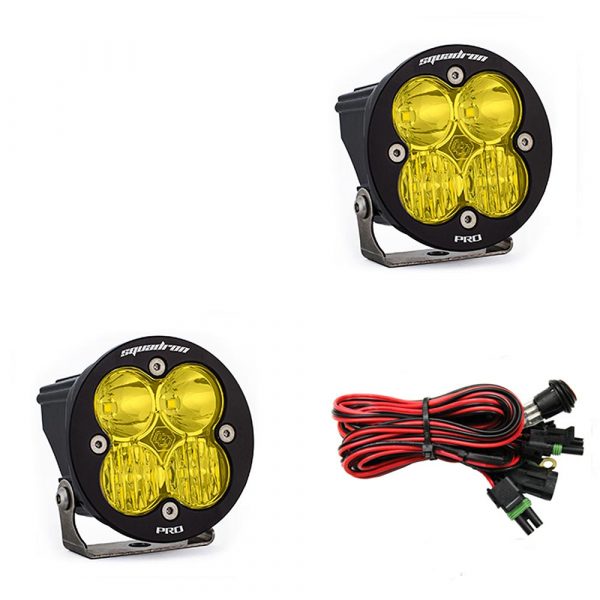

Baja Designs 597813 Squadron-R Pro Round LED Amber fog driving/combo pattern lights are a race proven truck, ATV, UTV, off-road lighting solution for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron lights are waterproof and impact resistant. Package includes mounting hardware, brackets, wiring harness, and rock guards to protect each squadron’s lens when not in use. 4,600 lumens per light.
Includes:
(2) Squadron-R Pro® LED Lights
(2) Mounting Brackets w/Hardware
Wiring Harness
Optics Pattern – Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Two is always better than one, right? We think so, which is why we’re offering a pair of Squadron-R Pro LED auxiliary lights with wiring harness all in a neat little package. Our Squadron® Pro packs 4,600 Lumens at 40 watts that will truly annihilate the night. The Squadron Pro now features a variety of Cree LEDs to provide a 20% more reach, with the same power consumption! The Squadron-R Pro’s light weight and powerful capabilities make it the ideal companion for all of your late night off-roading adventures! Relish high-performance and durability with nearly 50,000 hours of auxiliary LED light, optimized for a more traditional LED experience and aftermarket bumper featuring a 4” round hole.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color Specifications:
Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.5″ x 2.77″ x 3.5″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
UPC 819314021850
