Description

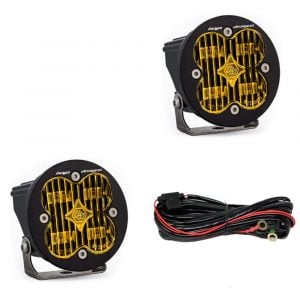

Baja Designs 247815 Squadron-R round SAE (street legal) Amber Wide Cornering fog driving lights are a race proven truck, ATV, UTV, off-road lighting solution for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron lights are waterproof and impact resistant. Package includes mounting hardware, brackets, wiring harness, and rock guards to protect each squadron’s lens when not in use.
Includes:
(2) Squadron® SAE LED Lights
Mounting Brackets
Wiring Harness
Optics Pattern- Wide Driving: The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Brand new for Baja Designs is our SAE -certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same, the pattern and circuitry are optimized in order to give our SAE light a street-legal punch! We’ve put this light through rigorous tests so you can be assured that it’s a serious upgrade to LED, HID, and Halogen factory fog lights.
BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Share
Share on Facebook
Tweet
Pin it
Send email
SQUADRON-R SAE LED AUXILIARY LIGHT POD PAIR
5.0 star rating
1 Review
SKU: 247815
$294.95
Starting at 0% APR or $25/mo with Affirm.
Learn more
available for orders between $50 – $2,000 ⓘ
LIGHT PATTERN
Wide Cornering
Color*
Clear
Amber
All LED products are experiencing 8 week average lead times due to supply chain hurdles. We are shipping orders as quickly as possible.
ADD TO CART
Product Type Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
Description Round; Wide Cornering; Amber; Pair
Beam Pattern Wide Cornering
Lens Color Amber
Lighting Modes Beam
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 2,480
Wattage (W) 22
Amperage Rating (A) 1.6
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In
Dimensions
Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 0.75
Standards & Compliance
Street Legal Yes
DOT Approved Yes
Standards/Compliance (SAE) SAE Standard J583
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
UPC 819314029849
