Description

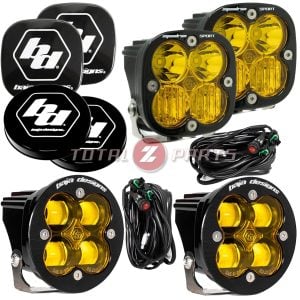

1 pair of Baja Designs Squadron Sport Amber Driving/Combo Pod Lights with Rock Guards, Mounting Brackets/Hardware & Wiring Harness, and 1 pair of Squadron-R (3.5-inch round) Amber SAE (street legal) LED Pod Lights with Rock Guards, Mounting Brackets/Hardware & Wiring Harness. Squadron series lights are a race proven truck, ATV, UTV, off-road lighting solution for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron lights are waterproof and impact resistant.
Includes:
(2) Squadron® Sport Clear Driving/Combo LED Lights
(2) Black Snap-On Rock Guards for Squadron Sport
(2) Squadron-R® Amber SAE Round LED Lights
(2) Black Snap-On Rock Guards for Squadron-R
(4) Mounting Brackets w/Hardware
(2) Wiring Harness
Squadron SAE Optics Pattern – Dust/Fog (Zone 1): illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Squadron Sport Optics Pattern – Driving/Combo (Zone 3): Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Two is always better than one, right? Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies. The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application. Limited Lifetime Warranty is included for the ultimate in purchase protection.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Squadron Sport Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Squadron SAE Specifications (per light):
Amperage Rating (A) 2.1
Average Rated Life (hr.) 49930
Beam Pattern SAE Fog
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2420
Description Round; SAE Fog; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Forward Projecting
Lighting Type Cree LED
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
Wattage (W) 29
Wiring Harness Included Yes
