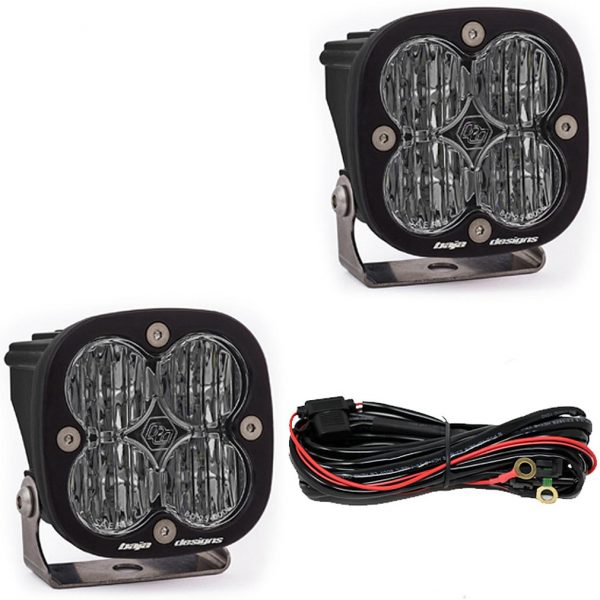

Baja Designs 257805 Squadron SAE (street legal) fog driving lights are a race proven truck, ATV, UTV, off-road lighting solution for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron lights are waterproof and impact resistant. Package includes mounting hardware, brackets, wiring harness, and rock guards to protect each squadron’s lens when not in use.
(2) Squadron® SAE LED Lights
Optics Pattern- Wide Driving: The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

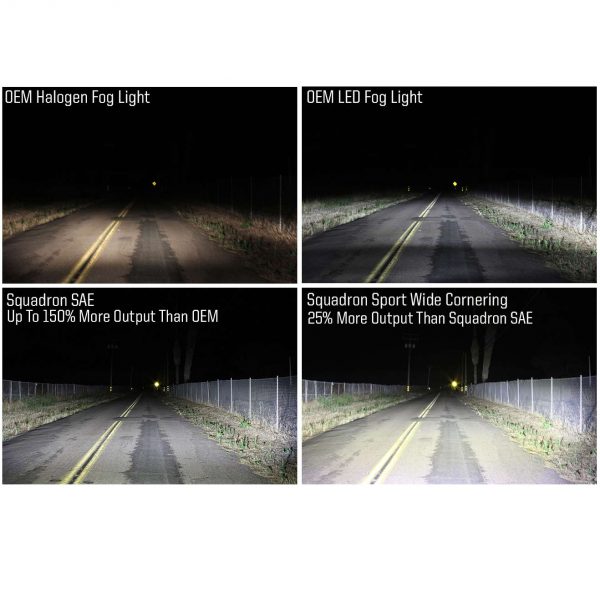

Brand new for Baja Designs is our Squadron SAE certified light. This light is based on our popular Squadron series lights. While there are many visual characteristics that stayed the same, the pattern and circuitry are optimized in order to give our SAE lights a street-legal punch! We’ve put this light through rigorous testing to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights found on most road vehicles today.
We have packed 2,480 lumens, utilizing four powerful LEDs into a small compact package that you can fit almost anywhere you need the light. We also know the weather does not stop you, as the Squadron SAE has our patented MoistureBlock™ technology that makes them waterproof to the elements.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens: 2,480 Utilizing 4 Cree LEDs
Compliance Standard: SAE Standard J583
Wattage/Amps: 22W / 1.6A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
