Description

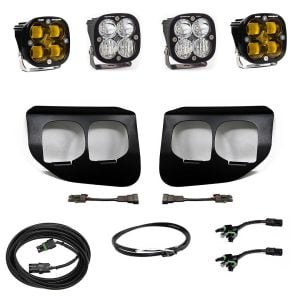

Baja Designs Squadron SAE Pro Clear/Amber LED Fog Pocket Kit (with Upfitter harness). Fits 2020-2022 Ford F-250 / F350 Super Duty trucks. Includes two newly redesigned 2023 Amber Squadron SAE (Street Approved, Road Legal), and 2 Squadron Pro’s in Clear Driving/Combo pattern.
Note: This kit includes “Upfitter” harnesses which do not have built in switches and are meant for wiring to your own existing auxiliary switches, or a switching system such as sPOD.
Manufacturer’s Description:
The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your Super Duty 20-On! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two Squadron lights on each side. This kit is Utilizing our newly released SAE compliant fog lights on the outside, controlled by the factory fog switch, and a pair of driving/combo lights inside, operated by a secondary harness. If you’re looking to add not only safety but lighting performance this is your kit!
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Detailed Specs:
INCLUDED WITH KIT:
SKU: 490003
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
UPC 810031742585
2020, 2021, 2022
