Description

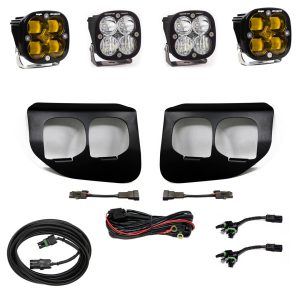

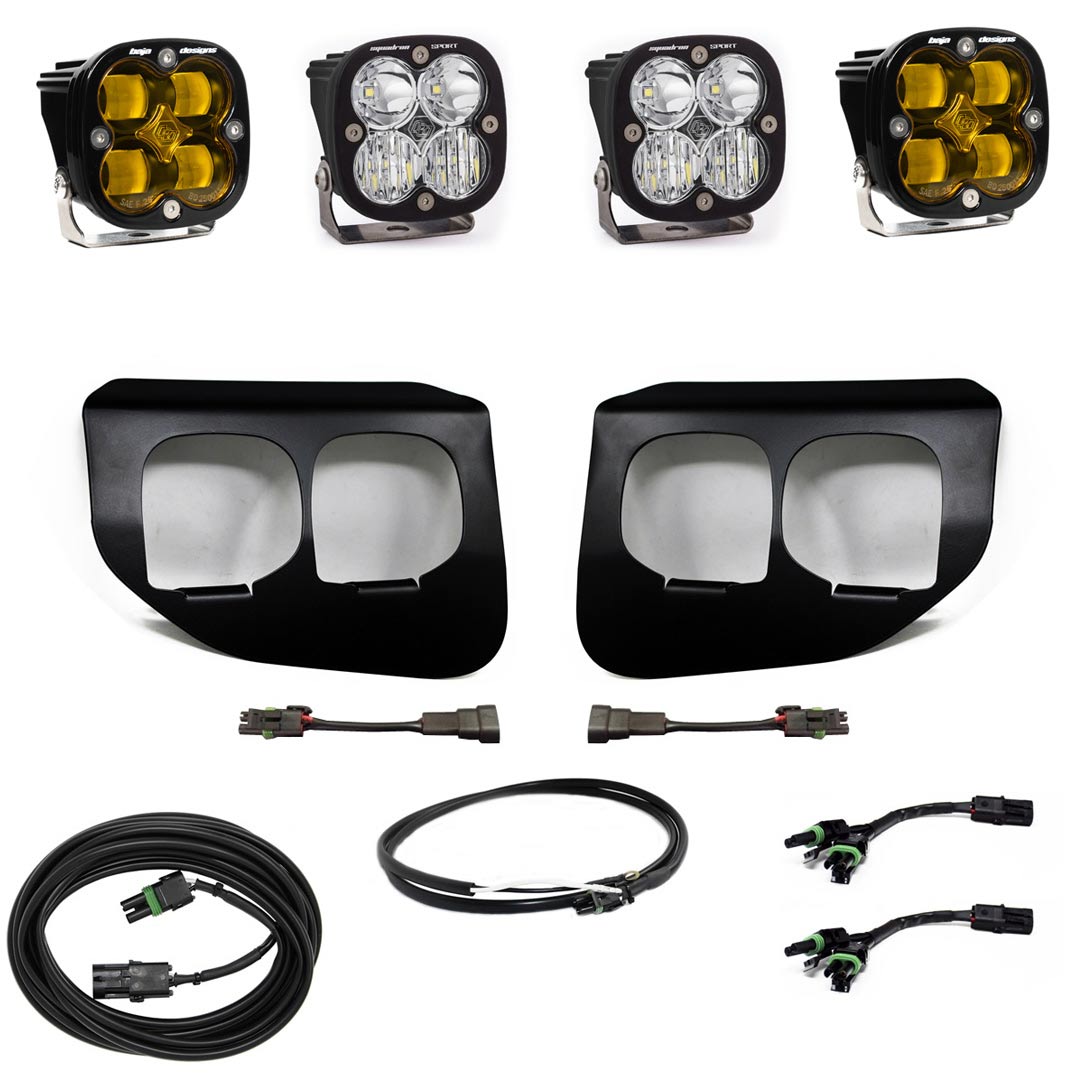

Baja Designs Squadron SAE Sport Clear/Amber LED Fog Pocket Kit (with Toggle switch harness). Fits 2020-2022 Ford F-250 / F350 Super Duty trucks. Includes two newly redesigned 2023 Amber Squadron SAE (Street Approved, Road Legal), and 2 Squadron Sports in Clear Driving/Combo pattern.
Manufacturer’s Description:
Baja Designs fog pocket kit for the Ford F-250/350 Super Duty (’20-22)is the perfect mix of high-quality on and off-road performance. This kit uses a combination of our next generation Squadron® SAE lights (controlled by the factory fog switch) and Squadron Sports operated by either a toggle switch or factory upfitter system. Keeping you safe on the road or trails, the Squadron® SAE is engineered with all-new aspheric projector optics and advanced LED technology providing a performance increase in luminous flux of 56% over our previous generation SAE model and illuminates Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. If selected, the included upfitter wiring harness is designed to be used in conjunction with factory upfitter systems, and sPOD / Switch Pros units. If you’re looking to add not only safety but lighting performance this is your kit! USPTO Reg No. 5,766,659
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Detailed Specs:
INCLUDED WITH KIT:
SKU: 550003
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
