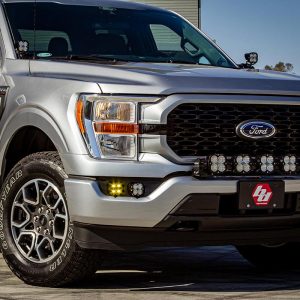

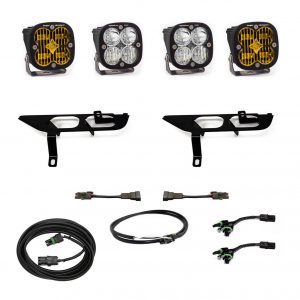

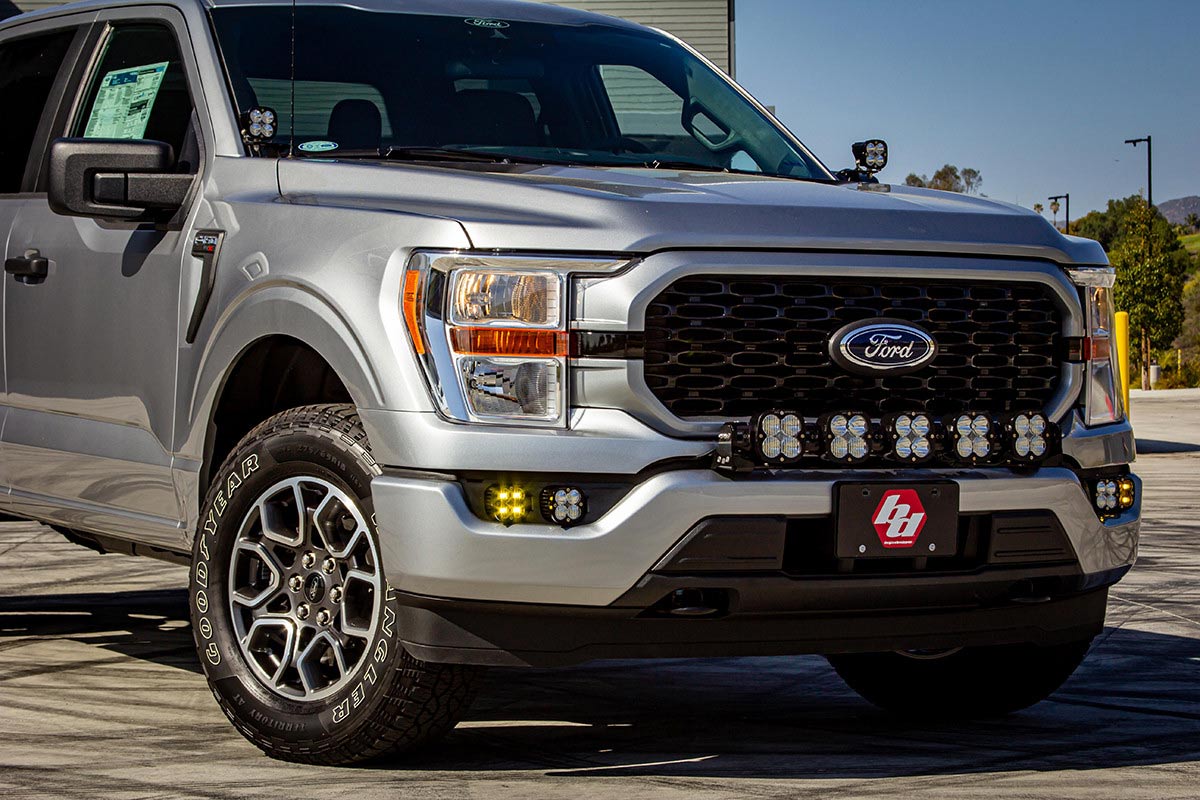

Baja Designs Squadron Amber/Clear SAE Fog Pocket LED Lights Kit for 2021-2022 Ford F-150 trucks. Includes fog pocket mounting brackets, upfitter wiring, (2) and 4 Squadron series lights.
Note: this version of the kit includes “upfitter” harnesses, which have no built in switches and are meant for wiring to existing switches (either auxiliary switches in your truck, or a switching system such as sPOD).
This kit is perfect if you are looking to spice up your Ford F-150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Amber SAE and a set of Squadron Sports in driving combo lens pattern. This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our upfitter wiring harness to utilize the upfitter switches.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
SKU: 257815
Specifications
Product Type Squadron SAE LED Light Pod Pair w/ Wiring Harness
Description Wide Cornering; Amber; Pair
Beam Pattern Wide Cornering
Lens Color Amber
Lighting Modes Beam
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 2,480
Wattage (W) 22
Amperage Rating (A) 1.6
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In
Dimensions
Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 0.75
Standards & Compliance
Street Legal Yes
DOT Approved Yes
Standards/Compliance (SAE) SAE Standard J583
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
SKU: 550003
Specifications
Product Type Squadron Sport LED Light Pod
Description Driving/Combo; Clear
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology LED
Lighting Quantity 4
Brightness (Lumens) 3,150
Wattage (W) 26
Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included No
Overvoltage Protection Built-In
Dimensions
Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 0.75
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
2021, 2022 Ford F150 Trucks
XL, XLT, Lariat, King Ranch, Platinum, Limited
