Description
Baja Designs Squadron Sport 3-inch LED pod lights pair (clear spot beam lens) & rock guard covers, with KC Hillites ditch light brackets for 2018-2026 Jeep Wrangler JL/4XE and 2020-2026 Jeep Gladiator JT. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
3,162 raw lumens per light.
PLEASE NOTE: The included ditch brackets do not fit Jeep Gladiator Mojave, 392, or Sand Runner Editions. We carry separate brackets for those models and have those kits listed separately.
Lens Pattern:
Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

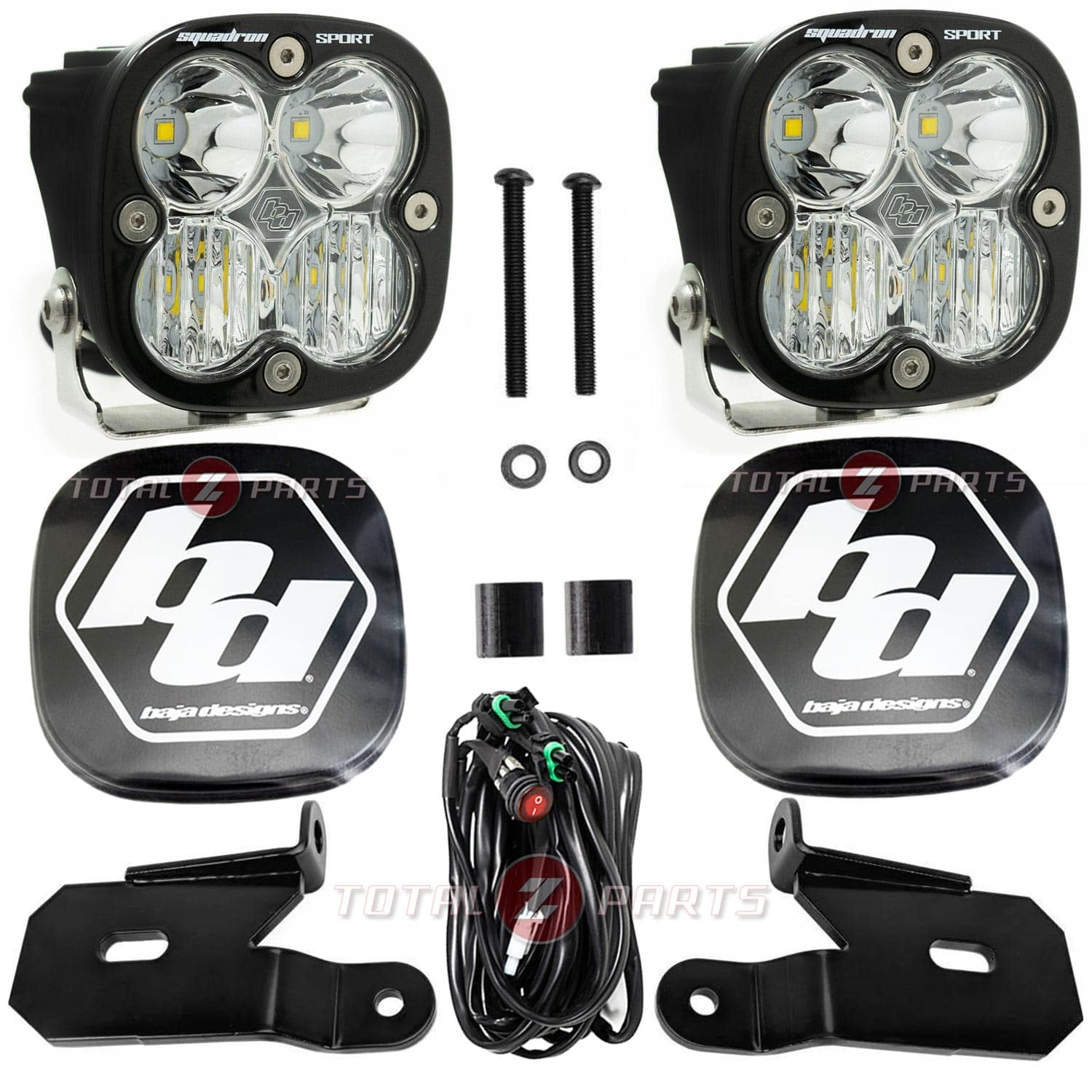

PARTS INCLUDED
(2) Squadron Sport LED Light
(2) Baja Designs snap-on black rock guards (with logo)
(1) On/Off Wiring Harness (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) 2018-Current Jeep Wrangler JL/4xe & Gladiator JT A-Pillar/Cowl Brackets
(2) Aluminum Spacers
(2) M6-1.0 X 55mm Button Head Cap Screws
(2) M6 Flat Washers
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W) 30.360
Wiring Harness Included Yes
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 3162
Description Spot; Amber; Pair
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
