Baja Designs® Squadron Sport Amber Wide Cornering LED Ditch Lights Kit (05-15 Tacoma)
Baja Designs® Squadron™ SAE LED Fog Lights Pair Wide Cornering
Baja Designs® Squadron Sport Clear Driving/Combo LED Ditch Lights Kit (05-15 Tacoma)
Baja Designs® Squadron Sport Clear Driving/Combo LED Ditch Lights Kit (05-15 Tacoma)

Baja Designs® Squadron Sport Amber Driving/Combo LED Ditch Lights Kit (05-15 Tacoma)


Free Shipping
Best Price Guarantee


In Stock

Est. on or before Thu 12/07

SKU: 557813-10213 Categories: | | | Tag:

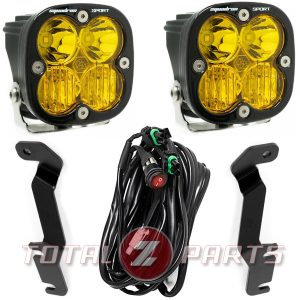

Baja Designs 557813 Squadron Sport Amber LED Pod Lights Pair (Driving/Combo Pattern) with Grimm Offroad A-Pillar/Ditch Lights Brackets for a 2005-2015 Toyota Tacoma trucks. Includes wire harness, hardware, baja designs mounting brackets, and Grimm offroad hood hinge brackets. Each Squadron light measures 3 inches x 3 inches from the front, and 2.77 inches deep.

We also sell this kit in the following variations:

Squadron Pros w/ Amber Driving/Combo lenses

Squadron Pros w/ Clear Driving/Combo Lenses

Squadron Sports w/ Amber Wide Cornering Lenses

Squadron Sports w/ Clear Driving/Combo Lenses

(2) Squadron® Sport LED Lights
(2) Grimm Offroad hood hinge brackets for 05-15 Toyota Tacoma
Mounting Brackets
Wiring Harness

Optics Pattern- Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Hood Hinge Bracket Details (from manufacturer):
Grimm Offroad’s Hood Hinge Light Brackets allow mounting of auxiliary lights to the lower A-pillar/cowl location of your 2005-2015 Toyota Tacoma. The low-profile light brackets mount using the stock hood hinge bolt locations and require no modifications for installation. Compatible with lights up to 3 inch in diameter, these high strength brackets allow fitment of most aftermarket pod-style lights.

  • Mounts an auxiliary light in the lower A-pillar/cowl location on each side of the vehicle
  • Direct fit for the 2005-2015 Toyota Tacoma
  • Compatible with lights up to 3 inch diameter
  • Laser Cut and CNC formed from 7ga high-strength steel
  • Black Semi-Gloss Powder Coat Finish
  • No increase in wind noise or whistling
  • Made in the USA
  • Limited Lifetime Warranty

Additional information

Weight 5 lbs
Dimensions 12 x 10 x 8in

Baja Designs



Make Model Year
Toyota Tacoma 2005 - 2015
