Description

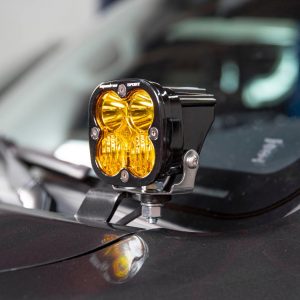

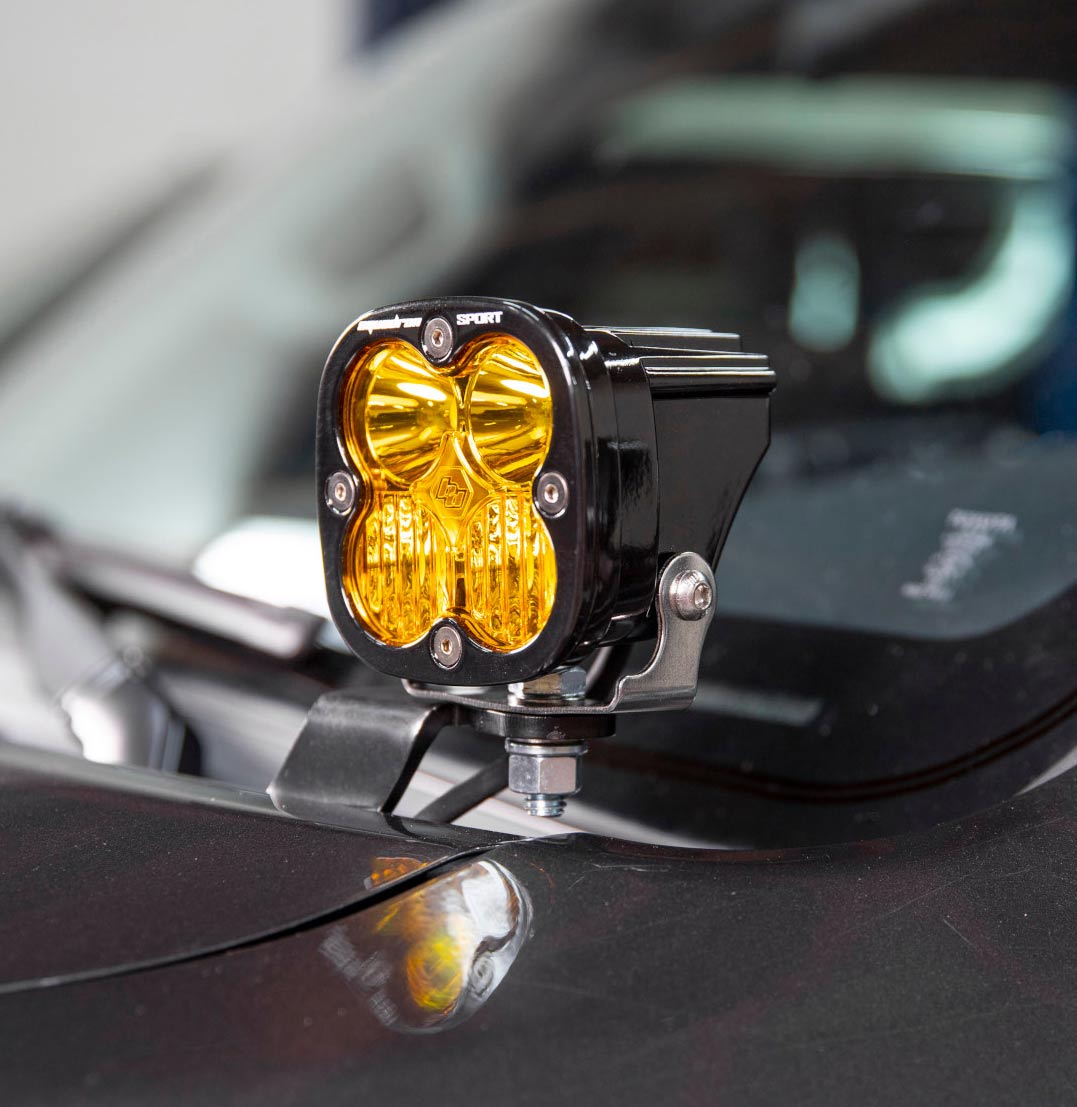

Baja Designs 557813 Squadron Sport Amber/Yellow LED Pod Lights Pair (Driving/Combo Pattern) with Grimm Offroad A-Pillar/Ditch Lights Brackets for a 2010-2023 Toyota 4Runner. Includes wire harness, hardware, baja designs mounting brackets, and Grimm offroad hood hinge brackets. Each Squadron light measures 3 inches x 3 inches from the front, and 2.77 inches deep.
We also sell this kit in the following variations:
Squadron Sports w/ Amber Wide Cornering Lenses
Squadron Sports w/ Clear Lenses (Driving/Combo or Spot Pattern)
Squadron Sports w/Clear Wide Cornering Lenses
Squadron Pro Kit (available with clear or amber lenses)
Includes:
(2) Squadron® Sport LED Lights
(2) Grimm Offroad hood hinge brackets for 10-22 4Runner
Mounting Brackets
Wiring Harness
Optics Pattern- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Grimm Offroad’s Hood Hinge Light Brackets allow mounting of auxiliary lights to the lower A-pillar/cowl location of your 2010-2022 Toyota 4Runner. The low-profile light brackets mount using the stock hood hinge bolt locations and require no modifications for installation. Compatible with lights up to 3 inch in diameter, these high strength brackets allow fitment of most aftermarket pod-style lights.
Mounts an auxiliary light in the lower A-pillar/cowl location on each side of the vehicle
Direct fit for the 2010-2023 Toyota 4Runner
Compatible with lights up to 3 inch diameter
Laser Cut and CNC formed from 7ga high-strength steel
Black Semi-Gloss Powder Coat Finish
No increase in wind noise or whistling
Made in the USA
Limited Lifetime Warranty
