Description
Package includes 1 pair of Baja Designs Squadron Sport 557813 Amber Driving/Combo lights, 1 pair of Baja Designs S1 Amber Wide Cornering, and 1 pair of Baja Designs S1 Clear Spot Beam. The Squadron & S1 series lights are a race proven truck, ATV, UTV, off-road lighting solution for enthusiasts who require durability and performance in a wide range of weather and driving conditions. Squadron & S1 lights are waterproof and impact resistant. Package includes mounting hardware, brackets, and wiring harnesses.
Includes:
(2) Squadron® Sport LED Lights
(4) S1 LED Lights (2 Amber Wide Cornering, 2 Clear Spot Beam)
(2) Squadron Mounting Brackets w/Hardware
(1) Squadron Wiring Harness
(1) S1 Wiring Harness
(4) S1 Mounting Brackets w/Hardware
Squadron Sport
Optics Pattern- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
S1
Optics Pattern- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Squadron Sport Specifications (per light):
Lumens: 3,162 Utilizing 4 LEDs
Wattage/Amps: 30.36W / 2.2A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

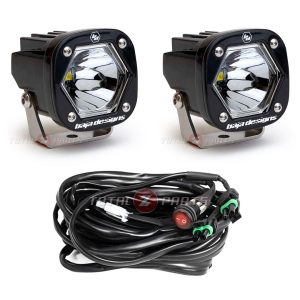

S1 Specifications (per light):
Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Spot; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod Pair w/ Wiring Harness
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included Yes
Available Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
