Description
Baja Designs Squadron Sport 3-inch LED pod lights pair (amber spot beam lens) with KC Hillites ditch light brackets for 2021-2025 Gen 3 Ford F-150, F-150 Raptor, and F-150 Lightning. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
3,162 raw lumens per light.
**DISCLAIMER: Ditch brackets may come into contact with the vehicle’s trim, potentially causing slight creasing. While minor trimming of the plastic trim can help prevent this, it is not required.
PLEASE NOTE: the photos of the F-150 with the ditch light brackets mounted are showing a different model of lights; the photos of the truck are to demonstrate the mounted position of the included ditch brackets. This kit includes a pair of 3-inch diameter Baja Designs Squadron Sport lights.

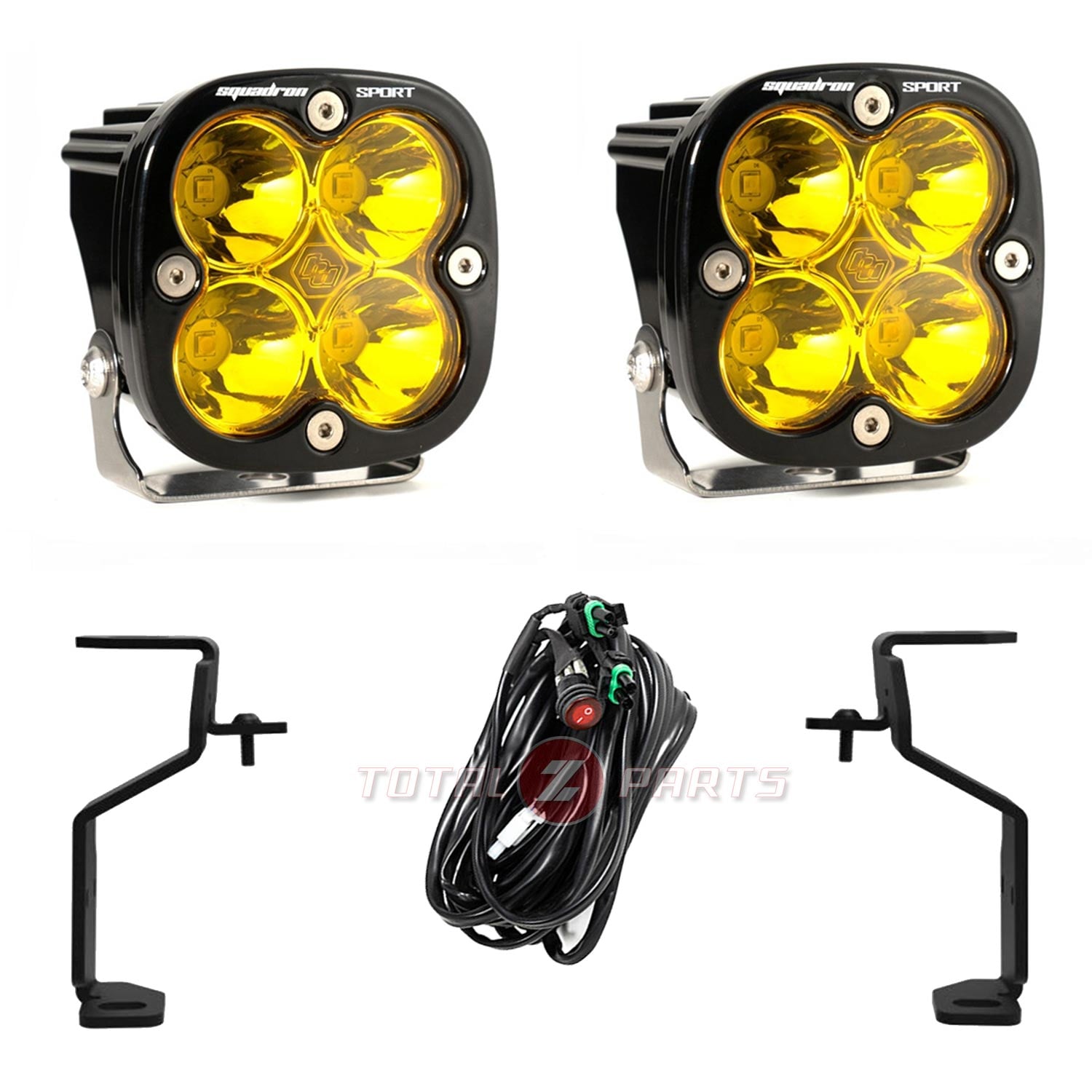

PARTS INCLUDED
(2) Baja Designs Squadron Sport LED Light
(1) On/Off Wiring Harness with illuminated rocker switch (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) KC Hilites Black Powder-Coated Steel A-Pillar Mount Brackets (made from 3/16″ steel) w/Hardware for 21-Up Gen 3 Ford F-150
(2) M6-1.0 X 20mm Screw (for ditch brackets)
(2) M6 Flat Washer (for ditch brackets)
Lens Pattern:
Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Light up the night with Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W) 30.360
Wiring Harness Included Yes
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 3162
Description Spot; Amber; Pair
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
