Description

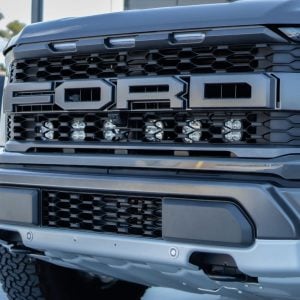

Baja Designs Squadron Sport Behind the Grille Light Kit for a 2021-Up Ford F-150 Raptor or 2024-Up F-150 Raptor 37/R. Includes 6 3-inch squadron sport lights, brackets, and wiring.
Baja Designs Squadron Sport behind-the grille kit for the 2021-on Ford Raptor are designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports in multiple lens configurations, mounting brackets, and hardware. The Squadron Sport offers 3,162 raw lumens each, giving you the power to cut through the darkness and illuminate your favorite trail. With the combination of wide cornering, driving combo and spot lenses, this kit provides light into lighting zones 1-4, making this the ultimate behind-the-grille kit. The off-road light kit comes with all lights, mounting brackets, wiring harness and all necessary hardware. We have also included an upfitter harness that will allow you to tap your lights into the factory upfitter switches. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This kit will not work with adaptive cruise control relocation kits.

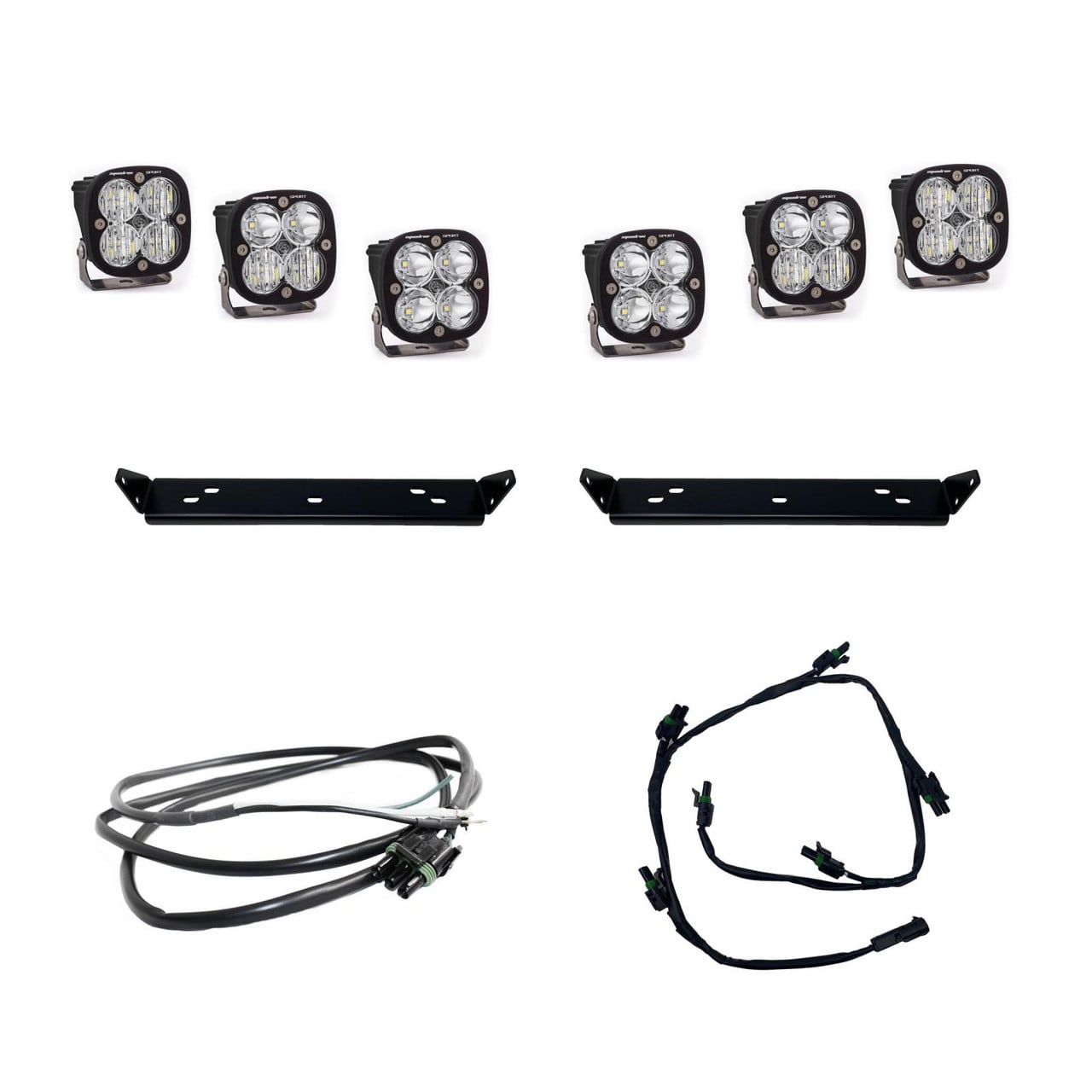

Kit Includes:
(2x) Squadron Sport – Wide Cornering Clear
(2x) Squadron Sport – Driving Combo Clear
(2x) Squadron Sport – Spot Clear
(2x) Behind-the-Grille mounting brackets
(1x) Wiring Harness
(1x) Upfitter Wiring Harness
All Necessary Mounting Hardware
Squadron Sport Specifications (per light):
3,162 raw lumens (per Squadron Light)
30W/2.2A
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per Squadron Sport light):
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
