Description

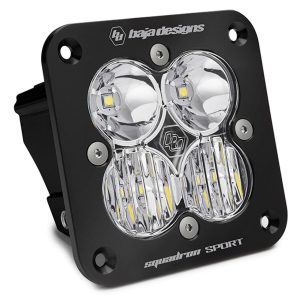

Baja Designs’ 551003 Squadron Sport Flush Mount LED Light Pod in Clear Driving/Combo Pattern. SOLD INDIVIDUALLY. The flush mount bezel allows you to mount in a bumper cutout or a mounting hole that suits a flush mounted, recessed fog light.
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117. We have the harness available for purchase separately.
Beam Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
With a sleek black gloss appearance, our Squadron Sport LED flush mount light from Baja Designs will allow you to light up the night. Don’t let the compact size of these 3” light pods fool you. The black flush mount housing is perfect for any application where you need a flush mount solution auxiliary lighting. While compact in size the Squadron Sport outshines the competition through both appearance and performance using next-generation LEDs pushing out 3,162 lumens. Limited Lifetime Warranty for the ultimate in purchase protection. USPTO Reg No. 5,766,659
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 551003
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Flush Mount; Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport Flush Mount LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
