Description

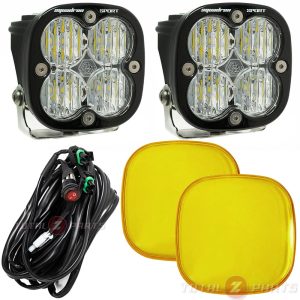

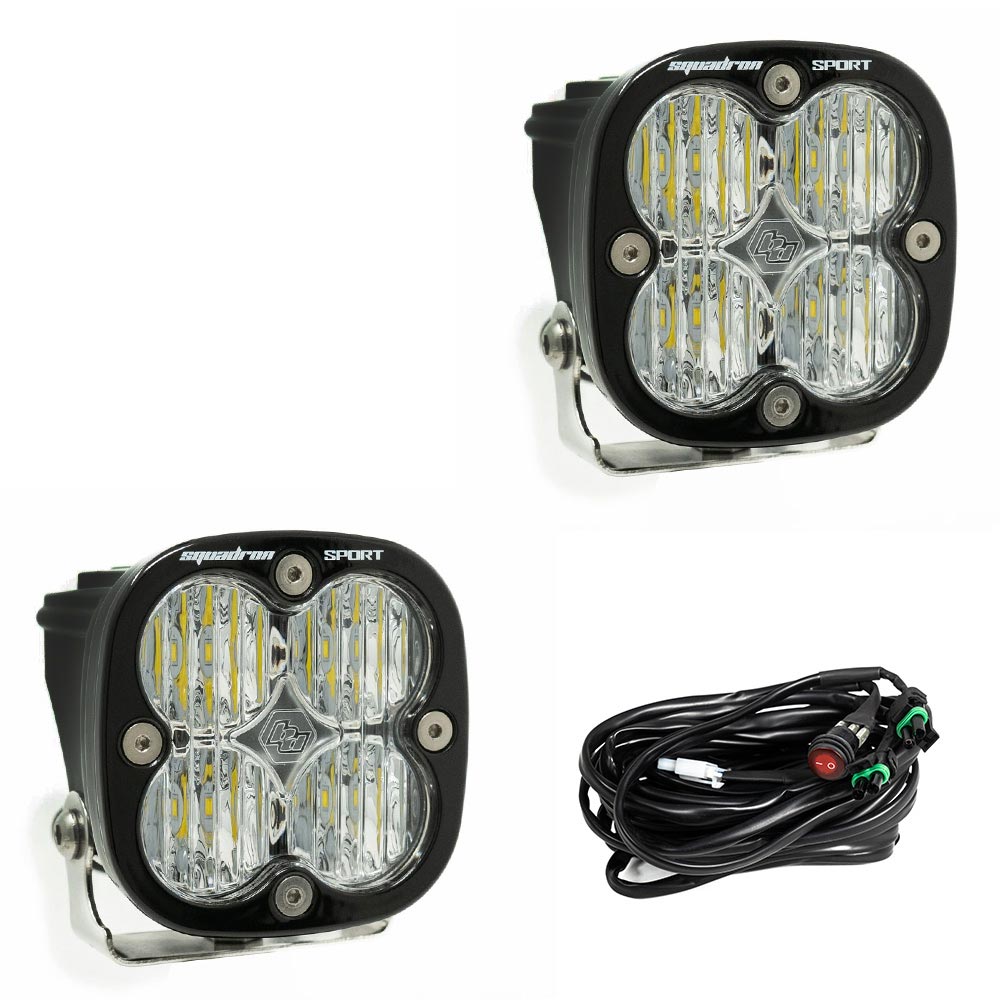

Baja Designs 557805 Squadron Sport LED Pod Lights Pair (Wide Cornering Pattern) with Amber Rock Guard Covers, Wire Harness, Hardware, & Mounting Brackets. Each Squadron light measures 3 inches x 3 inches from the front, and 2.77 inches deep.

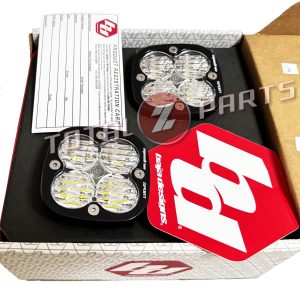

Includes:
(2) Squadron® Sport LED Lights
(2) Amber rock guards (transparent, can be used while lights are on)
Mounting Brackets
Wiring Harness
Optics Pattern- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Two is always better than one, right? Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies. The Squadron® Sport utilizes 4 LEDs producing an impressive 3,162 lumens at 30.36 watts per light, making it ideal for near field, side/backup and scene lighting application.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 3162
Description Wide Cornering; Clear
Housing Color Black
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
