Description

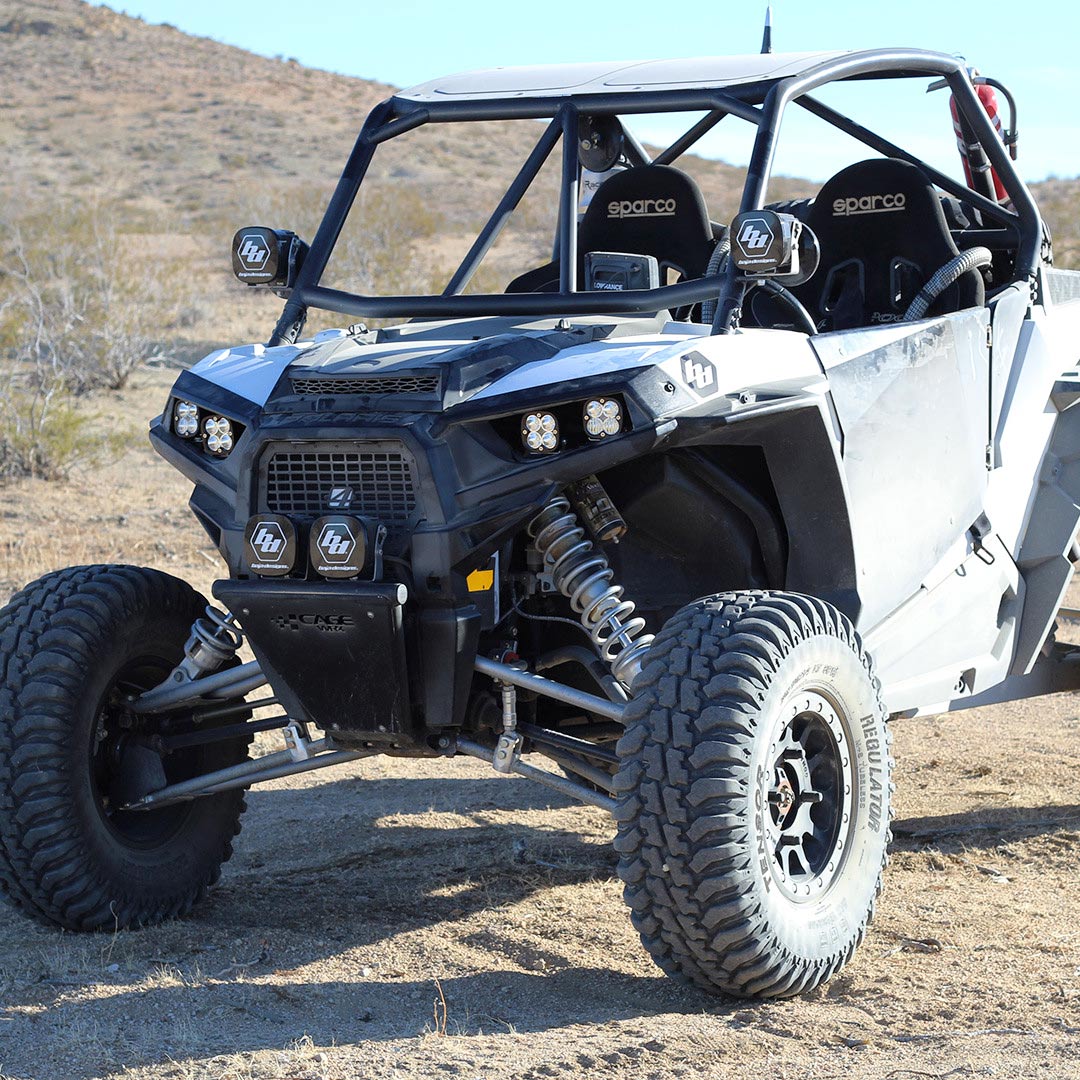

Baja Designs Squadron Sport Headlight Kit for 2018-Up Polaris RZR RS1, 2014-Up RZR XP 1000, 2018-Up RZR XP Turbo-S (see below for full list of models). This headlight kit uses 4 Squadron Sport LED lights (2 on each side), and includes custom black powder coated vehicle specific mounting brackets with all necessary hardware & wiring.
Separate yourself from the pack with the Baja Designs Polaris RZR XP1000/RS1 “Sportsmen” Headlight Kit (2014 – Current). This kit utilizes four Squadron Sports (3150 lumens each). The need for front bumper lighting or roof mounted light bars are a thing of the past. This plug and play mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use your factory switch and mounting hardware.
(2) Squadron Sport Clear Spot
(2) Squadron Sport Clear Driving/Combo
(2) Headlight Mounting Brackets
(2) Wiring Adapters
All necessary hardware
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:
SKU: 550001
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Spot; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
SKU: 550003
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Fits:
Polaris RZR RS1 2018-2021
Polaris RZR Turbo S 2021-2021
Polaris RZR Turbo S Lifted Lime LE 2021-2021
Polaris RZR Turbo S Velocity 2021-2021
Polaris RZR Turbo S4 2021-2021
Polaris RZR Turbo S4 Lifted Lime LE 2021-2021
Polaris RZR Turbo S4 Velocity 2021-2021
Polaris RZR XP 1000 2020-2022
Polaris RZR XP 1000 EPS 2014-2019
Polaris RZR XP 1000 EPS Desert Edition 2015-2015
Polaris RZR XP 1000 EPS DYNAMIX Edition 2019-2019
Polaris RZR XP 1000 EPS Fox Edition 2015-2015
Polaris RZR XP 1000 EPS Gold Matte Metallic LE 2017-2017
Polaris RZR XP 1000 EPS High Lifter Edition 2015-2019
Polaris RZR XP 1000 EPS Ride Command Edition 2018-2019
Polaris RZR XP 1000 EPS Trails and Rock Edition 2018-2019
Polaris RZR XP 1000 EPS Velocity Blue LE 2017-2017
Polaris RZR XP 1000 High Lifter Edition 2020-2021
Polaris RZR XP 1000 Limited Edition 2020-2020
Polaris RZR XP 1000 Premium 2020-2022
Polaris RZR XP 1000 Trails & Rocks 2021-2022
Polaris RZR XP 1000 Trails and Rock Edition 2020-2021
Polaris RZR XP 4 1000 2020-2021
Polaris RZR XP 4 1000 EPS 2014-2019
Polaris RZR XP 4 1000 EPS DYNAMIX Edition 2019-2019
Polaris RZR XP 4 1000 EPS High Lifter Edition 2017-2019
Polaris RZR XP 4 1000 EPS Ride Command Edition 2018-2019
Polaris RZR XP 4 1000 High Lifter Edition 2020-2021
Polaris RZR XP 4 1000 Limited Edition 2020-2020
Polaris RZR XP 4 1000 Premium 2020-2021
Polaris RZR XP 4 Turbo S 2019-2020
Polaris RZR XP 4 Turbo S Velocity 2020-2020
Polaris RZR XP Turbo S 2018-2020
Polaris RZR XP Turbo S Velocity 2020-2020
