Description
Baja Designs XL 7-light Linkable LED Light Bar Kit made to fit a Prinsu or Sherpa roof rack on the following vehicles: 2010-24 Toyota 4Runner, 2007-14 FJ, 2005-23 Tacoma, 2007-21 Tundra. 22,134 raw lumens

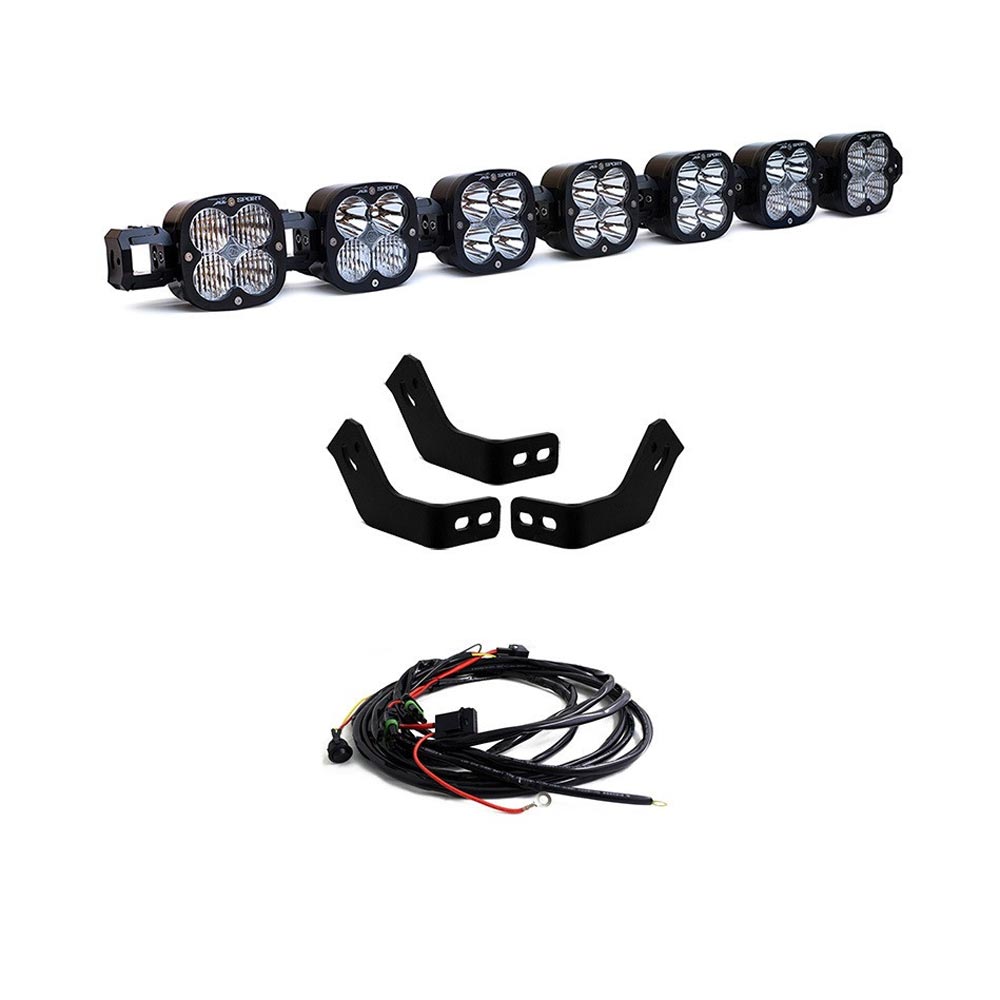

Includes:
(1) XL 7-light Linkable LED Bar
(7) Black snap-on rock guards
Black powder coated mounting brackets
Wiring harness with rocker switch
Hardware
So you’ve got either a Prinsu or a Sherpa Equipment Co. roof rack and you want to mount an LED light bar? We’ve got you covered! These racks come with the option for a 40-inch light bar cutout, for users with this option we’ve created a turn-key kit that includes everything you need to get a performance-based lighting solution. This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories, we include brackets that are proprietary to Prinsu’s rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all-inclusive kit that will compliment your Prinsu or Sherpa roof racks along with giving you some serious nighttime lighting performance.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
NOTE: Installation of any roof-mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories. If you did not purchase a rack with the 40-inch light bar cutout option we have included instructions on how to cut your existing panel.
Detailed Specs
Dimensions
Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 45.34
Specifications
Amperage Rating (A) 14
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 22,134
Description 7XL Sport; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 7
Lighting Modes Beam
Lighting Quantity 28
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 182
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
