Description
Baja Designs XL80 4.43-inch LED pod lights pair (amber driving/combo lens) with wiring harness, surface mount brackets/hardware, and a pair of Reflex light actuators w/wiring harness for on-the-fly control of your lights’ pitch angle.
PLEASE NOTE: The lights do not come with any vehicle specific brackets. The included brackets are universal surface mount brackets, which are designed to bolt to a flat surface. Refer to the dimensions image in image gallery for exact measurements with the surface mount brackets attached.
9,022 raw lumens per xl80 light.
PARTS INCLUDED
(2) XL80 LED Light
(1) On/Off Wiring Harness (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2x) Reflex Actuator Kit (0.14A/2.0W at 13.8V per actuator)
(1x) Reflex Actuator Harness w/Rocker Switch (for controlling Reflex actuators)
Reflex Light Actuator Features:
- Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
- Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

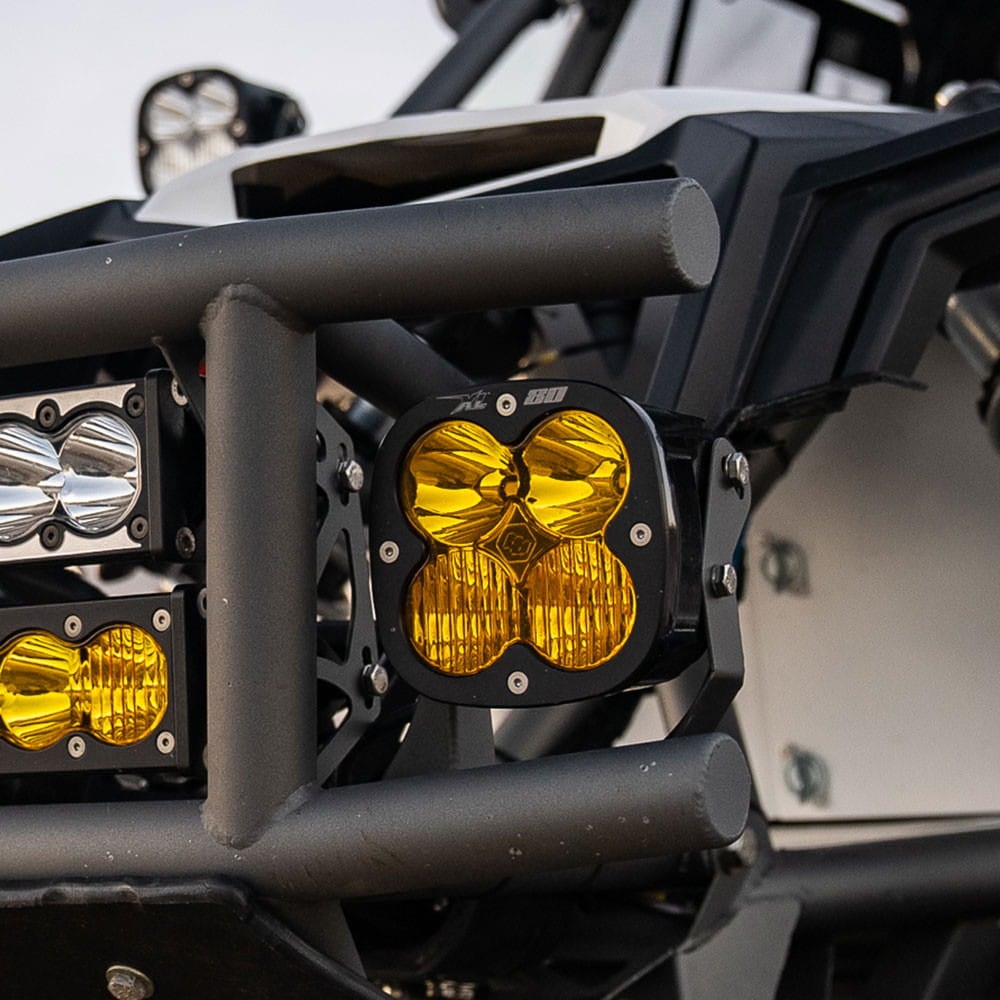

The Baja Designs XL80 auxiliary LED light pair elevates your off-road lighting with superior visibility and brightness. Equipped with our trademarked high-speed spot reflectors, the XL80 delivers a longer and wider beam pattern. Utilizing next-generation LED technology, it offers 18% greater distance and increased intensity compared to our previous model, pushing an impressive 9,022 raw lumens per light. This makes it perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.
Similar to the XL Pro model, the XL80 features a 20% dimming option, a powder-coated housing, and an anodized bezel. This two-light kit includes a wiring harness and all necessary mounting hardware, ensuring quick and easy installation. Designed for those seeking reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
XL80 Driving Combo (Clear): ELS 62°/ 5.0/ 392’/ 8278
XL80 Wide Cornering (Clear): ELS 66⁰/ 6.1/ 202’/ 8063
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs (per light):
Lighting Quantity 4
Lighting Modes High Beam/Dimming Feature (20%)
Light Quantity 2
Lens Material Hardcoated Polycarbonate
Lens Color Amber
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Housing Color Black
Description Driving/Combo; Clear; Pair
Brightness (Lumens) 9022
Bezel Material Powder Coated Cast Aluminum
Beam Pattern Driving/Combo
Average Rated Life (hr.) 49,930
Amperage Rating (A) 5.500
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Wiring Harness Included Yes
Wattage (W) 75.900
Universal or Specific Universal
Product Type XL80 LED Light Pod Pair w/ Wiring Harness
Overvoltage Protection Built-In
Mounting Hardware Material Stainless Steel
Dimensions
Weight (lbs.) 2.450
Length (in.) 4.430
Height (in.) 4.430
Depth (in.) 3.650
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing))
