Description

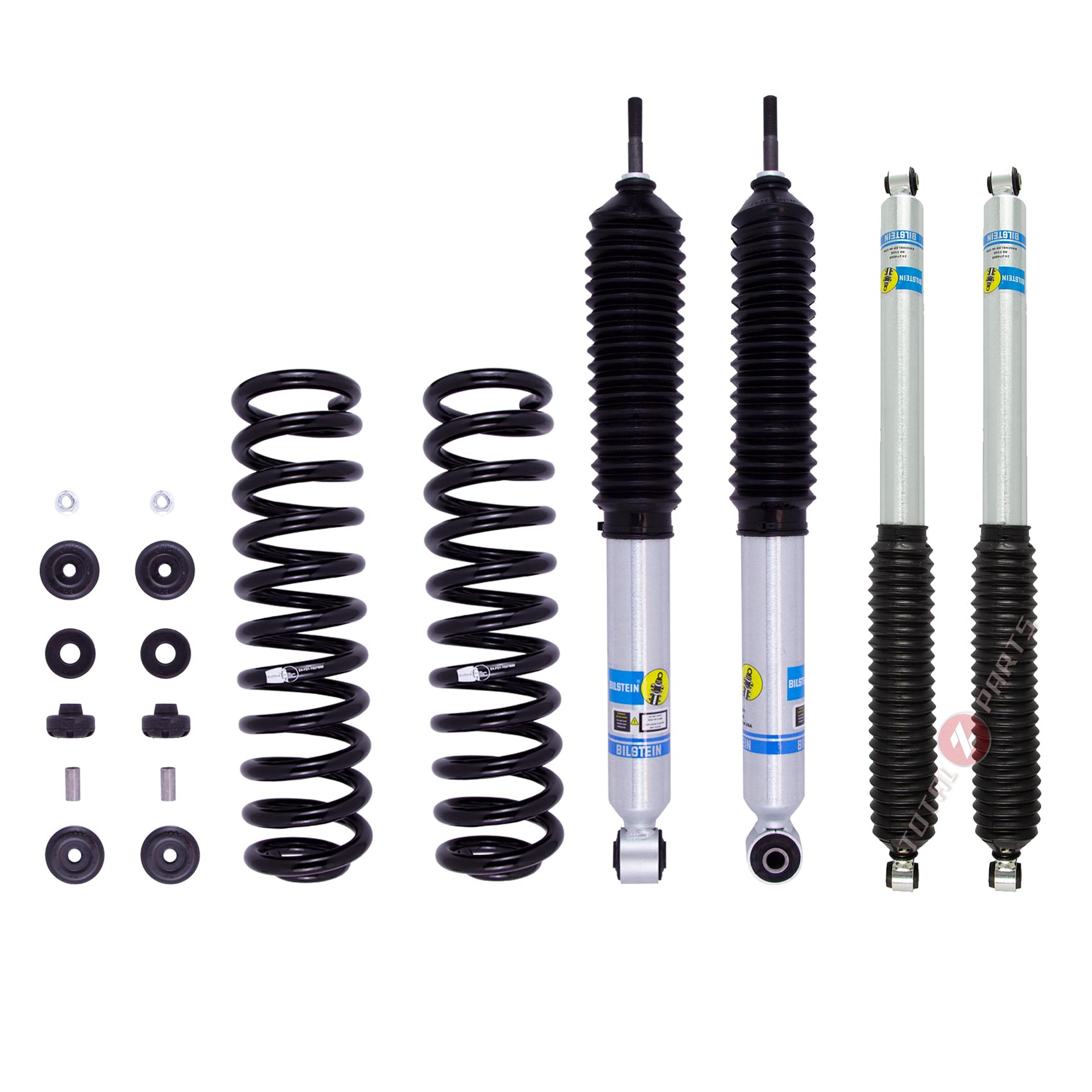

Bilstein B8 5112 Suspension Leveling Kit, Rear B8 5100 Shocks, and B8 5100 Steering Damper/Stabilizer for Ford F-250 Super Duty 2017-2025 (6.7L, 4WD), F-350 Super Duty 2017-2025 (6.7L, 4WD). Includes 2 front coil springs and 2 5100 series shocks. The leveling kit is intended to raise the front of your truck by about 2 inches. The rear shocks support between 0-1 inches of lift.
Important:
Does not fit Tremor package
Adjustable track bar recommended
Heavy aftermarket bumpers, winches, and other heavy accessories can lower ride height
Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.
Specs for front shocks:
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Boot Included: E4-SR1-Z001A03
Replacement Mounting Kit: B4-KT1-Z223A02
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
Specs for rear shocks:
Collapsed Length (in): 18.74
Extended Length (in): 31.13
Collapsed Length (mm): 476.0
Extended Length (mm): 790.7
Stroke/travel Length (in): 12.36
Lower Mount Type: Eye 14mm
Upper Mount Type: Eye 16mm
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Boot Included: Black Bellows
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
Specs for Steering Damper:
Collapsed Length (in): 16.93
Extended Length (in): 26.50
Collapsed Length (mm): 430.0
Extended Length (mm): 673.0
Stroke/travel Length (in): 9.57
Lower Mount Type: Cantilever
Upper Mount Type: Eye 12mm
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Boot Included: Black Bellows
Replacement Mounting Kit: B4-KT1-Z279A00
Spring Seat Included: No
Shaft Diameter: 11mm
2024 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2023 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2022 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2021 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2020 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2019 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2018 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
2017 Ford F-250 Super Duty 4WD 2.0″ Front / 0-1″ Rear
