Description
1500 Series Bed Slide (CG1500-8048) by CargoGlide®. This slide out truck bed tray supports up to 1500 lb of weight, and the tray is able to slide 70% out of your truck’s bed. Fits the following Ford, Chevrolet, and GMC trucks with 6″ 9″ short bed.
Ford Super Duty (6ft 9in Short Bed)
F-250 1999-2023
F-350 1999-2023
F-450 2013-2023
Chevy Silverado HD (6ft 9in Short Bed)
Silverado 2500 2020-2023
Silverado 3500 2020-2023
GMC Sierra HD (6ft 9in Short Bed)
Sierra 2500 2020-2023
Sierra 3500 2020-2023
DECKED TRUCK BED SLIDE
The DECKED CargoGlide truck bed sliding tray is a sliding tool box that makes loading, unloading and accessing your tools and gear easy, safe and fast. Never climb into the bed of your truck to retrieve your gear ever again.
The tray rolls on heavy-duty bearings actuated by a single-handed latch which allows you to smoothly slide out and retrieve your tools and materials.
INDUSTRIAL STRENGTH TRUCK BED ORGANIZATION
PROFESSIONAL GRADE
The toughest and most durable bed slide on the market. Built from heavy gauge, powder coated American steel and industrial grade marine plywood (coated with a thermoplastic top sheet), the CargoGlide truck bed slide can take all of the use and abuse of the jobsite and the environment.
Load it up with compressors, welders, tool boxes, you name it. All of your work items slide right out to you every time.
CUSTOMIZABLE TRUCK BED SLIDE
CHOOSE PAYLOAD, EXTENSION, AND DECKED DRAWER SYSTEM COMPATIBILITY
Extension: CargoGlide fits most full-size or midsize trucks and is available in either a 70% or 100% extension (amount the tray slides out of the vehicle bed).
Payload: The tray can carry up to 2,200 lbs—choose between a 1,000 lbs, 1,500 lbs, or a max 2,200 lbs payload (depending on vehicle).
Drawer System Compatibility: One truck bed slide with all your big heavy stuff on top plus two full bed-length, drawers with secured tools and gear sliding underneath = a match made in heaven.
FEATURES
EASY TO USE
Easily slide out up to 2,200 lbs of gear with the flick of a switch. Multiple cargo stops allow you to select just how far out you want it to extend.
HEAVY LOADS ON A SLOPE? NO PROBLEM
Slide thrust bearings keep the loaded tray from binding if parked on an angled slope. These bearings make the CargoGlide roll smoothly no matter how much torque you may put it under.
SECURE CARGO RETENTION

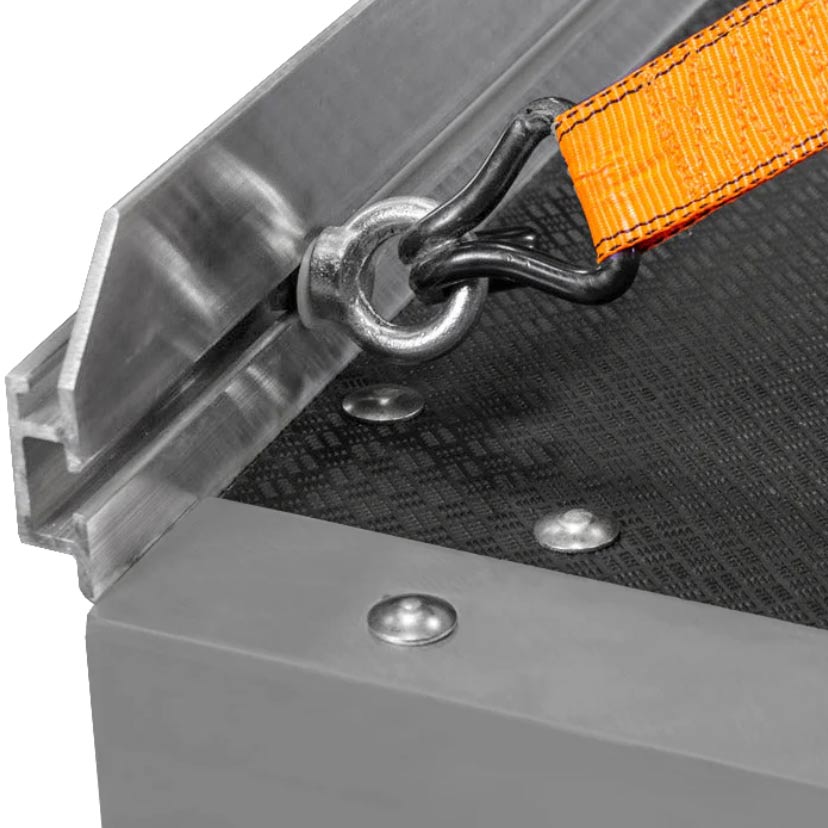

The perimeter of the CargoGlide tray has interior and exterior channels for infinitely adjustable cargo tie down locations. Comes standard with [4] marine grade galvanized tie down loops. Accessory tie downs available for ratchet straps or other webbing to secure your load.
EASY TO INSTALL
30 min. is all you need. CargoGlide comes preassembled. Simply drill according to instructions, install hardware and bolt it down. You only need a couple of drill bits and a socket set.
QUICK FAQ’S
CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size Ford Super Duty or GMC/Chevy 2500/3500 bed truck.
Not compatible with a DECKED Drawer System. Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.
NOTE: Check tailgate clearance before install. Some tailgates don’t lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4″ above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue. All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or [email protected].
Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty
TECH SPECS
FOR THE ENGINERDS
EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25″ height from truck bed to top of tray
7.75″ product height
12.25″ height with High Sides
80″ total length
48″ total usable width
50″ total product width
WEIGHT
187-195 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5″ CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
