2014, 2015, 2016, 2017, 2018 Chevy Silverado 1500 | GMC Sierra 1500 2WD/4WD
Our 6” Performance System has been designed utilizing our industry leading crossmember and spindle technology.
The front high arched 1/4″ thick steel crossmember has been formed to fit to the bottom of the frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Steel component version keeping track width near stock and working properly with the Stablitrac® safety functions.
The front differential is relocated with heavy duty brackets while a tightly formed 1/4 ” thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5” tall blocks and u bolts.
What sets this 6” Performance system apart from our 6” Basic is the Dirt Logic Shocks. The factory front Coilover shocks are replaced with Dirt Logic 2.5 Coilovers that have been ride tuned by our in house shock experts to provide a supple highway ride with excellent offroad damping. These 2.5 Coilovers include cold wound coil springs for the best possible ride. The rear suspension receives Dirt Logic 2.25 shocks that are tuned for a compliant highway ride with great offroad capability. Dirt Logics are the finest shocks you can buy for your vehicle and will provide a quality ride you can feel each time you drive.
Front lower control arm Crossmember forms to bottom of frame without cutting
Offset ductile Steering Knuckles keep tires under fenders
Includes Crossmember cross tubes to distribute front suspension impact loads
Top of the line Dirt Logic shocks for superior damping and ride
Systems compatible with factory Stablitrac®

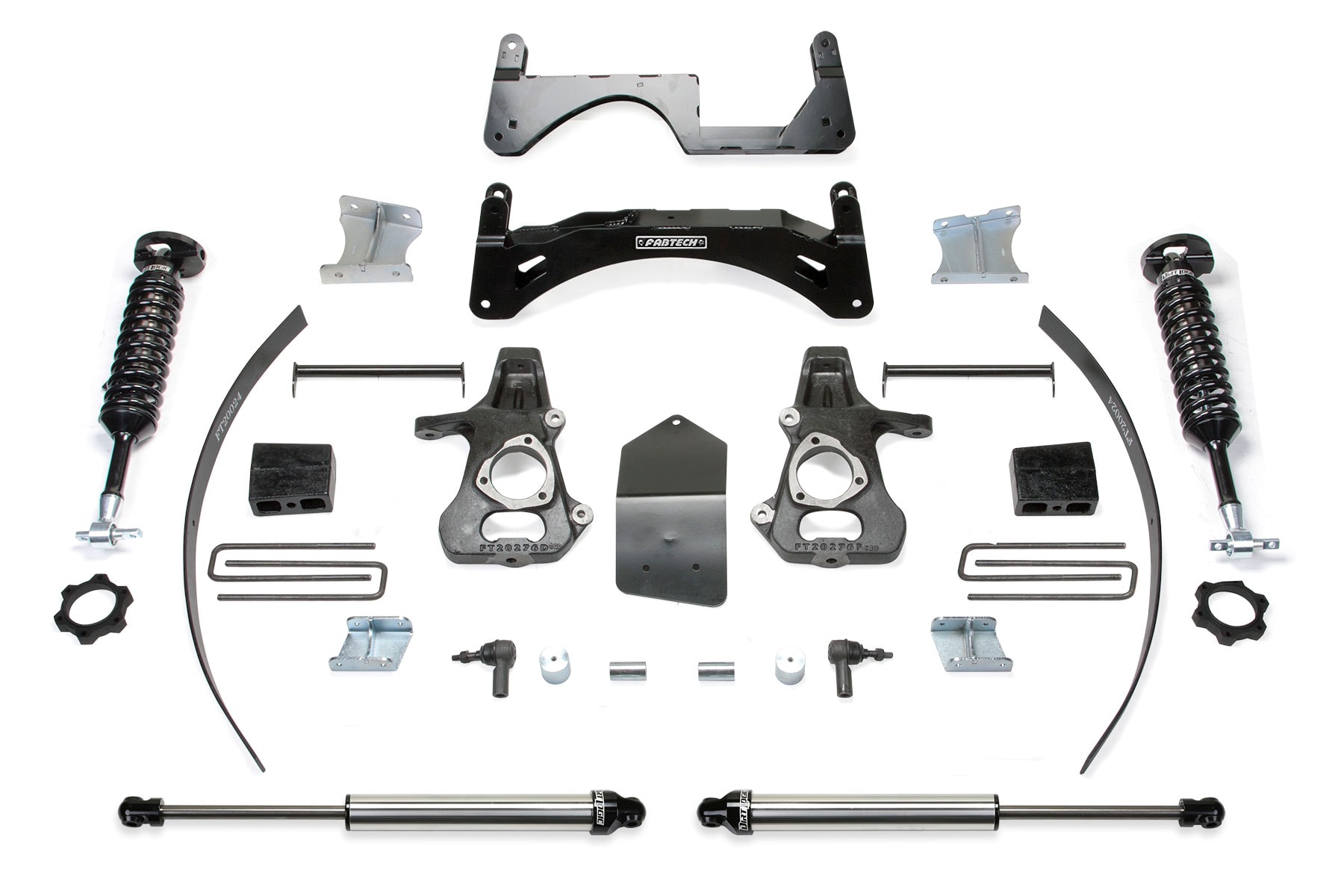

1 FTS21137 Component Box 1
1 FTS21140 Component Box 2 – Steel
1 FTS21196 Front Dirt Logic 2.5 Coilovers
2 FTS810562 Rear Dirt Logic 2.25 Non Resi
1. Will not fit models with Factory AutoRide shocks.
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
128. Fits models with Factory Forged Black Steel Upper Control Arm.
136. Some vehicles may experience front driveline vibration in 4WD. Order FTS21192 CV Driveshaft Kit if occurs.
Tires & Wheel
Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
2.5″ OD Stainless Steel Body
2.25″ OD Billet Aluminum Piston
7/8″ NitroSteel® Black Piston Rod
Cold Wound Coil Springs
Adjustable Coilover Construction
5/8″ Spherical Ball Mounting Ends
