Description
Part number 985-24-053 is a FOX® 2.0 Performance Series smooth body shock with 11.12in of travel, eyelet mounts on both ends, and a clamp-mounted external reservoir, built for universal off-road and suspension applications.
IMPORTANT: This SKU has eyelet mounts on both ends like the 8.12in-14.12in FOX® reservoir shocks with a CD adjuster, but this 11.12in-travel unit does not include a compression damping adjuster – do not assume adjustability based on the eyelet-to-eyelet mount style alone. FOX® does not publish vehicle-specific fitment for this universal shock, so confirm the 11.12in travel and 28.02in extended / 16.9in compressed lengths against your application’s mounting points before ordering, since this travel length is unique to this part number in the lineup and will not interchange with the 10.12in or 12.12in versions.
This FOX® 2.0 Performance Series shock uses an impact-extruded, clear-anodized 6061-T6 aluminum body that dissipates heat faster than a conventional steel-body shock, and is performance-tuned for vehicle-specific applications by FOX®.
The clamp-mounted external reservoir system increases available oil and nitrogen capacity and dissipates heat faster than a shock without a reservoir, improving damping consistency over long, rough sections of trail. The billet reservoir clamp and other components are black-anodized, CNC-machined 6061-T6 aluminum. A race-developed high-flow piston is matched with application-specific valving for a controlled, predictable ride.
The shaft is 5/8in hard chrome-plated, heat-treated alloy steel, and the shock uses a redundant sealing pack system consisting of a main seal, wiper seal, and scraper seal to keep contaminants out and oil in over extended service life. This shock is backed by the FOX® limited lifetime warranty.
- Universal-application FOX® 2.0 Performance Series smooth body shock, 11.12in travel, eyelet top mount and eyelet bottom mount
- Performance-tuned valving for vehicle-specific applications
- Impact-extruded, clear-anodized 6061-T6 aluminum body dissipates heat faster than steel-body shocks
- Clamp-mounted external reservoir system for improved heat dissipation and increased oil/nitrogen capacity
- Race-developed high-flow piston with application-specific valving
- Redundant sealing pack system: main seal, wiper seal, and scraper seal
- Backed by the FOX® limited lifetime warranty
- Sold individually
| Part Number | 985-24-053 |
| Series | FOX® 2.0 Performance Series |
| Type | Smooth Body Shock with External Reservoir (Aluminum) |
| Travel | 11.12in |
| Extended Length | 28.02in |
| Compressed Length | 16.9in |
| Body | 2.0in impact-extruded 6061-T6 aluminum, clear-anodized finish |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8in hard chrome-plated, heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving, performance-tuned for vehicle-specific application |
| Seals | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |

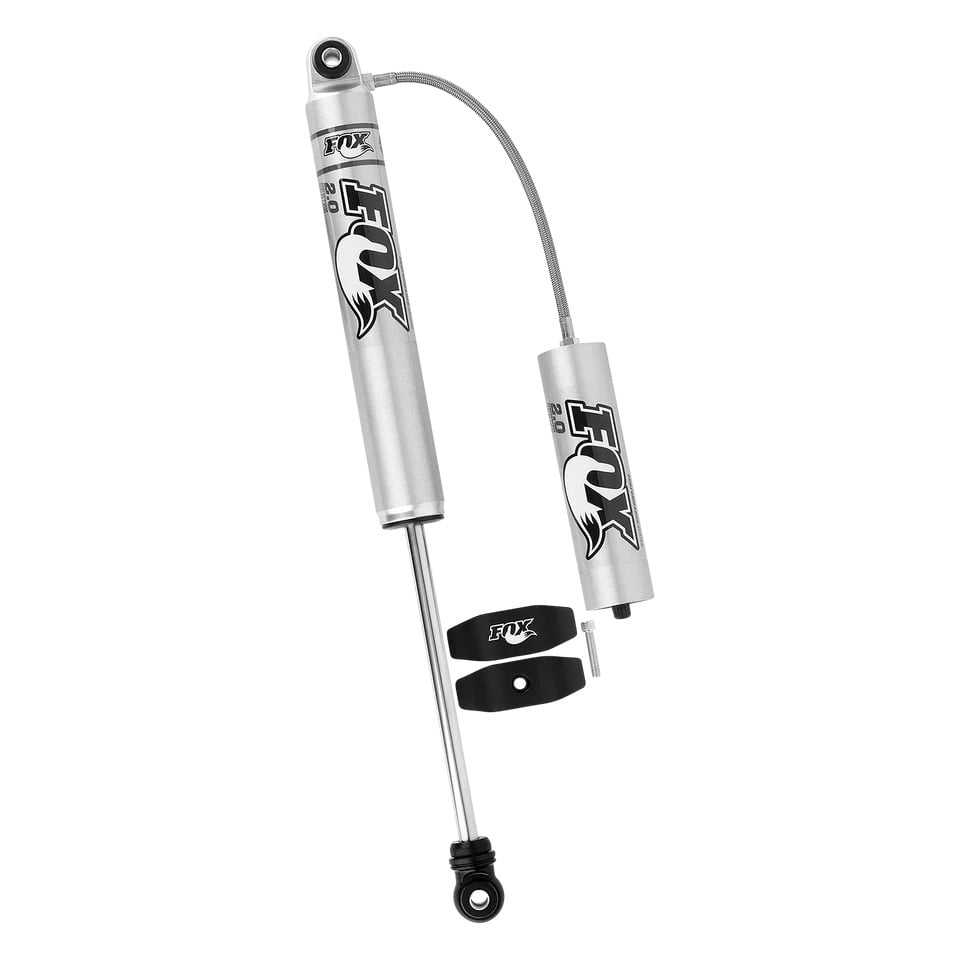

| What’s Included | Shock with pre-assembled external reservoir and billet reservoir clamp |
| Warranty | FOX® limited lifetime warranty |
This is a universal-application FOX® 2.0 Performance Series shock, not tied to a specific make or model – match it to your build by travel (11.12in), extended/compressed length, and eyelet-to-eyelet mounting configuration. This 11.12in-travel SKU does not include a CD adjuster despite sharing eyelet-to-eyelet mounts with the adjuster-equipped FOX® reservoir shocks in this line. Confirm travel length carefully, as 10.12in and 12.12in versions exist under separate part numbers in this same product line.
