Description
The FOX® 883-26-059 Performance Elite Series 2.5 Reservoir Rear Shock Pair is an adjustable, 0″-1.5″ lift application rear shock set engineered for 2019-2023 Ford Ranger models, sold as a pair.
IMPORTANT: This listing is for the REAR shock pair only (2 shocks) — front shocks for this application are sold separately under a different FOX® part number. This part number is confirmed for U.S. market Ford Ranger models only; Ranger models sold outside the U.S. may use different fitment and are not covered by this listing.
FOX® Performance Elite Series 2.5 Reservoir shocks bring race-proven off-road shock technology to a bolt-on Truck and SUV application. These smooth-body shocks are derived directly from FOX® Off-Road race shock architecture, developed and tested in competition before being adapted for street-driven trucks and SUVs, delivering enhanced ride quality and control both on and off pavement.
The external piggyback reservoir increases total oil and nitrogen capacity over a standard monotube design, improving heat dissipation and maintaining consistent damping performance during sustained off-road use. The 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum shock body resists corrosion, while the race-developed high-flow piston and application-specific valving are tuned to maximize performance for this specific vehicle platform.
Each shock uses a 7/8″ hard chrome-plated, heat-treated alloy steel shaft paired with a redundant sealing pack system consisting of a main seal, wiper seal, and scraper seal to keep contaminants out and oil in. PTFE-lined, heat-treated alloy steel spherical bearings are used at the mounting eyelets for reduced friction and long service life. FOX® backs this shock pair with a manufacturer warranty; see FOX®’s published warranty terms for full coverage details.
- Fits 2019-2023 Ford Ranger (U.S. models only) — rear position, 0″-1.5″ lift height range, adjustable

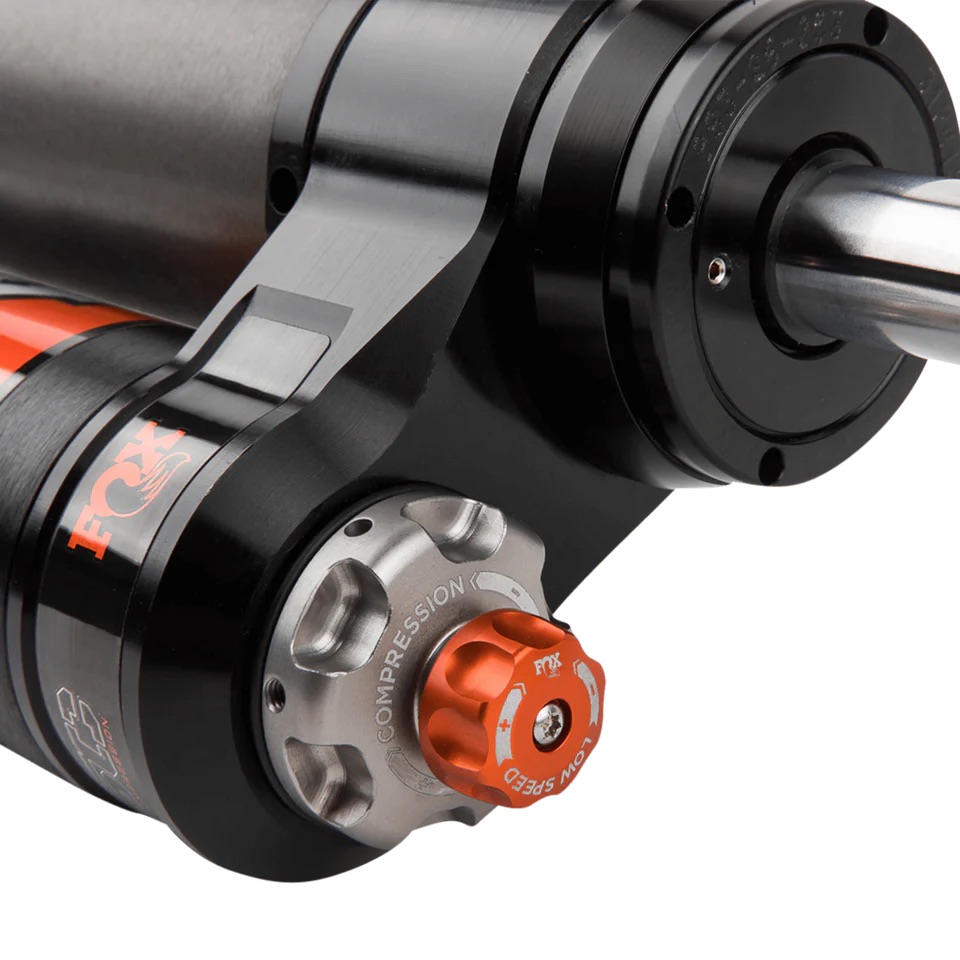

- External reservoir design increases oil and nitrogen capacity for improved heat management
- 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum shock body
- Black-anodized, CNC-machined 6061-T6 billet aluminum components
- 7/8″ hard chrome-plated, heat-treated alloy steel shaft
- Race-developed high-flow piston with application-specific valving
- Redundant sealing pack system: main seal, wiper seal, scraper seal

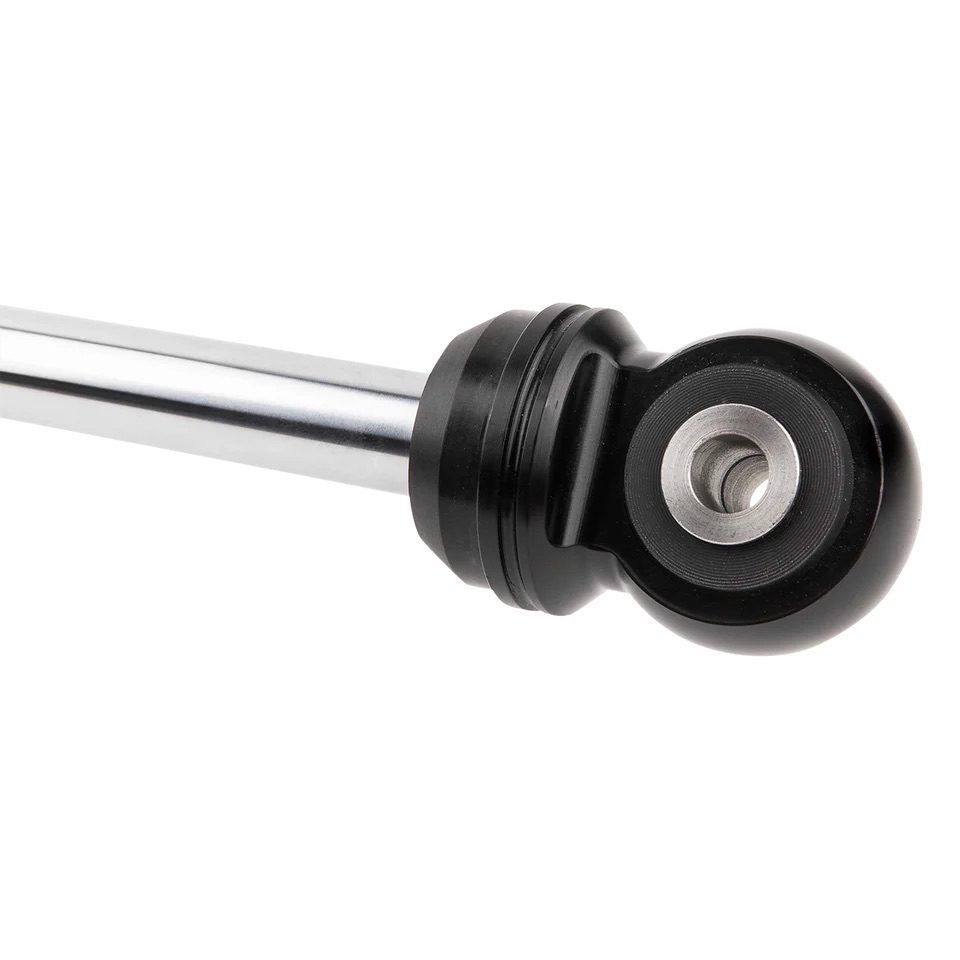

- PTFE-lined, heat-treated alloy steel spherical bearings
- Eyelet top mount and eyelet bottom mount
- Covered by FOX® manufacturer warranty
- Sold as a pair (2 rear shocks)
| Part Number | 883-26-059 |
| Series | Performance Elite |
| Position | Rear |
| Lift Height Range | 0″ – 1.5″ |
| Travel | 9.47″ |
| Body | 2.5″ impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists rust over time |
| Body Plating | Hard-anodized for a durable finish |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Bearings | PTFE-lined, heat-treated, alloy steel spherical |
| Extended Length | 24.94″ |
| Compressed Length | 15.47″ |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Fitment Notes | Fits U.S. Models Only |
| What’s Included | (2) FOX® Performance Elite Series 2.5 Reservoir Rear Shocks |
This FOX® Performance Elite Series 2.5 Reservoir shock pair is designed specifically for the rear position on 2019-2023 Ford Ranger trucks running a 0″-1.5″ lift height, with adjustable valving for tunable performance. Coverage is limited to U.S.-market Ranger models only. This is the REAR application shock pair — do not confuse with the front shock pair for this same platform, which is sold under a separate FOX® part number.
