Description

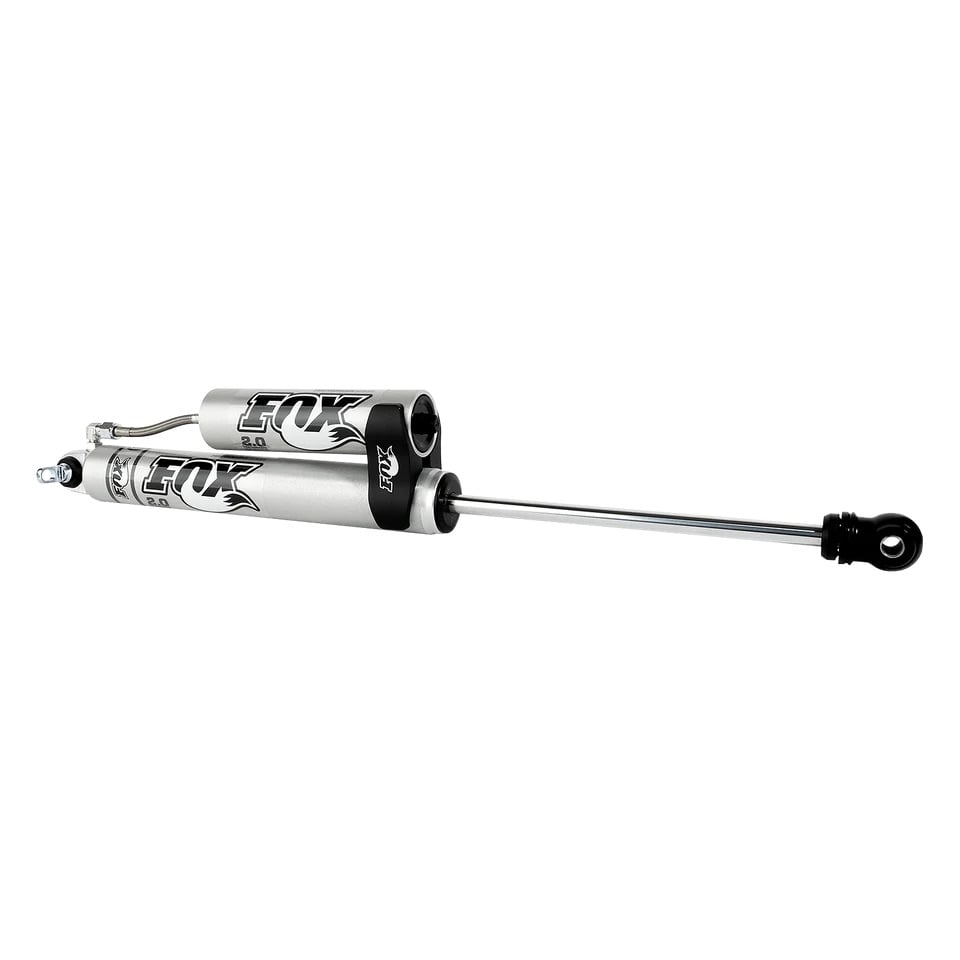

Part number 985-24-114 is a FOX® 2.0 Performance Series external reservoir smooth body rear shock, offering 11.12 inches of travel for Jeep Cherokee and Wrangler applications at the lift heights listed below. Includes billet reservoir mounting clamp.
IMPORTANT: This is the standard non-adjustable version of the FOX® 2.0 Performance Series rear shock at 11.12in of travel. FOX® offers this same rear position in additional lift-height tiers under part number(s) 985-24-113, 985-26-113; confirm your target lift height against the fitment table below before ordering, as travel and mounting length differ between tiers. FOX® notes modifications are required for proper installation of this rear shock – consult the FOX® installation manual before mounting. This shock is sold individually, not as a pair.

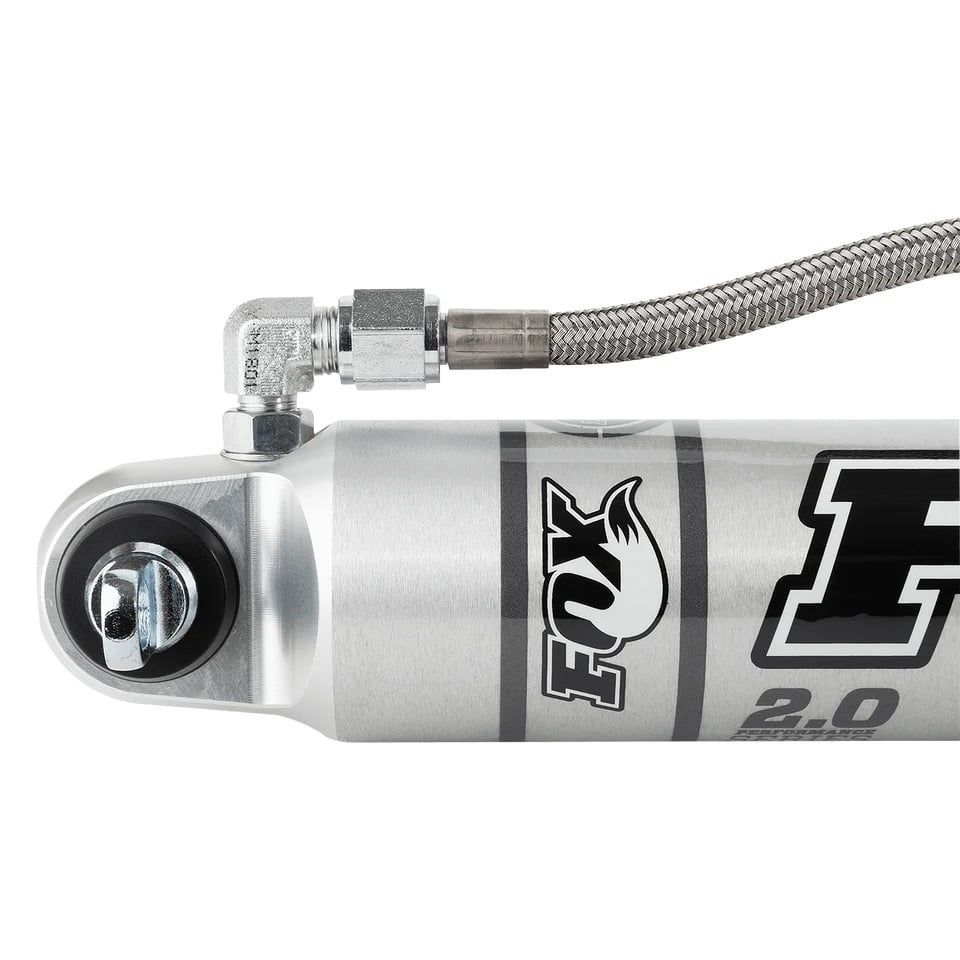

The FOX® 2.0 Performance Series shock uses a 2.0-inch impact-extruded 6061-T6 aluminum body with a clear-anodized finish that resists corrosion and sheds heat faster than a comparable steel-body shock. The external reservoir increases oil and nitrogen capacity over a standard twin-tube design, and the reservoir clamp and mounting hardware are CNC-machined from black-anodized 6061-T6 billet aluminum.
A race-developed high-flow piston is matched with application-specific valving to deliver consistent, predictable damping across washboard, rock, and high-speed terrain.
The shaft is 5/8-inch hard chrome-plated, heat-treated alloy steel, and a redundant seal pack (main seal, wiper seal, and scraper seal) keeps contamination out of the damping circuit. Top mount is Bar Pin, bottom mount is Eyelet. FOX® backs the 2.0 Performance Series with a Limited Lifetime Warranty.
- Fitment: 1984-2001 Jeep Cherokee (Rear, 5″-6.5″ lift); 1997-2006 Jeep Wrangler (Rear, 6.5″-8″ lift)
- 11.12in travel, rear position, external reservoir smooth body design
- 2.0-inch impact-extruded 6061-T6 aluminum body, clear-anodized finish
- Black-anodized, CNC-machined 6061-T6 billet aluminum reservoir clamp and components
- 5/8-inch hard chrome-plated, heat-treated alloy steel shaft
- Race-developed high-flow piston with application-specific valving
- Redundant seal pack: main seal, wiper seal, and scraper seal

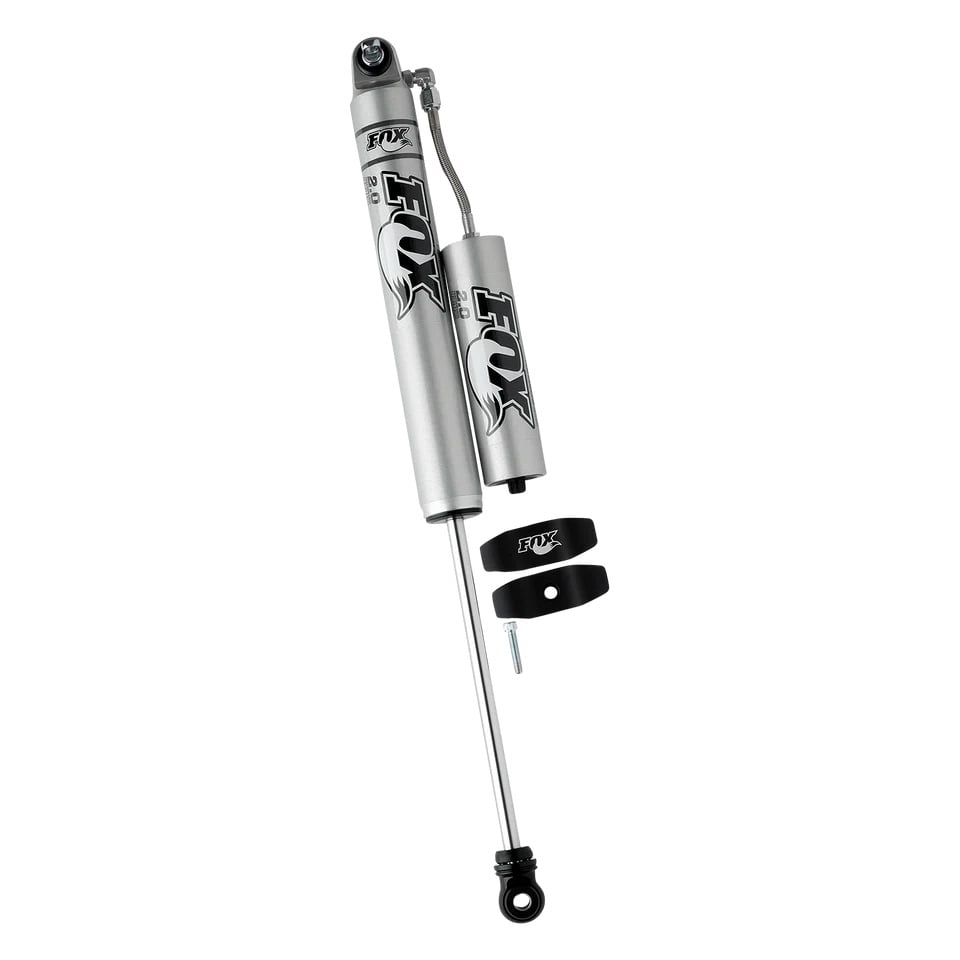

- Includes billet reservoir mounting clamp
- Modifications required for installation per FOX® – consult installation manual
- Backed by FOX® Limited Lifetime Warranty
- Sold individually
| Part Number | 985-24-114 |
| Series | Performance |
| Position | Rear |
| Travel | 11.12″ |
| Body | 2.0″ impact-extruded 6061-T6 aluminum, clear-anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome-plated, heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving |
| Damping Adjustment | Fixed valving, non-adjustable |
| Seals | Redundant seal pack: main seal, wiper seal, scraper seal |
| Extended Length | 27.52″ |
| Compressed Length | 16.4″ |
| Top Mount | Bar Pin |
| Bottom Mount | Eyelet |
| What’s Included | (1) FOX® 2.0 Performance Series shock, billet reservoir mounting clamp and hardware |
| Sold As | Individually |
| Warranty | Limited Lifetime Warranty |
| Fitment: 1984-2001 Jeep Cherokee | Rear, 5″-6.5″ lift |
| Fitment: 1997-2006 Jeep Wrangler | Rear, 6.5″-8″ lift |
This 985-24-114 is a FOX® 2.0 Performance Series rear shock covering the Jeep applications and lift heights listed above. Adjacent lift-height tiers for this rear position are sold under part number(s) 985-24-113, 985-26-113; verify your lift height against the table above before purchasing.
