Hawk Perf® DTC-70 Brake Pads for Wilwood DynaPro 6A Type 6712 HB645U.490

Hawk Performance® HB645U.490 DTC-70 Motorsports brake pads, HB645 shape, 0.490 in. (12 mm) thick, supplied as one axle set (2-wheel set), caliper-fit for the Wilwood DynaPro 6A Lug Mount (Type 6712).

IMPORTANT: This is a caliper-fit pad. Hawk Performance® lists no vehicle applications for HB645U.490; it is matched to calipers, not vehicles. Caliper match (Hawk Performance® Specialty Caliper Guide): Wilwood DynaPro 6A Lug Mount (Type 6712). The Hawk Performance® factory diagram for the HB645 shape is labeled for the Wilwood 6712 caliper. Confirm your caliper model, pad shape (HB645) and pad thickness (0.490 in.) before ordering; position (front or rear) depends on where the caliper is installed. All Hawk Performance® compounds are not compatible with carbon ceramic rotors. Hawk Performance® pads are designed to work with Iron/Metal rotors. No other compound of the HB645 shape is offered in this lineup. This listing is for the DTC-70 compound (code U) only. Contents: One axle set of brake pads (2-wheel set). Hardware, clips, shims and wear sensors are not listed as included. Hawk Performance® states that motorsport pads do not include shims.

DTC-70 is a Hawk Performance® Motorsports brake pad compound. Hawk Performance® engineered it for extremely high torque and a highly aggressive initial bite, for cars with high deceleration rates, with or without downforce. It offers superior release and control characteristics, and Hawk Performance® positions it as a race solution on its own or as split friction with DTC-60.

Hawk Performance® describes DTC-70 as a high performance, high torque compound with superior rotor and pad wear and excellent modulation and release characteristics. Hawk Performance® lists these applications: NASCAR/NASCAR modified, ARCA, Super Late models, pavement circle track, Pro 2/Pro 4 Off Road Trucks/Pro Lite, Sports Car/GT/GS, Open Wheel/Formula and Monster Trucks. DTC-70 has an 800-1200 F optimal temperature range and 400-1600 F operating temperatures.

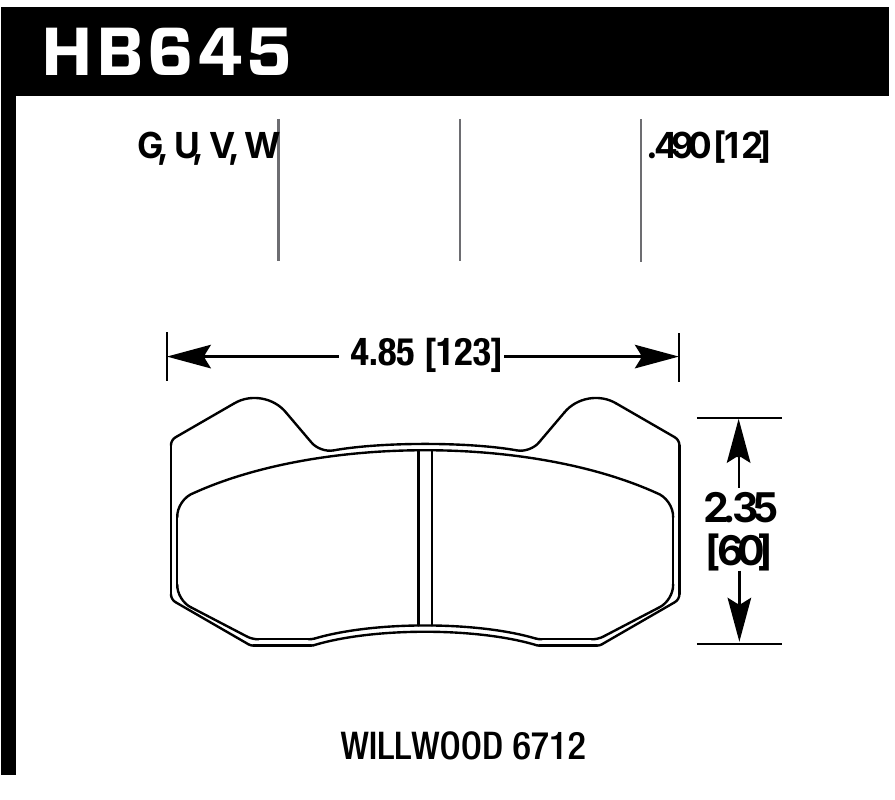

The HB645 backing plate shape measures 4.85 in. (123 mm) x 2.35 in. (60 mm), with a total pad thickness of 0.490 in. (12 mm) including core and friction material. Hawk Performance® pads are designed to work with iron/metal rotors only. Proper bed-in per the Hawk Performance® installation and bed-in procedure is required for best performance. Warranty: Hawk Performance® Street Performance Limited Lifetime Warranty: warranted to be free of defects in workmanship and materials. The warranty does not apply to normal wear or to damage caused by negligence, lack of maintenance, accident, abnormal operations, or improper installation or service. All warranty claims are processed through Hawk Performance®, and valid claims are replaced or reimbursed with Hawk Performance® brake pads of equal or greater value.

Features

• Fits (caliper-fit): Wilwood DynaPro 6A Lug Mount (Type 6712) (no vehicle applications listed by Hawk Performance®)
• DTC-70 compound, compound code U: Hawk Performance® Motorsports brake pad
• High performance, high torque compound with a highly aggressive initial bite
• For cars with high deceleration rates, with or without downforce; can run alone or as split friction with DTC-60
• Superior rotor and pad wear; excellent modulation and release characteristics
• Applications listed by Hawk Performance®: NASCAR/NASCAR modified, ARCA, Super Late models, pavement circle track, Pro 2/Pro 4 Off Road Trucks/Pro Lite, Sports Car/GT/GS, Open Wheel/Formula and Monster Trucks
• 800-1200 F optimal, 400-1600 F operating
• Position: Caliper-fit; front or rear depending on caliper installation
• Pad shape HB645, 0.490 in. (12 mm) thick
• All Hawk Performance® compounds are not compatible with carbon ceramic rotors. Hawk Performance® pads are designed to work with Iron/Metal rotors.
• Hardware, clips, shims and wear sensors are not listed as included; Hawk Performance® states that motorsport pads do not include shims
• Hawk Performance® Street Performance Limited Lifetime Warranty against defects in workmanship and materials (excludes normal wear)
• Sold as one axle set (2-wheel set)

Specifications

Fitment

Fitment: Caliper-fit pads in the HB645 shape for the caliper listed by Hawk Performance®: Wilwood DynaPro 6A Lug Mount (Type 6712). This is the DTC-70 compound, HB645U.490. Check the part number, pad thickness and position before ordering.
