Description
The Hi-Lift® X-TREME is for the serious Hi-Lift® user, offering the “top of the line” all-cast version (48″ or 60″ sizes) with a special top winch-clamp-spreader attachment that provides the ultimate in multi-use functionality.
The X-TREME Top Clamp replaces the top clamp-clevis of the standard Hi-Lift® models and provides the ability to winch, clamp, and spread up to 5,000 lbs.

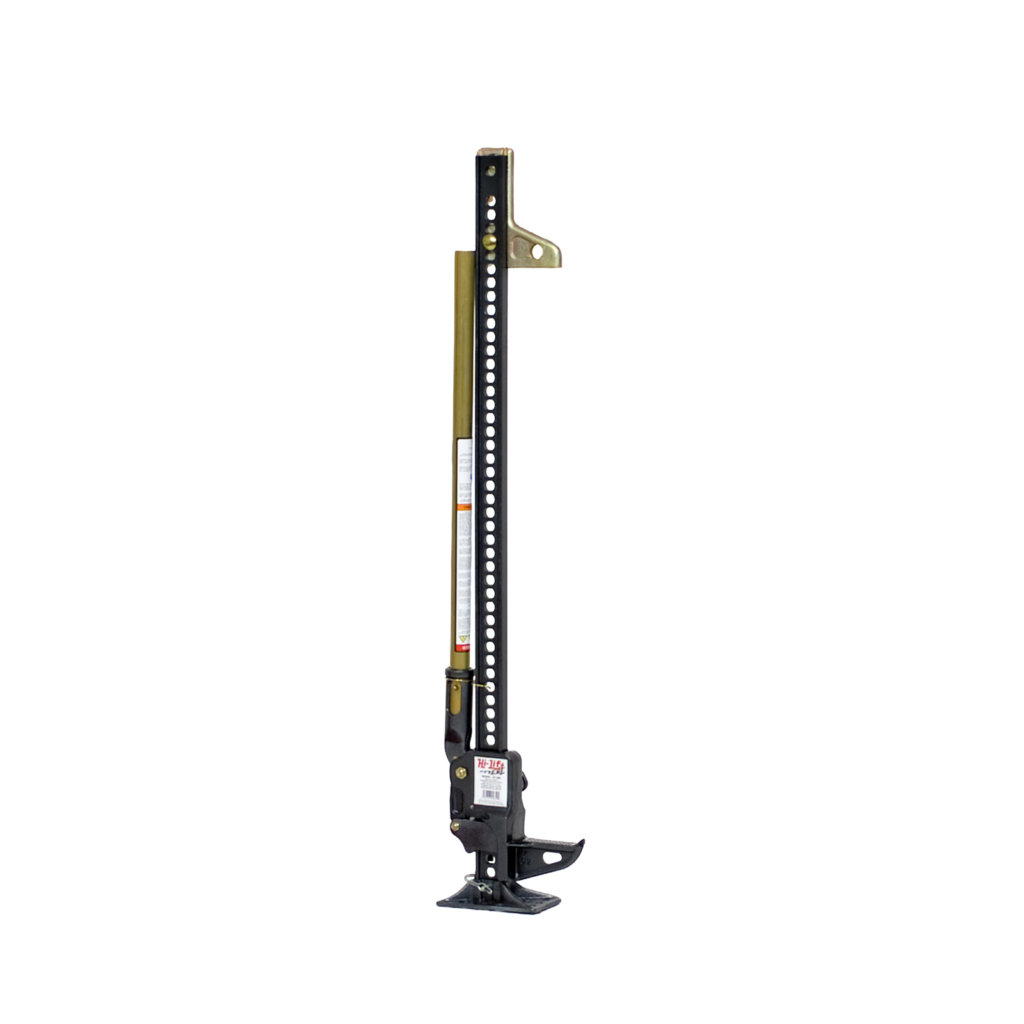

Hi-Lift X-treme Jack
Features
All-Cast Construction
7000lb (3175.14kg) Tested Capacity
Available in 48″, & 60″ Heights. (122, & 152cm)
Lifts, Winches, Clamps, & More
A must-have for the serious Hi-Lift user!
Tested and certified to meet applicable requirements of ASME B30.1-2015
Available Sizes
XT-485 (48″)
Size
48” (122 cm)
Min. Lift Height
4.5″ (11.43 cm)
Max. Lift Height
38.63″ (98.12 cm)
Overall Height
50.75″ (128.91 cm)
Width
5″ (12.7 cm)
Depth
9.63″ (24.46 cm)
Rated Load (RL)
4,660 lbs (2,113 kg)
Winching Capacity
5,000 lbs (2,268 kg)
Clamping Capacity
5,000 lbs (2,268 kg)
Weight
28.16 lbs (12.77 kg)
