Description

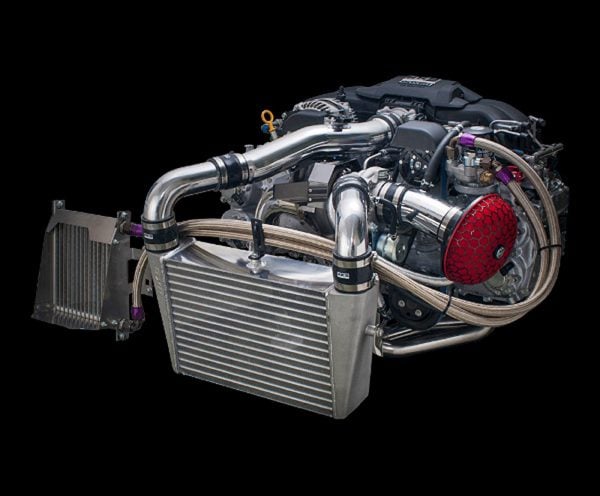

HKS has released the long awaited Bolt-on Turbo Kit with GTIII-RS turbine for Toyota 86/ Subaru BRZ / Scion FR-S. The GTIII-RS turbine is the best match for the 2L engine, with a specially designed turbo housing, exhaust manifold, front-mounted intercooler, piping, and exhaust manifold. This kit is compatible with a stock or a tuned engine. The engine’s power output will reach 450hp when installed to a tuned engine.
*Another kit including the extension with CAT is additionally available.
This kit can be used with HKS S-TYPE OIL COOLER KIT.
- OIL COOLER KIT is NOT included in this kiT
- This is an image of a prototype and may differ from the actual product.
KIT PARTS

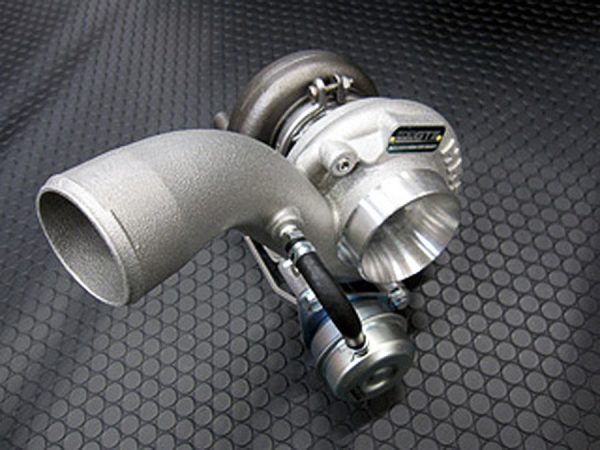

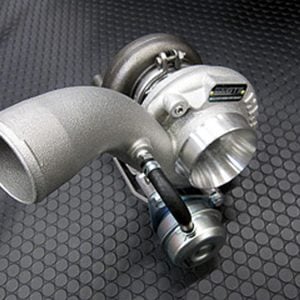

GTIII-RS Turbocharger Assy with an actuator.
Oil & Water Piping Parts
Air Cleaner, Suction Pipe
Front-mounted Intercooler, Piping
Exhaust Manifold,
For 11001-KT001, CATless Extension
For 11001-AT005, Extension with CAT
Insulator Cover, Insulator Sheet
Gaskets, Brackets, Bolts, etc.
※These results were obtained through the in-house test.
The actual values may be different due to the measuring instrument and/or each vehicle’s specifications.

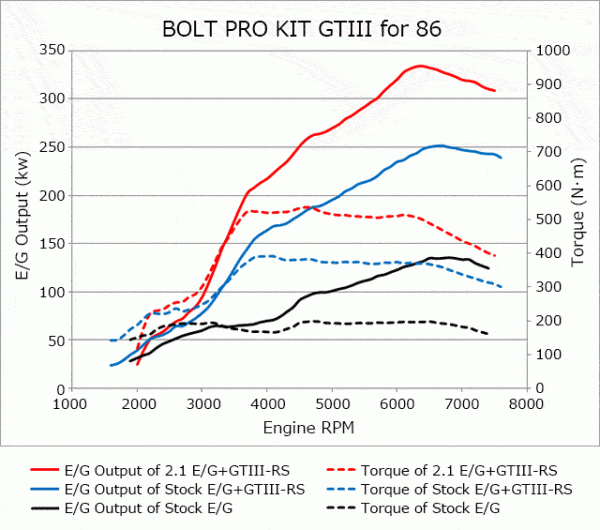

MAX ENGINE OUTPUT
2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm
MAX TORQUE
2.1L E/G + GTIII-RS : 536N･m(55kgf･m)/4600rpm
Stock E/G+ GTIII-RS : 391N･m(40kgf･m)/4100rpm
NA Stock : 199N･m(20kgf･m)/4100rpm
Stock Engine Test Vehicle Spec.
LEGAMAX SPORTS
FLASH EDITOR
EVC6 IR
I/J 440cc
LA CLUTCH
2.1L Engine Test Vehicle Spec.
2.1L Piston, Con’rod, Crankshaft, Camshaft, Gasket
SUPER FIRE RACING M45HL
Hi-POWER Muffler
Prototype Front Pipe, Prototype CATless Center Pipe
Reinforced fuel parts
FLASH EDITOR
EVC6 IR
NOTE
※Reinforced fuel parts such as injectors are required.
※Pressure sensor is required separately.
※Engine management parts are not included in this kit.
※Resetting is required.
※Vehicle modification is required in order to install this kit (Refer to the separated information.)
※Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change.
※It is strongly recommended to install an oil cooler to protect the engine.
Vehicle Model Engine Model Year Turbine Size Boost Pressure Code No. Price Remarks
86 ZN6 FA20 12/04-16/07 GTIII-RS – 11001-KT001 CATless Extension, Compatibility with the late model is confirmed only with JDM model.
