Description

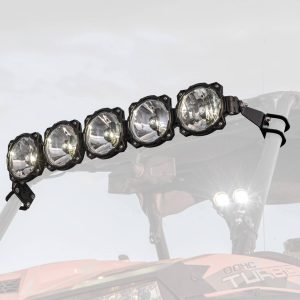

KC HiLites Gravity LED Pro6 5-Light 32″ LED Overhead Light Bar System for 2014, 2015, 2016, 2017, 2018 Polaris RZR. The 32″ 5-light bar has an output of 12,540 lumens. Kit includes mounting brackets, hardware, snap-on light covers w/yellow KC logo, and wiring harness.
***Brackets only compatible with factory Polaris RZR roll cage.
PARTS INCLUDED

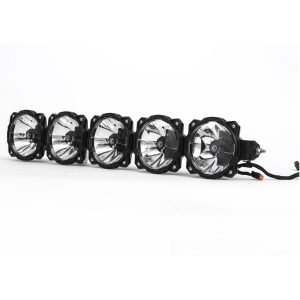

(1) Pro6 32″ 5-Light LED Light Bar
(1) Mount Brackets and Hardware for OE Polaris RZR Factory Roll Cage
(5) Protective Black with Yellow KC Logo Covers
(1) Deluxe Wiring Harness with 30 amp LED Switch
This Gravity LED Pro6 5-light Combo Bar kit includes the patented Infinity Ring System, factory Polaris roll cage mounting brackets hardware, and complete wiring harness.
FEATURES
-Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
-Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds
-Signature KC modular design is expandable to different widths
-Extremely high output with very low amperage draw
-Multiple G6 beam patterns available – Spot, Driving, Wide-40
LIGHT PERFORMANCE
-Raw Lumens: 13,800 lm
-Lux @ 10 Meters: 5,150 lx
-Candela: 515,000 cd
-Beam Distance (Meters): 1,435m
SPECIFICATIONS
SKU 91309
Type Pro6 Light Bar
Family / Series Gravity LED, Pro6
Material Aluminum Alloy
Finish Black
Mount Location Overhead / Roof
UPC 084709913090
Amp Draw 1.78 a
Beam Distance 568 m
Beam Pattern Combo What’s this?
Candela 322,107 cd
Color Black
DOT Compliant No
In The Box 32″ 5-Light Gravity® LED Pro6 Light Bar, Polaris RZR Mounting Bracket Set, 5 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
IP rating IP68
Light Color White
Lens Color Clear
Light Temperature 5000K
Lumens 12,540 lm
Lux 4,200 lx
Product Dimensions W – 32.875″ x H – 6.06″ x D – 3.33″
Size 32″
SAE/ECE No
Wattage 106.8W
Voltage 9V-36V
PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY
Each Gravity® LED Pro6 light is powered by KC’s G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry-leading technology and reflector design assure that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off-road use. Unlike traditional forward-facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that all light output is carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance, and beam shape.
PATENTED INFINITY RING® SYSTEM
As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars feature a patented Infinity Ring® system that utilizes individual rings to securely link individual 6″ Pro6 LED lights together to form a rigid, powerful LED light bar system. The unique hinge and bolt design in every ring allows for endless modularity and adjustability to suit your lighting needs.
COMBO BEAM PATTERN FOR COMPLETE LIGHTING COVERAGE
Gravity LED Pro6 light bars are specifically configured using a combination of SAE/ECE Driving and Wide-40 G6 LED optical inserts. Combining different reflectors in one bar provides a broader range of visibility and a smooth and consistent light beam for more usable lighting coverage. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide-40 beam offers a wider area of coverage, increasing side-to-side peripheral visibility. This results in the incredible distance and evenly balanced light distribution that you can actually use for all of your off-road lighting adventures.
RACE-TESTED DURABILITY AND CONSTRUCTION
Inspired by desert racing and tested by KC off-road racers worldwide, the Pro6 breaks all performance barriers while providing the most durable, robust, and scalable LED light bar design available today.
