Description
The KC HiLiTES 2.6-inch x 2.72-inch Flex Era 1 LED 2-Light System Master Kit (with independent amber backlight) are an ultra bright lighting solution for off-roaders. With the bolt-on design, and included hardware, these pod lights can be mounted in many different locations. Take your off-roading experience to the next level with the Flex Era 3 LED lights kit.

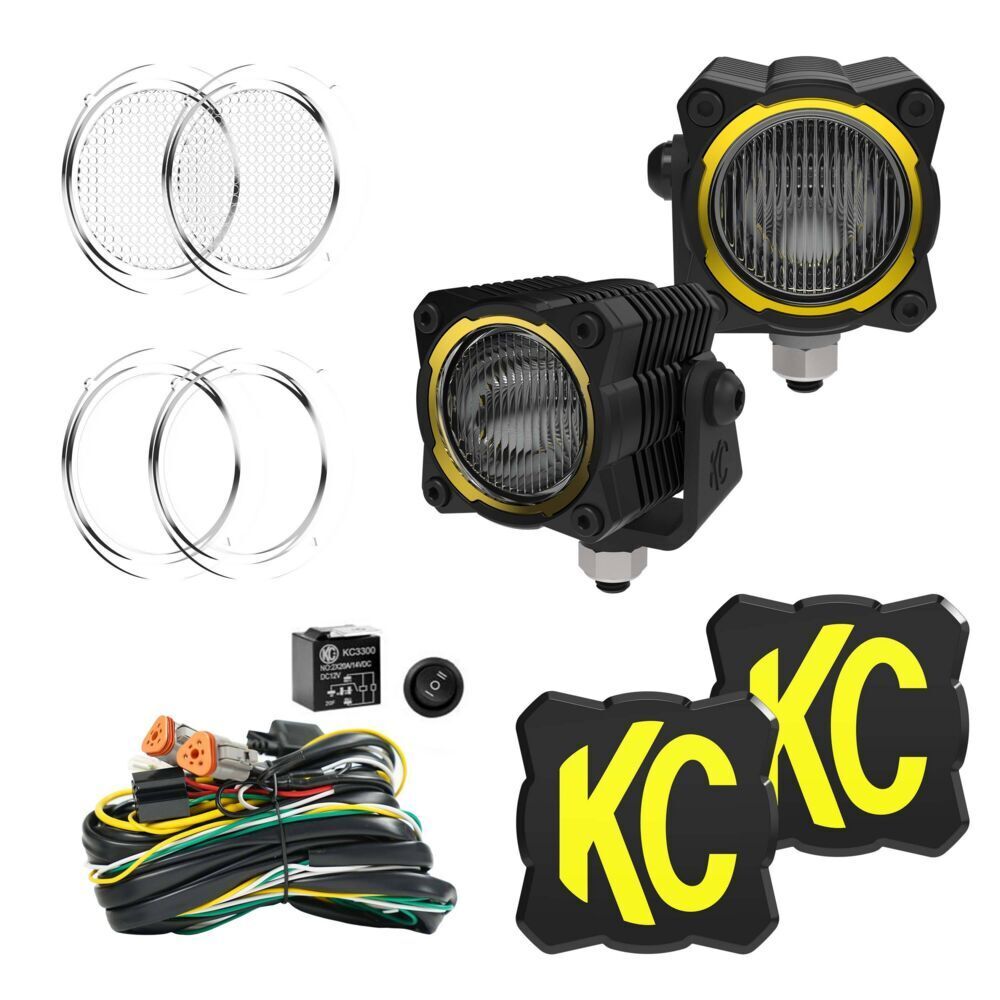

PARTS INCLUDED:
2 x KC FLEX ERA® 1 LED Light Pod with Spread Lens,
Wiring harness with Weatherproof Connectors,
3-position switch,
2 x Mounting Bracket,
2 x Clear Spot Lens,
2 x Clear Flood Lens,
2 x KC Covers and Mounting hardware
This darkness slayer is the perfect companion for cruising trails and setting up camp with your buddies. Powerful, bright, and compact, just as the most versatile light in the FLEX ERA Family ought to be.
We’ve amped up the versatility of the KC FLEX ERA® 1 LED Light Pods by including every beam pattern lens you’d want to be able to mount this light in any nook and cranny you can find. From the front, tucked just behind the changeable colored bezels, sits the clocked lens that allows you quickly change between spot, spread, and flood beam patterns. A patented FLEX ERA® 1 LED Light Pod housing (Patent No. D967,475) with intricate and flowing heat sink fins and compact overall size makes it a party from the front or the back. The FE1 is built to be mounted anywhere you need it, throwing light out forward, sideways, or backward.
FEATURES
Master Kit includes all Beam Pattern Lenses:
Pre-assembled in Spread Beam
Flood Beam Lenses
Spot Beam Lenses
Two Power Modes for Style and Performance
Amber LED Backlight
Full Power (off-road use only)
Mountable right side up, upside-down, or sideways with the asymmetric bracket design
Customizable Machined Bezel Colors (sold separately)
Thermal LED Protection
IP68 Rated
LIGHT PERFORMANCE (PER LIGHT)
Light Temperature 5000K
Raw Lumens 2,430 lm
Lux 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
Wattage 5W / 23W
SPECIFICATIONS (per light)
SKU 0265
Weight 4.000000
Wattage Per Light 5W / 23W
Total Wattage 10W / 46W
Amp Draw Per Light 0.83 a / 3.83 a
Voltage 9V-36V
Lumens Per Light 2430 lm
Lux Per Light 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
Candela Per Light 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot)
Light Temp 5000 K
Lens Color Clear
LED Color Amber / White
Beam Pattern Spread What’s this?
Beam Distance 67.2 m flood / 127.3 m spread / 176.1 m spot
Light Technology LED
Package Options Includes Covers, Includes Multiple Lenses, Includes Wiring
Mount Location Bumper, Overhead, Rear / Back-up, Roof
Size of Products 3″
Material Aluminum Alloy
Product Finish Black
Included Components 2 x KC FLEX ERA® 1 LED Light Pod with Spread Lens, Wiring harness with Weatherproof Connectors, 3-position switch, 2 x Mounting Bracket, 2 x Clear Spot Lens, 2 x Clear Flood Lens, 2 x KC Covers and Mounting hardware
Color Black
Product Dimensions W: 2.6 ” x H: 2.72 ” x D: 2.9 ”
Prop 65 No
Tag Line The most compact and versatile.
UPC 084709002657
IP Rating IP68
