Description

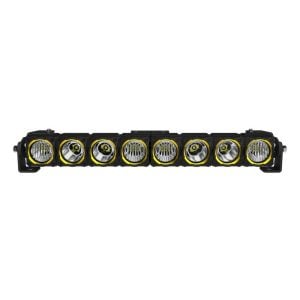

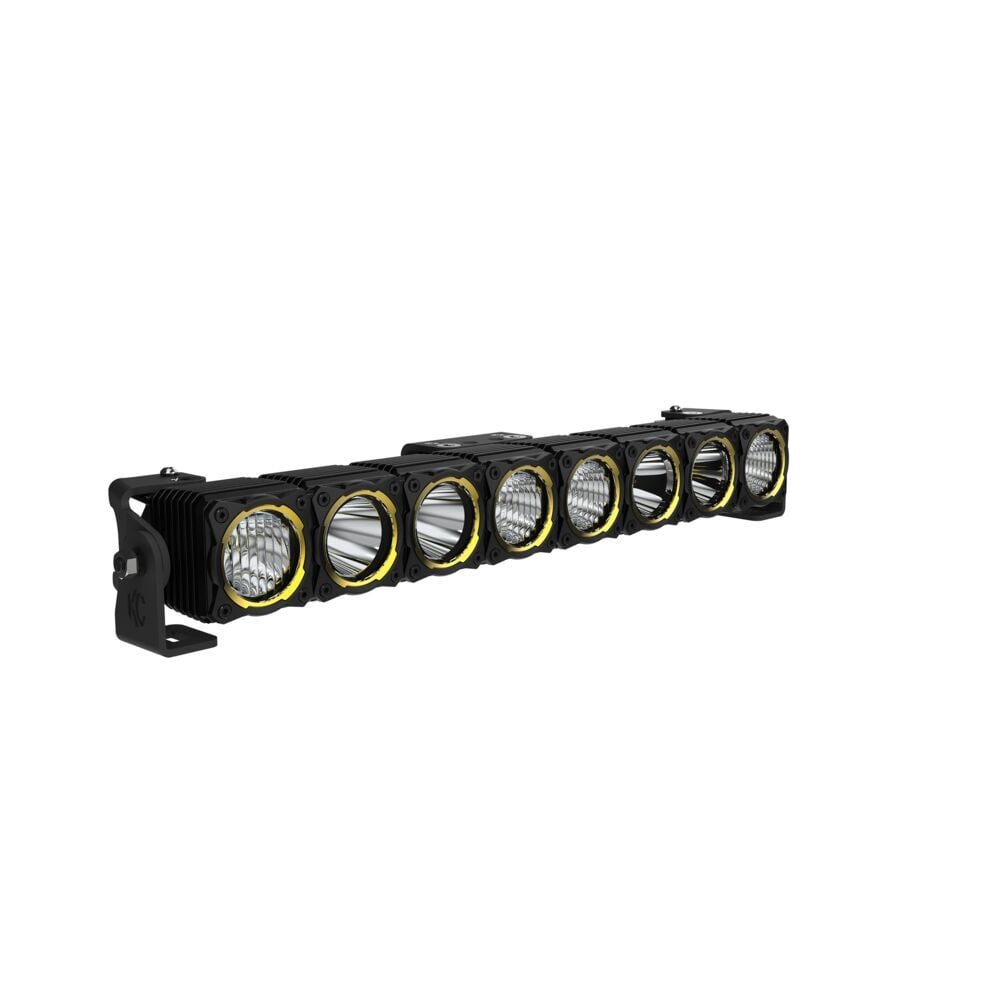

KC HiLiTES 20″ light bar with wiring harness, switch, snap-on covers (with KC logo), linker/end mount assembly bracket kit, and spot beam replacement lenses. The Flex Era 20″ light bar features an Amber LED backlit mode in addition to the standard high power mode. The main beam (high power mode) is white in color. 15,824 raw lumens.

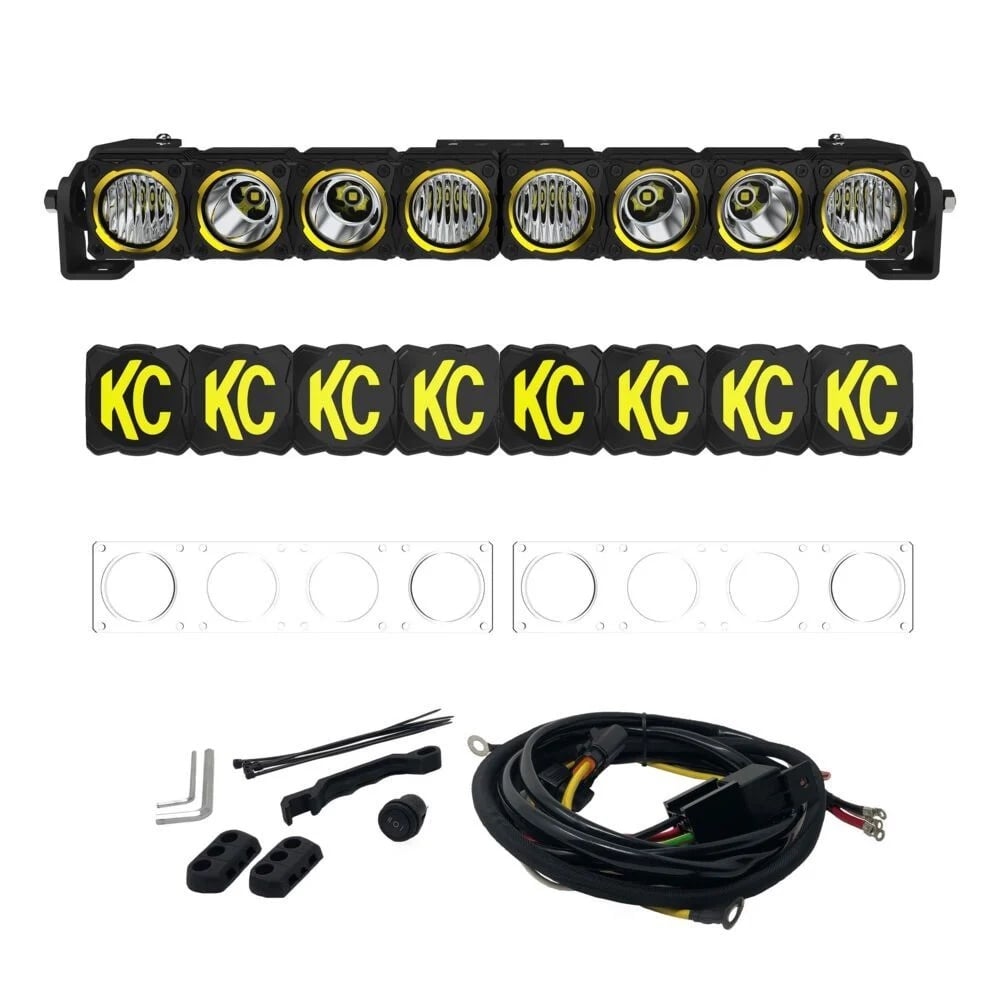

WHAT’S IN THE BOX
-(2) 20″ KC® FLEX ERA® LED Light Bar
-(1) Linker and End Mount Assembly Kit
-(2) Combo Beam Lens (pre-installed)
-(2) Spot Beam Lens

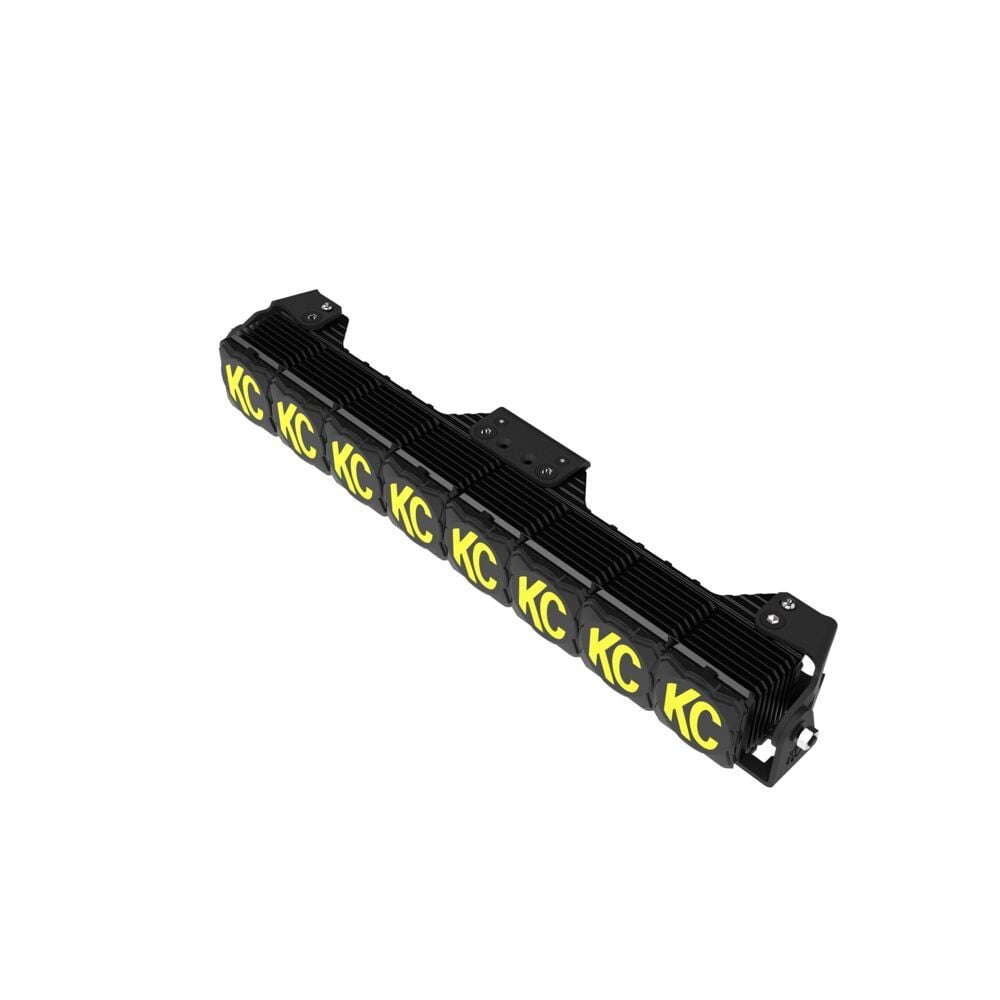

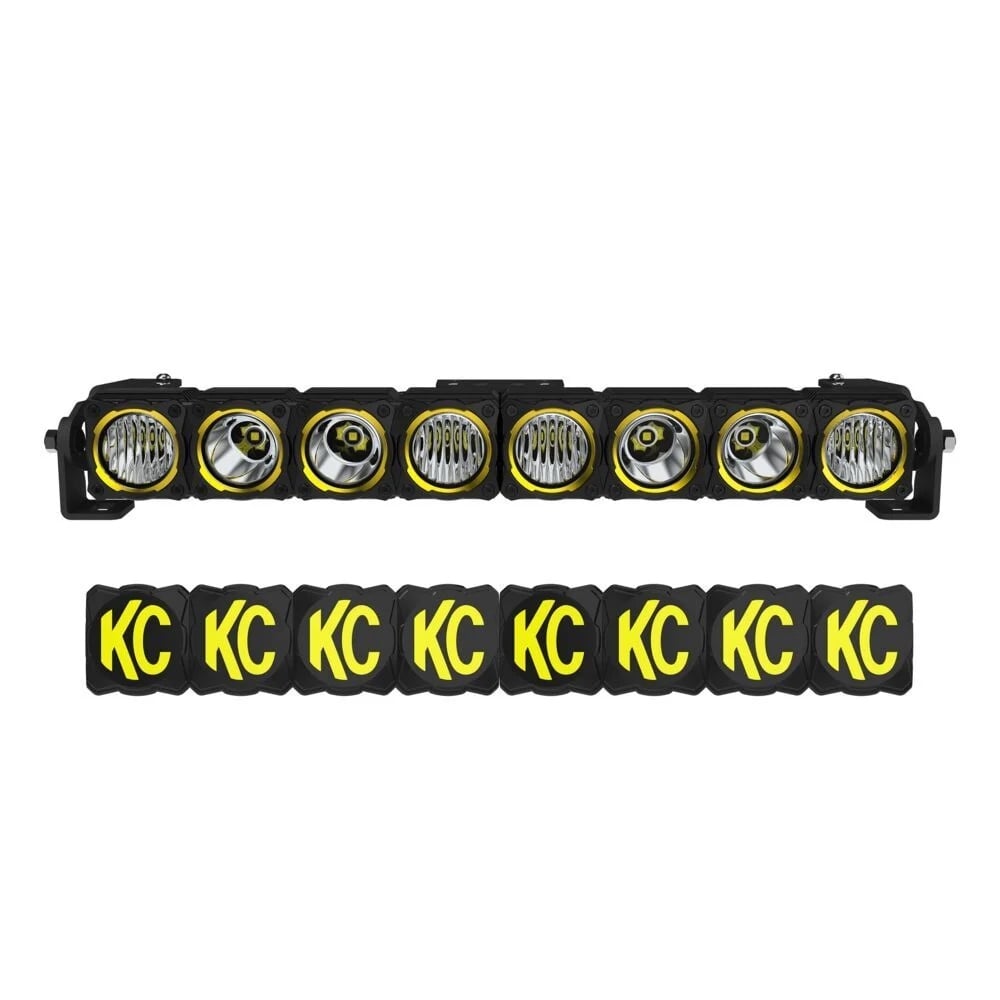

-(2) Light Cover – Black with Yellow KC Logo
-(1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch
-Straight Product Dimensions: W – 21.36″ x H – 2.66″ x D – 3.85″
-Curved Product Dimensions: W – 21.35″ x H – 2.66″ x D – 3.85″

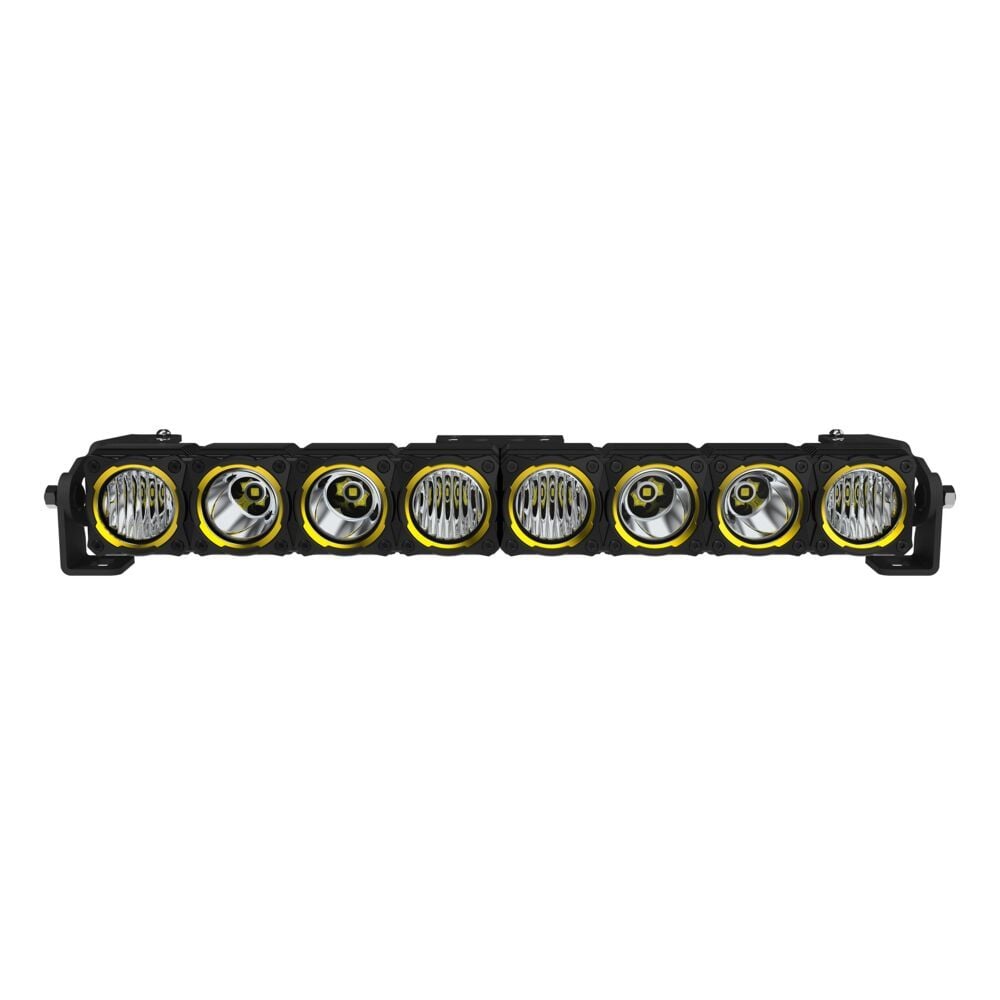

The KC FLEX ERA® LED Light Bar is designed to push the boundaries of what a light bar can be. Built as the successor to our original FLEX Array light bars, this bar defies new limits of engineering while building on the strengths of our previous platform. With high-output performance and a flexible design, the FE Bar is like nothing you’ve seen before.
Setting a new standard in beam quality and visibility, the KC FLEX ERA® LED Light Bar makes sure you see any obstacle on your trail. Take it up another notch with a flexible design that makes the bar linkable, curvable, and optic changeable. Of course, it stays true to its family with customizable aesthetics, tons of accessories to fine-tune it to your needs, and the legendary KC build quality. Reimagine what’s possible with the FLEX ERA® LED Light Bar.
FEATURES
-High-Output Performance for Unprecedented High-Speed Performance
-Flexible Design to Adapt the Length, Curvature, and Optics to Your Needs
-Master Kit includes all Beam Pattern Lenses:
-Pre-assembled in Combo Beam
-Spot Beam Lenses Included
-Two Power Modes:
-Amber LED Backlight
-Full Power (off-road use only)
-Customizable Aesthetics, because who doesn’t want things to match?
-Legendary KC Build Quality with the Adventure Further Guarantee
LIGHT PERFORMANCE (20″)
-Lumens: 15,824 lm @5000K
-LUX @ 10 meters: 3,220 lx (combo) / 3,600 lx (spot)
-Candela: 322,000 cd (combo) / 360,000 cd (spot)
-Beam Distance (Meters): 567 m (combo) / 600 m (spot)
-Beam Pattern: Combo/Spot
SPECIFICATIONS (20″)
-Wattage: 24W (Amber Backlight) / 216W (High-Power)
-Amp Draw @ 12V: 2.0A / 18.0A
-Voltage: 9V-36V
-IP Rating: IP68

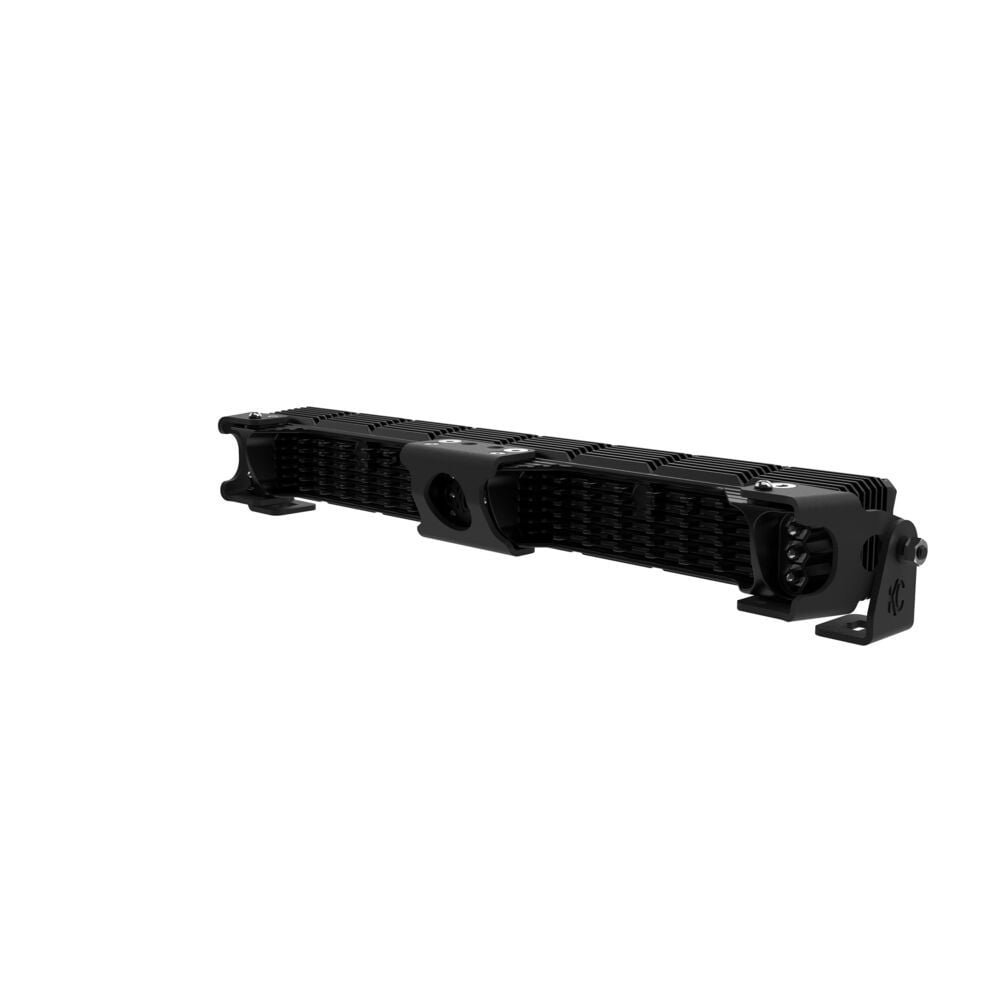

FLEXIBLE DESIGN
The 20″ FE Bar comes unassembled, allowing you to easily adapt it to your needs right out of the box. With its linkability, each 10″ segment joins together through our custom Linker Brackets and Power Linkers. Not only does this join each bar together, but at each linker joint is the opportunity to set the curvature of the light bar between straight and radius configurations.
MASTER KIT
Gone are the days of guessing which beam pattern is best for you. The KC FLEX ERA® LED Light Bar Master Kit bundles the light + both beam pattern lenses + spare o-ring + black and yellow KC logo cover + a complete wiring kit for everything you need to spend less time in the garage and more time out on the trails. Keep the pre-installed Combo Beam Lens for the best all-around performance, or choose to swap to the included Spot Beam Lens for the greatest long-distance visibility.

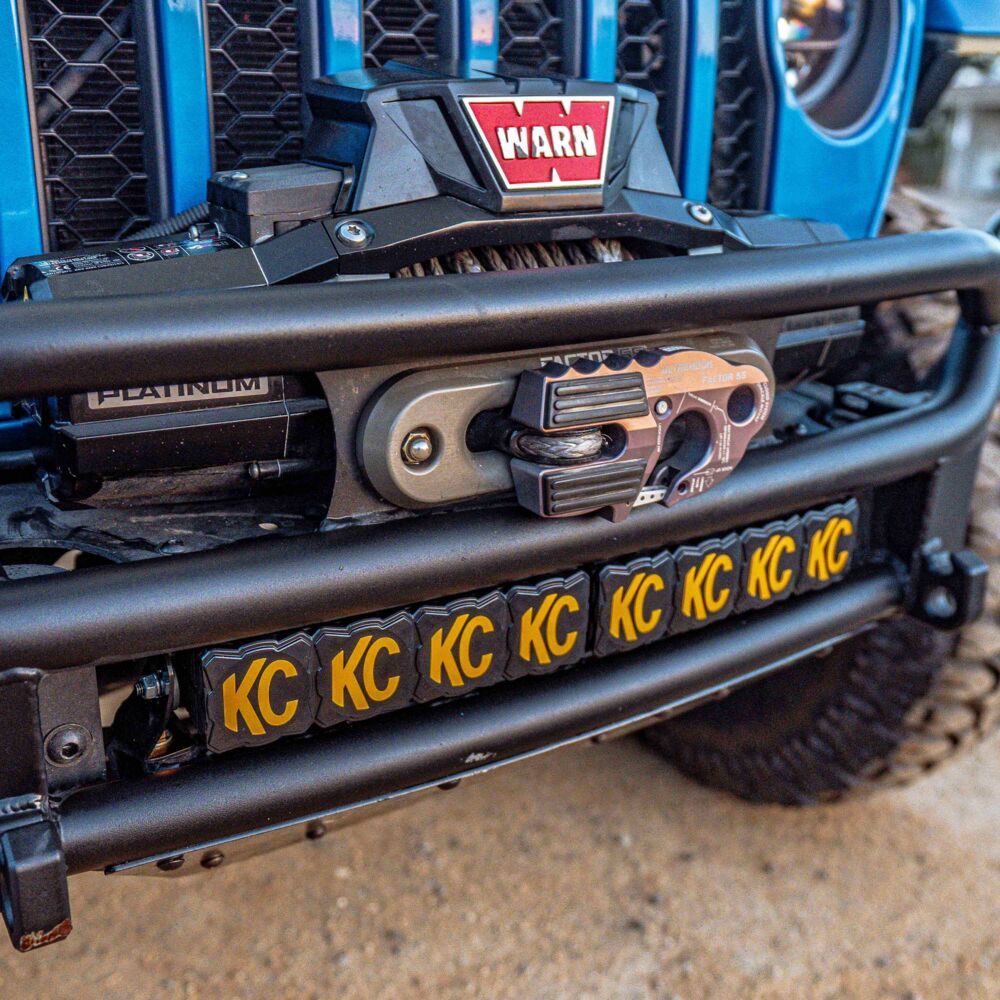

CUSTOMIZABLE
We get it, everyone loves to personalize their rig. Our tried and true FLEX LED® tradition ensures that you can customize the colored accent bezel to match your rig. The FE Bar bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.

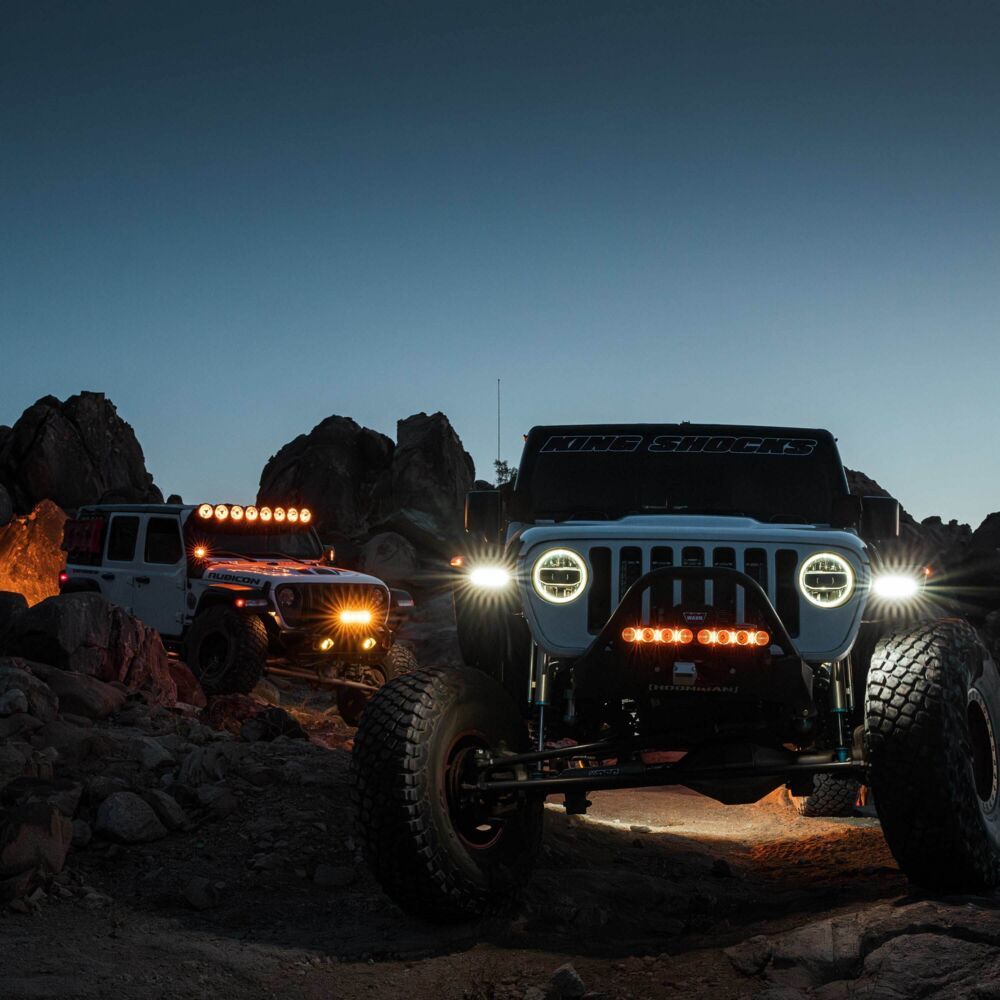

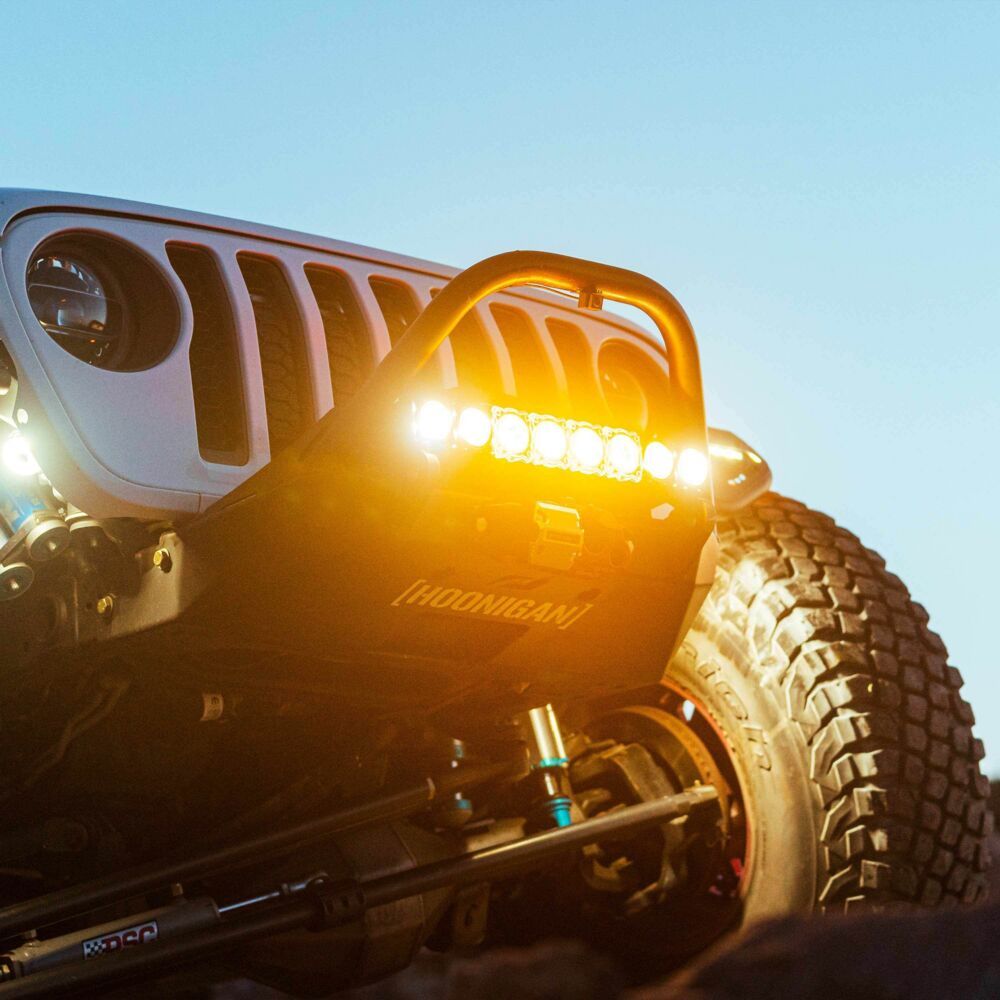

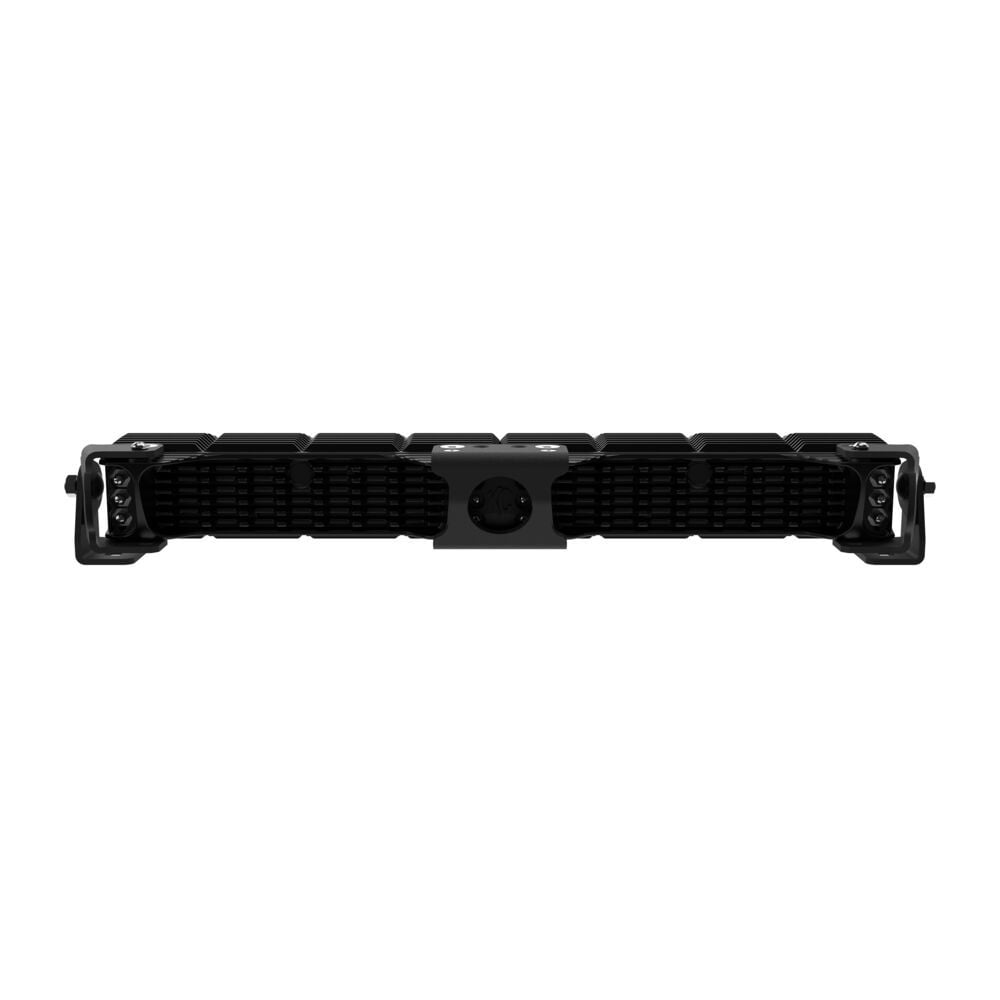

AMBER LED BACKLIGHT
The FE Bar helps you stand out in the crowd thanks to its Amber LED backlight. This can be used on-road or off-road, daytime or nighttime, and gives you an added touch of style.
Specs:
SKU 0292
Weight 13.000000
Wattage Per Light 24W / 216W
Total Wattage 24W (Amber Backlight) / 216W (High-Power)
Amp Draw Per Light 2.0a (Amber) / 18.0a (White)
Voltage 9V-36V
Lumens Per Light 15,824lm
Lux Per Light 3,220lx (Combo) / 3,600lx (Spot)
Candela Per Light 322,000cd (Combo) / 360,000cd (Spot)
Light Temp 5000 K
Lens Color Clear
LED Color Amber / White
Beam Pattern Combo What’s this?
Beam Distance 567m (Combo) / 600m (Spot)
Light Technology LED
Mount Location Bumper, Overhead, Roof
Size of Products 20″
Material Aluminum Alloy
Product Finish Black
Included Components 2 x KC® FLEX ERA® 10″ Bar , Wiring Harness with Weatherproof Connectors, Illuminated 3 Position LED Light Switch
Color Black
UPC 084709002923
IP Rating IP68
