The KC HiLiTES Gravity Pro6 50-inch overhead LED light bar (91336) mounts at the top of the windshield on your 2018+ Jeep JL Wrangler or JT Gladiator and lights up the trail with an astonishing 18,400 lumens, 5000K daylight beam. With the bolt-on design, and included hardware/a-pillar brackets, these kit mounts easily to factory locations on your Jeep. Take your Wrangler or Gladiator off-roading experience to the next level with this ultra powerful Pro6 roof/windshield LED light bar kit.
-(2) Jeep Wrangler JL / Gladiator JT Overhead Light Bar Mounting Brackets (driver and passenger sides)
-(2) Jeep Wrangler JL / Gladiator JT Add-On, A-Pillar Light Mounting Tabs
-(1) Gravity® Pro6 LED Light Bar
-(8) Light Covers; Black with Yellow KC Logo
-(1) Performance Plug-N-Play Wiring Harness with Illuminated LED Switch
With KC’s Jeep Wrangler JL / Gladiator JT Overhead Brackets and Gravity® LED Pro6 light bar over the windshield of your Jeep Wrangler JL or Jeep Gladiator JT, your rig will be taken to the next level. With a fully bolt-on design, these mount securely to factory locations and include upgraded hardware. This kits also include a-pillar brackets for a well-rounded lighting setup. Also includes the full wiring harness with switch, and silicone protectors that go in between the bracket and the vehicle to protect your Jeep’s paint.
NOTE: Does not fit Jeep Gladiator Mojave or 392 Edition
The KC Gravity® LED Pro6 Light Bar is an industry first, allowing users to be in full control of their lighting needs. Featuring KC’s patented Infinity Ring™ System, the Pro6 LED light bar is modular, expandable, and adjustable. The Infinity Ring™ system via it’s unique hinge design allows users to easily transform the Pro6 light bar between a straight and curved orientation, with adjustable widths between 20″- 57″. Every Pro6 system is powered by a chain of individual, 20W Gravity LED Pro6 inserts which take advantage of KC’s patented Gravity Reflective Diode technology. This translates to unparalleled light clarity, output, low amp draw and an usable beam pattern. If you are looking for the ultimate performance led light bar for your Jeep, Truck or UTV, KC’s Pro6 LED light bar system has you covered. All Pro6 LED Light Bars are priced with vehicle specific mounting kits (Pro6 Universal LED Light Bars do not come with mounts)
– Pro6 patented Infinity Ring™ System: Easily transform the Pro6 light bar between straight or curved light orientations
– Every Pro6 is powered by KC patented Gravity® Reflective Diode(GRD) technology for unparalleled beam shape, light performance, and clarity
– Gravity® G6 LED reflector optics utilizing a combination of Driving and Wide-40 Beam pattern lights for optimal lighting balance and performance
– Modular design is expandable to different size widths and beam patterns to suit specific applications
– Light Bar in 50″ 8-Ring
– Does not fit Jeep Gladiator Mojave or 392 Edition
– Raw Lumens: 50″ = 18,400 lm
– Lux @ 10 Meters: 50″ = 6,700 lx
– Candela: 50″ = 670,000 cd
– Beam Distance (Meters): 50″ = 1,637m
– Wattage: 50″ =160W
– Amp Draw: 5.0-14.67A
– LED Source: Cree XPL HD LED
– LED Color: 5000K
– Voltage: 9-32V
– IP Rating: IP68 – Dimensions: 50″ 8-Light = H – 6.06″ x D – 3.33″ x W – 51.625″
Type Vehicle Light System
Collection Gravity LED, Pro6
Material Aluminum Alloy
Amp Draw 13.04 a
Beam Distance 1,414 m
Beam Pattern Combo What’s this?
Candela 500,000 cd
DOT Compliant No

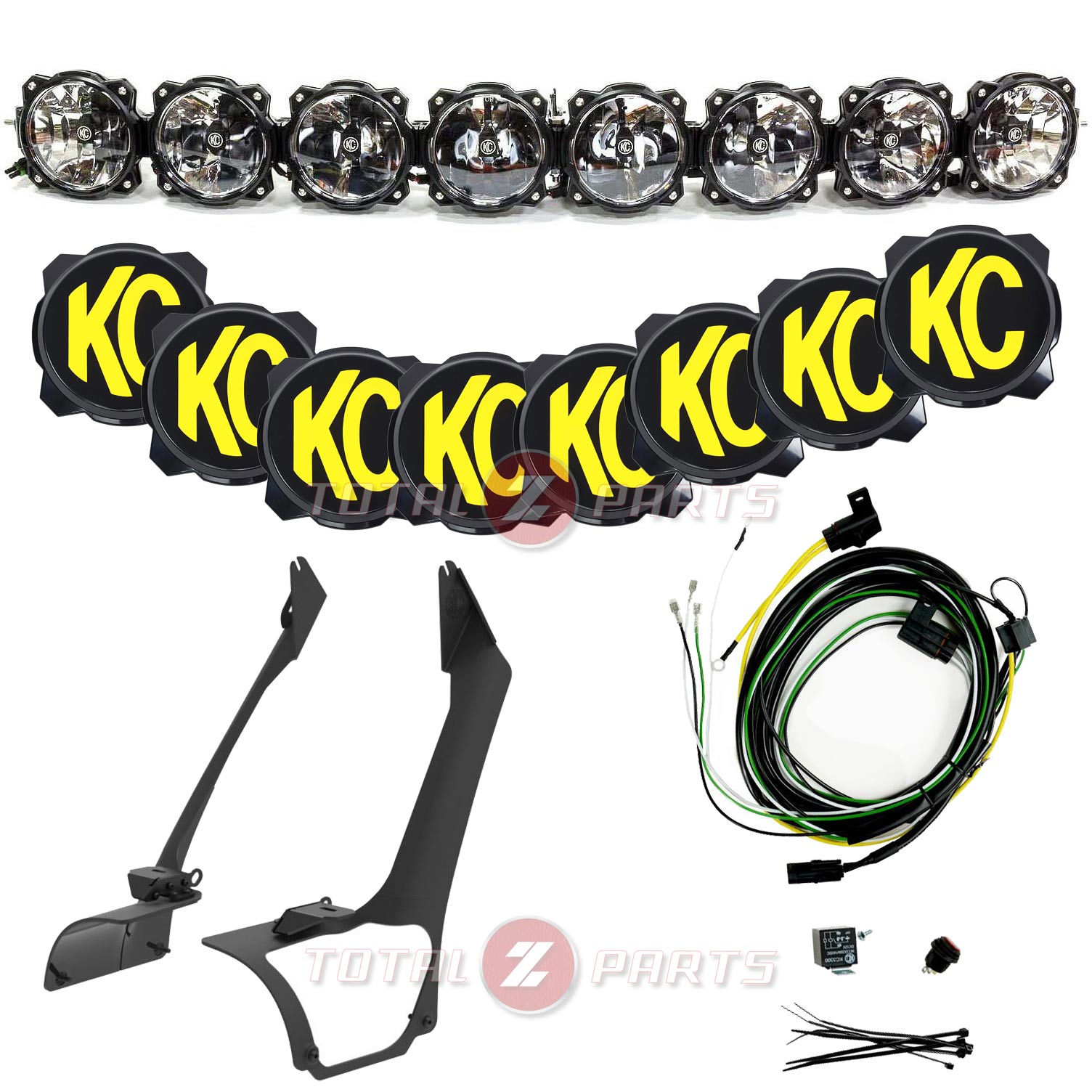

In The Box 50″ 8-Light Gravity® LED Pro6 Light Bar, 18-Current Jeep Wrangler JL/JT windshield mounting bracket set, 8 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
IP rating IP68
Light Color White
Lens Color Clear
Light Temperature 5000K
Lumens 19,616 lm
Lux 5,000 lx
Product Dimensions W – 51.625″ x H – 6.06″ x D – 3.33″
Prop 65 No
PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY
Each Gravity® LED Pro6 light is powered by KC’s G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry-leading technology and reflector design assure that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off-road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance, and beam shape.
PATENTED INFINITY RING™ SYSTEM
As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars to feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6″ Pro6 LED lights together to form a rigid, powerful LED light light bar system. The unique hinge and bolt design in every ring allows for endless modularity, expandability, and adjustability to suit your lighting needs. This means the seamless transition between straight, radius, or hybrid radius light bar orientations to angle lights exactly how you see fit.
COMBO BEAM PATTERN FOR COMPLETE LIGHTING COVERAGE
Gravity LED Pro6 light bars are specifically configured using a combination of SAE/ECE Driving and Wide-40 G6 LED optical inserts. The combination of different reflector optics provides a broader range of visibility and homogenous light beam shape, for more usable lighting coverage. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide-40 beam offers a wider area of coverage, increasing side to side peripheral visibility. This not only results in incredible light output distance but also evenly balanced light distribution and beam shape that translates to light output that you can actually use for all of your off-road lighting adventures.
RACE-TESTED DURABILITY AND CONSTRUCTION
Inspired by endurance racing and tested by KC endurance racers worldwide, the Pro6 is set to break all performance barriers while providing the most durable, robust and scalable LED light bar design available today.
2018, 2019, 2020, 2021, 2022
