Description
KC HiLiTES 6-inch round Gravity Pro6 pair (driving DOT SAE beam pattern) with KC ditch light brackets for 2021-2025 Gen 3 Ford F-150, F-150 Raptor, and F-150 Lightning. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
Please Note: the photos of the F-150 with the ditch light brackets mounted are showing a different model of lights; the photos of the truck are to demonstrate the mounted position of the included ditch brackets. This kit includes a pair of round 6-inch Pro6 lights.

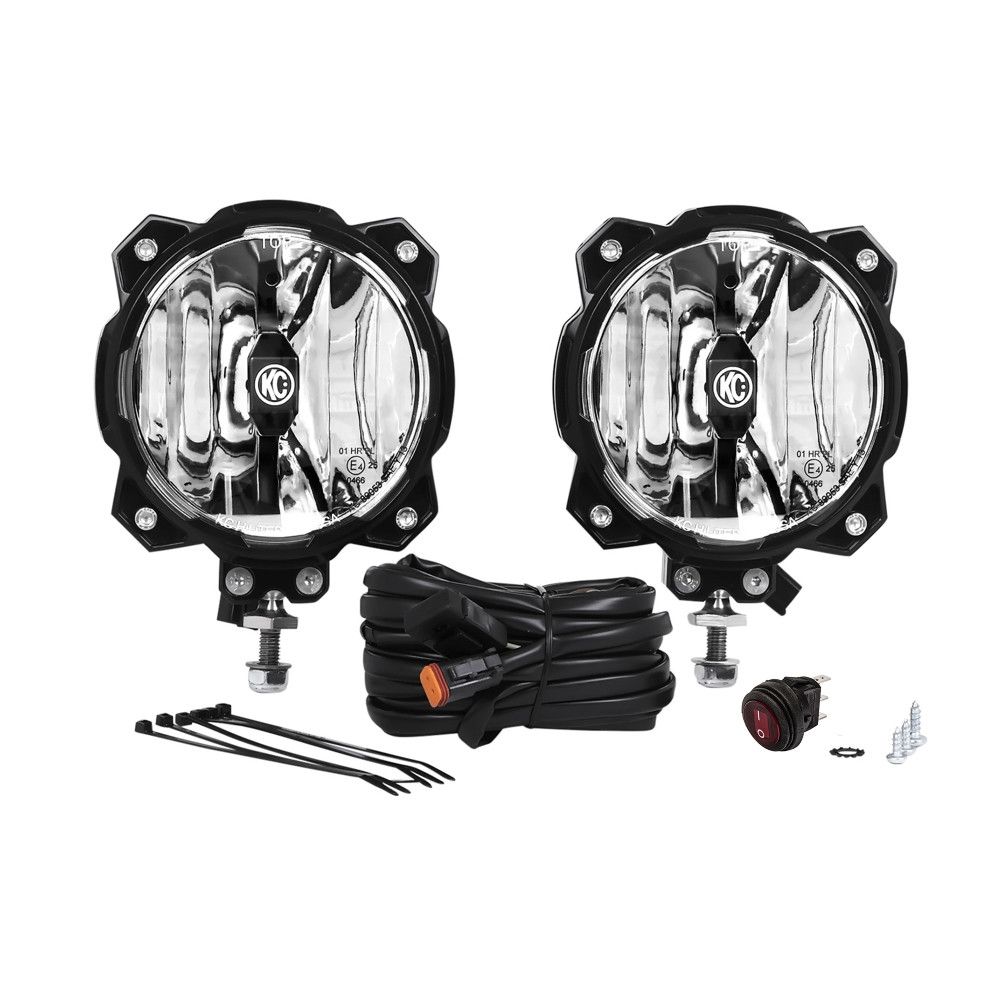

PARTS INCLUDED
-(2) LED Pro6 Single Driving Lights
-(2) Black light covers with KC logo
-Mounting Hardware
-(1) Complete Plug-N-Play Wiring Harness with 30 amp LED Switch
-(2) KC Hilites Pillar Mount Bracket w/Hardware for 21-Up Gen 3 Ford F-150
The Gravity® LED Pro6 Single is an LED off-road light using the patented Infinity Ring™ housing encasing a Gravity LED G6 optical insert and mounts via an all-new ball-mount system, giving you output and versatility in one
FEATURES
-Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
-Patented Infinity Ring™ system houses the Pro6 Single and mounts via an all-new, universal ball mount that is highly adjustable
-Driving beam pattern gives you an exceptional balance of spread and spot lighting in one beam pattern
-High output, low amperage draw
PERFORMANCE GRAVITY® LED OPTICS
Patented Gravity LED G6 optical inserts to provide exceptional efficiency and light output with a Driving beam pattern and 20 watts of power
INFINITY RING™ SYSTEM
The patented Infinity Ring™ system provides a race-proven housing for the Pro6 Single that is strong, durable and gives you a unique look for your vehicle
UNIVERSAL BALL MOUNT
The Pro6 Single comes ready to mount to any flat mounting surface with a highly adjustable ball mount. This universal ball mount easily attaches to many vehicles, including your Jeep, Truck or UTV
LIGHT PERFORMANCE & SPECS (PER LIGHT)
Compliance DOT/SAE/ECE DOT, SAE J581, ECE R112 (Driving)
Wattage Per Light 22.56W
Total Wattage 45.12W
Amp Draw Per Light 1.88a
Total Amp Draw 3.76a
Voltage 9V-36V
Lumens Per Light 2,538lm
Total Lumens 5,076lm
Lux Per Light 663lx
Total Lux 1326lx
Candela Per Light 66,280cd
Total Candela 132,560cd
Light Temp 5000 K
Lens Color Clear
LED Color White
Beam Pattern Driving
Beam Distance 364m
Light Technology LED
Mount Location A-Pillar / Ditch, Bumper, Overhead
Size of Products 6″
Material Aluminum Alloy
Product Finish Black
Included Components 2 x Gravity® LED Pro6 Driving SAE/ECE Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x KC Pro6 Light Cover, Mounting Hardware
Color Black
Product Dimensions W: 6 ” x H: 7 ” x D: 3.125 ”
UPC 084709913038
IP Rating IP68
