The Magellan TN1840SGLUC TRX7 CS Pro with Ram Dual Mount is a GPS powerhouse with every feature you need to navigate roads and off-road trails with confidence. The TRX7 is Waterproof, Dustproof, Drop and Shock-Resistant, and comes pre-loaded with over 160,000 4WD, ATV, Motorcycle, and Snowmobile Trails across the United States. The included RAM dual mount allows you to attach TRX7 CS Pro GPS Navigator to any windshield with an extremely rugged suction cup, or a clamp which fits 1″ to 1.25″ tubing. The built-in high resolution 8MP rear-facing camera can auto-start recording when you approach a trail, and is great for snapping high quality stills or recording video on demand. You can even utilize the 7″ touch screen display to instantly play back photos and video right on the device. The intuitive turn by turn navigation system gives you visual and audio signals to help you reach your destination with confidence, whether your on back roads or navigating off-road dirt trails.

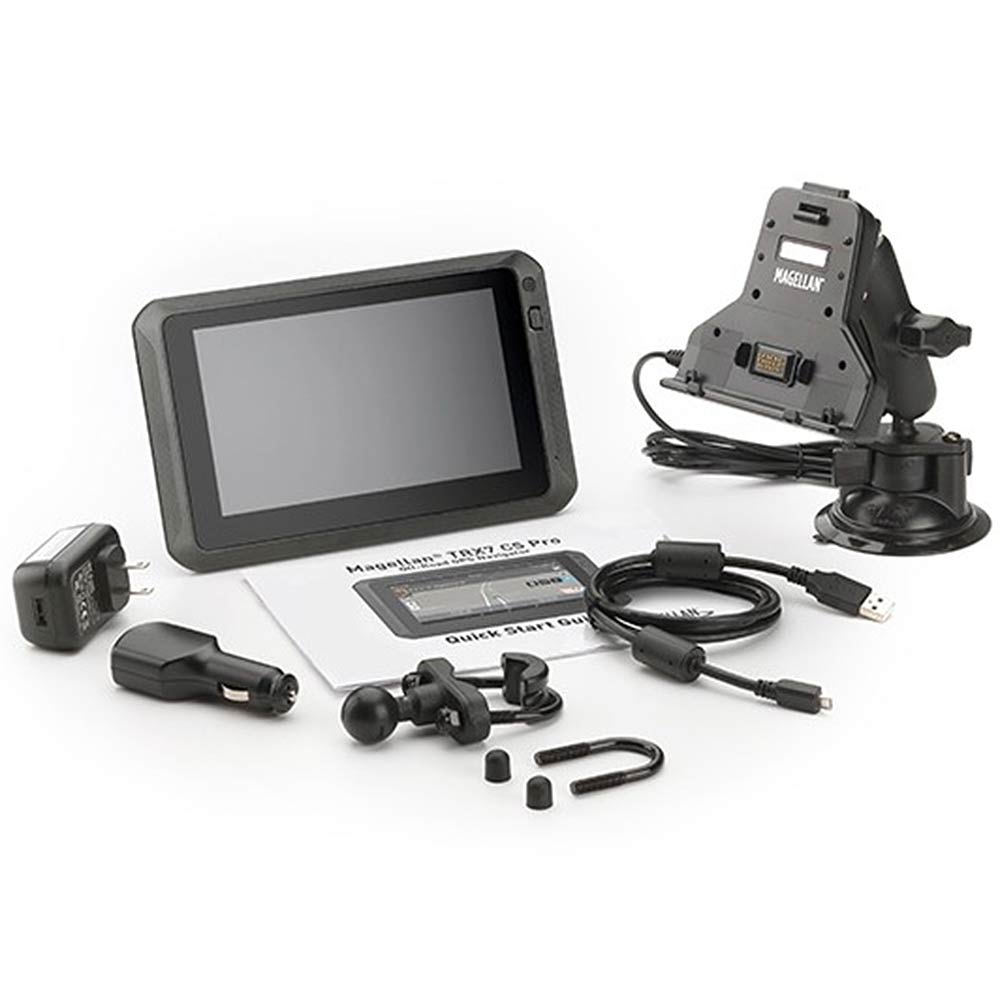

What’s in the box:
TRX7 CS Pro GPS Receiver
Magellan Quick Release Power Cradle With Fixed USB Cord
RAM® Dual Mount
Vehicle Power Adapter
Quick Start Guide

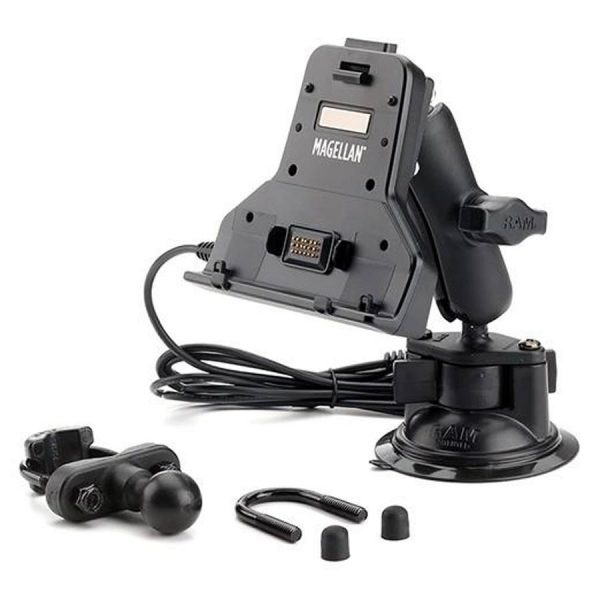

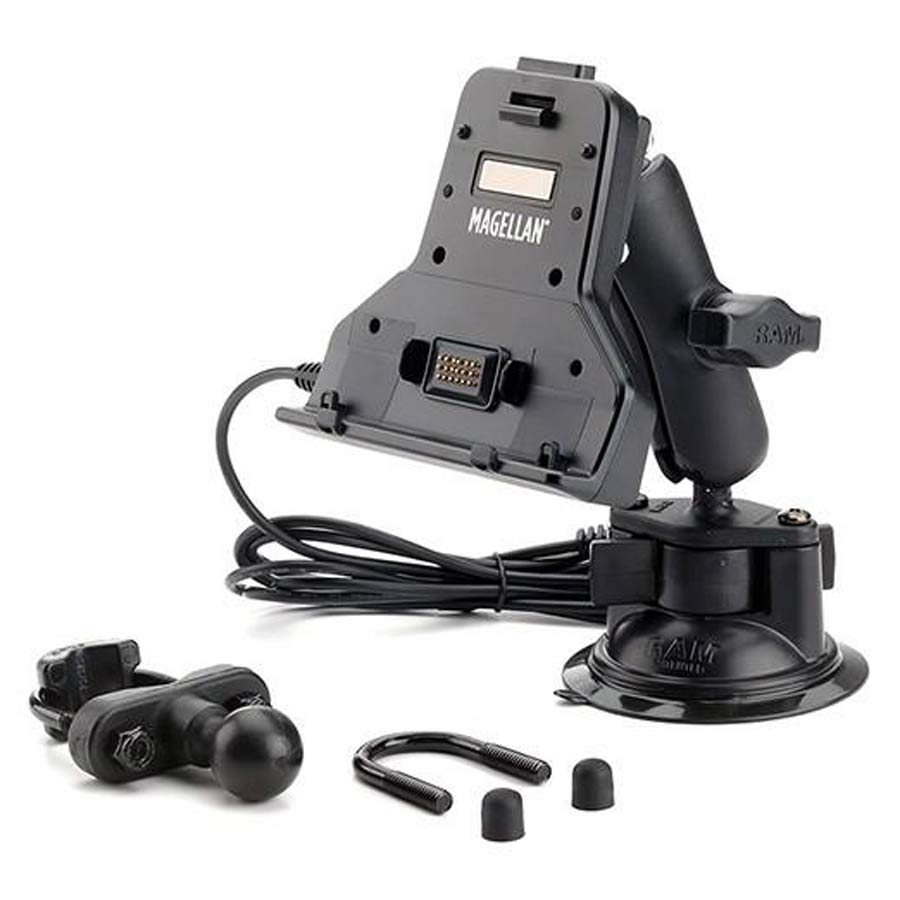

RAM® Dual Mount:
Mounting system includes quick release power cradle and RAM® double socket arm, 3.3″ suction cup and 1″-1.25″ rail mount.
Ruggedized IP54 Casing
Drop and shock resistant casing that is also water and dust proof.

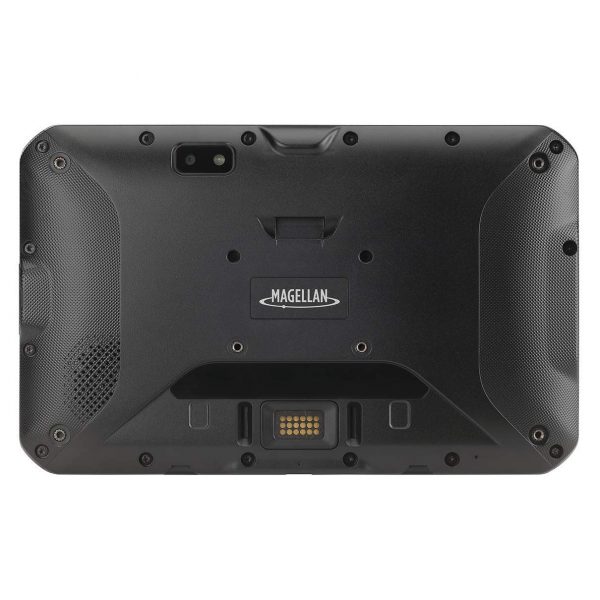

Built-in 8MP rear-facing camera
• Built-in high-resolution 8MP camera that records stills, panorama and video with LED flash.
• Instant Video Playback on the Device
• Auto-Start Recording When Approaching Trails
Optional Recording Modes
Recordings with optional gauge overlay or time-lapse modes for adventure video.

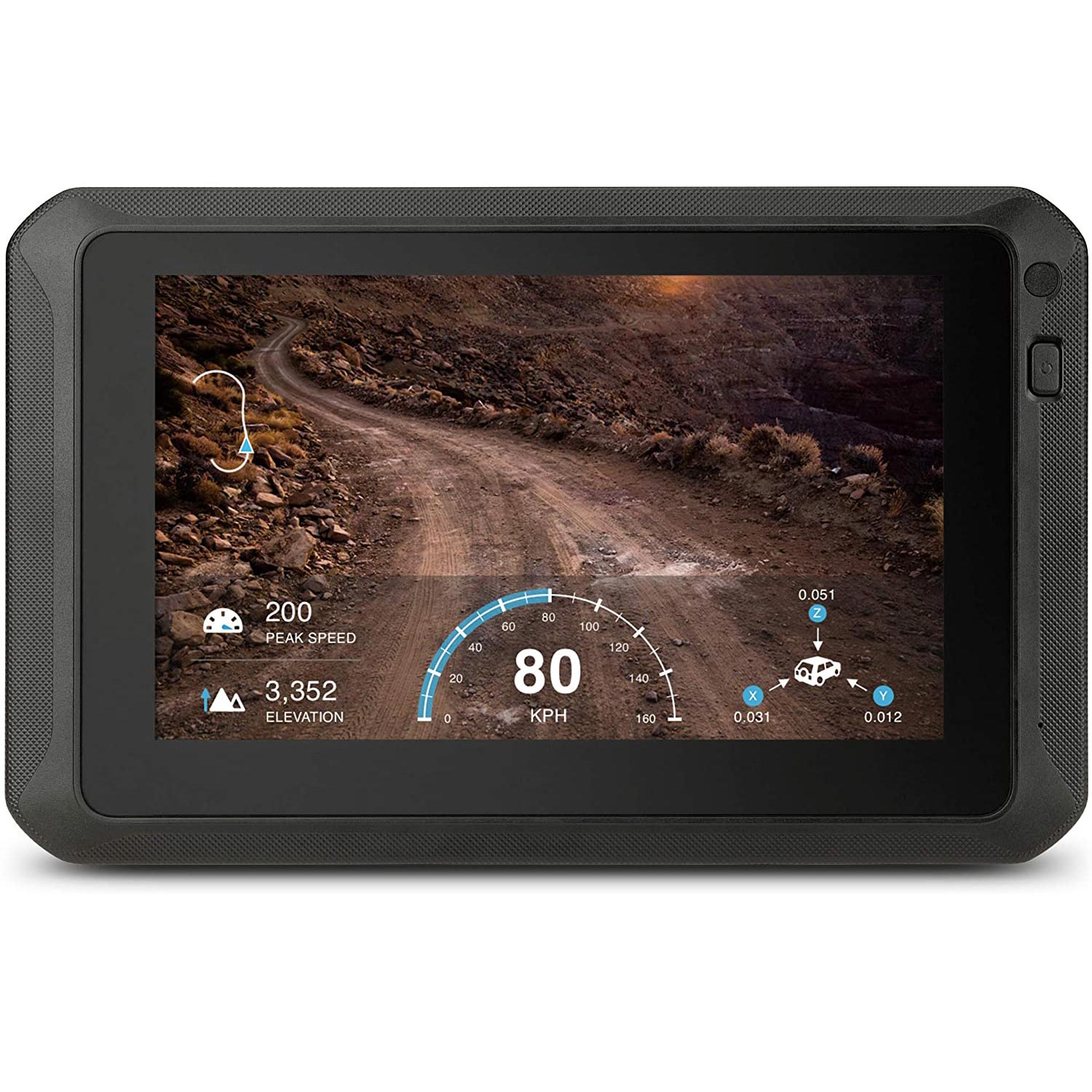

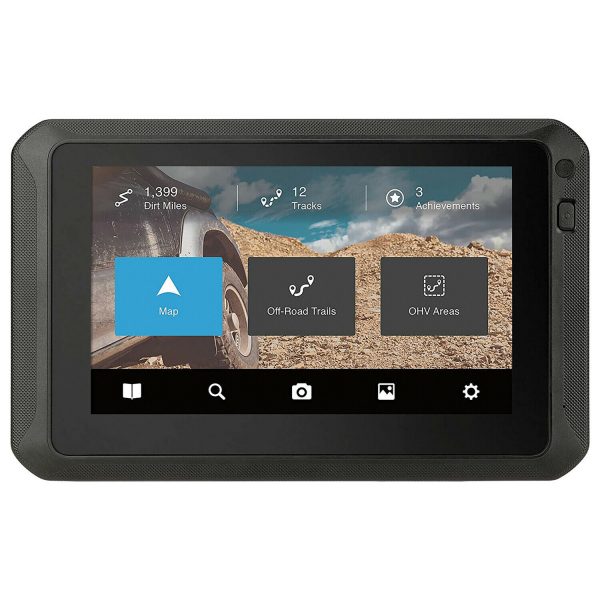

7″ Touch Screen Display
Extra-large, vibrant, sunlight-readable display with day and night views for easy visibility.
Turn-by-Turn Trail and Street Navigation
Get visual and audible navigation guidance whether you’re navigating off-road trails or streets on your way to your destination.
Over 160,000 Preloaded Designated OHV Routes
The most US OHV trails including 4WD, ATV, motorcycle and snowmobile trails.
Online Community Track Database
On TRX Trailhead discover new crowd-sourced tracks and plan on- and off-road routes.
Hi-Res (10M) 2D Topo and 3D Basemap
See high-resolution 2D or 3D map imagery and get free map updates with newly loaded trails several times each year.
Publish User Tracks
Save your tracks and publish them to our crowd-sourced track database, where users can quench their thirst for adventure with custom tracks.
Create Off-Road Waypoints
Waypoint types and marker sets to easily mark meetup locations, scenic views, campsites, obstacles, and more.
Access your account, search, save, and see your position any time you’re away from your TRX device.
Hit the Backtrack button anywhere along your track to route your vehicle back to your current track’s starting point.
The Magellan TRX7 CS Pro Trail and Street GPS Navigator with a Camera Highlight is now presenting you more exceptional features. With a built-in 8MP camera, the TRX7 CS Pro will auto-start recording when approaching trails. The gauge overlay or time-lapse modes are optional for adventure video. Instant video playback on the device is always a good idea to watch again your extraordinary performance.
Product Number TN1840SGLUC
Dimensions (English) 5.2″ x 8.3″ x .82″
Dimensions (Metric) 132mm x 210.7mm x 20.9mm
Weight (English) 15.34oz
Weight (Metric) 435g
Battery Type Lithium-ion rechargeable
Battery Capacity 4000 mAh
Camera 8MP with LED Flash
CPU ARM Cortex-A7, 1.3GHz
Expandable Memory Up To 128GB on microSD card
Temperature Range (F) 14° to 140° F
Temperature Range (C) -10° to 60°C
Suspend Mode Yes
Internal Memory 16GB
SD Slot Yes
Water Resistance IP54
The TRX7 CS Pro comes preloaded with over 160,000 designated OHV routes from forest and public lands and includes Magellan’s award-winning street navigation to get you from your starting point to the trail. Search trails using your TRX7 CS Pro or search for trails in a constantly growing crowdsourced track database on www.TRXTrailhead.com. Magellan’s trail database contains over 160,000 OHV routes and user-generated tracks created by fellow off-roaders. The community database is accessible by desktop, tablet, or mobile device. Crowd-sourced tracks contain personal observations so that you can search for them by location, track difficulty, rankings, and more.
You can also review trails and their attributes before you head out to the trail, then save to a list of favorites for future rides. View map imagery when you search for trails on www.TRXTrailhead.com, and read all of the observations and rankings to get the latest trail information so that your off-road adventures are safer and more enjoyable.
The TRX7 CS Pro’s intuitive interface makes following trails and recording your own tracks simple. Using either a saved trail from your favorites or a preloaded trail on the device, simply tap “Follow” once the trail is selected. Once you’re on the trail, the TRX7 CS Pro helps identify land features and minimize surprises for safer off-road navigation by providing a high-resolution (10M) 3D terrain map view and a 2D topo view with contour lines that cover USA and Canada.
With one touch, you can also start tracking while you’re driving, and the TRX7 CS Pro automatically starts bread-crumbing your track. When recording a track, the TRX7 CS Pro makes it easy to save waypoints and personal observations. While tracking, TRX7 CS Pro limits you to selecting only a waypoint type. With a few quick taps, you can save a waypoint to your track with no hassle. When you stop your vehicle and pause tracking, the TRX7 CS Pro allows you to do much more detailed waypoint creation. Once paused, you can mark waypoints using audio recording, coordinates, current location or point on map, or you can select a type of waypoint, name it, add photos, and more. When you save or publish your track, all of your waypoints and observations are saved with the route so the next off-roader following your track will know about any obstacles or beautiful views that await them.
Share your progress with friends and family with the Social Post (hashtag) button, which sends an automatic preconfigured Tweet from the trail. Your Tweet will post right away if you’re using your phone as a hotspot, or it will automatically send once the TRX7 CS Pro is connected to Wi-Fi. Link your Twitter and Instagram accounts, and you can share your trail updates and photos with your social network. Publish your tracks to the community database on www.TRXTrailhead.com so that any fellow off-roader can access your track and see attached waypoints and observations. When navigating a track with saved waypoints, you’ll see pop-ups notifying you of any upcoming waypoints. By giving off-roaders access to this information, you can be more aware of your fellow off-roaders’ observations for safer and more enjoyable trail riding experiences.
Other TRX7 CS Pro safety features include off-course notifications and Backtrack. The TRX7 CS Pro warns you whenever you veer off course to quickly get your vehicle back on track. At any point along a track, select the Backtrack feature and you’ll be guided safely back to the trailhead, campsite, or any current track starting point.
The TRX7 CS Pro’s track saving and publishing features are key to building the off-road community. Before saving a track, you can enter info on 4WD use, trail conditions, obstacles, and more. Enter all the details when you save or do a simple one-touch save and go back to add more details later before you publish your track. Saved tracks are wirelessly uploaded to your TRX account when you connect the TRX7 CS Pro to Wi-Fi. You can publish the track to the Magellan TRX community database, allowing fellow off-roaders to search your tracks, view your observations and check out your route.
Download the Magellan TRX companion app for iOS or Android to access your account, search, save, and see your position any time you’re away from your TRX7 CS Pro device.

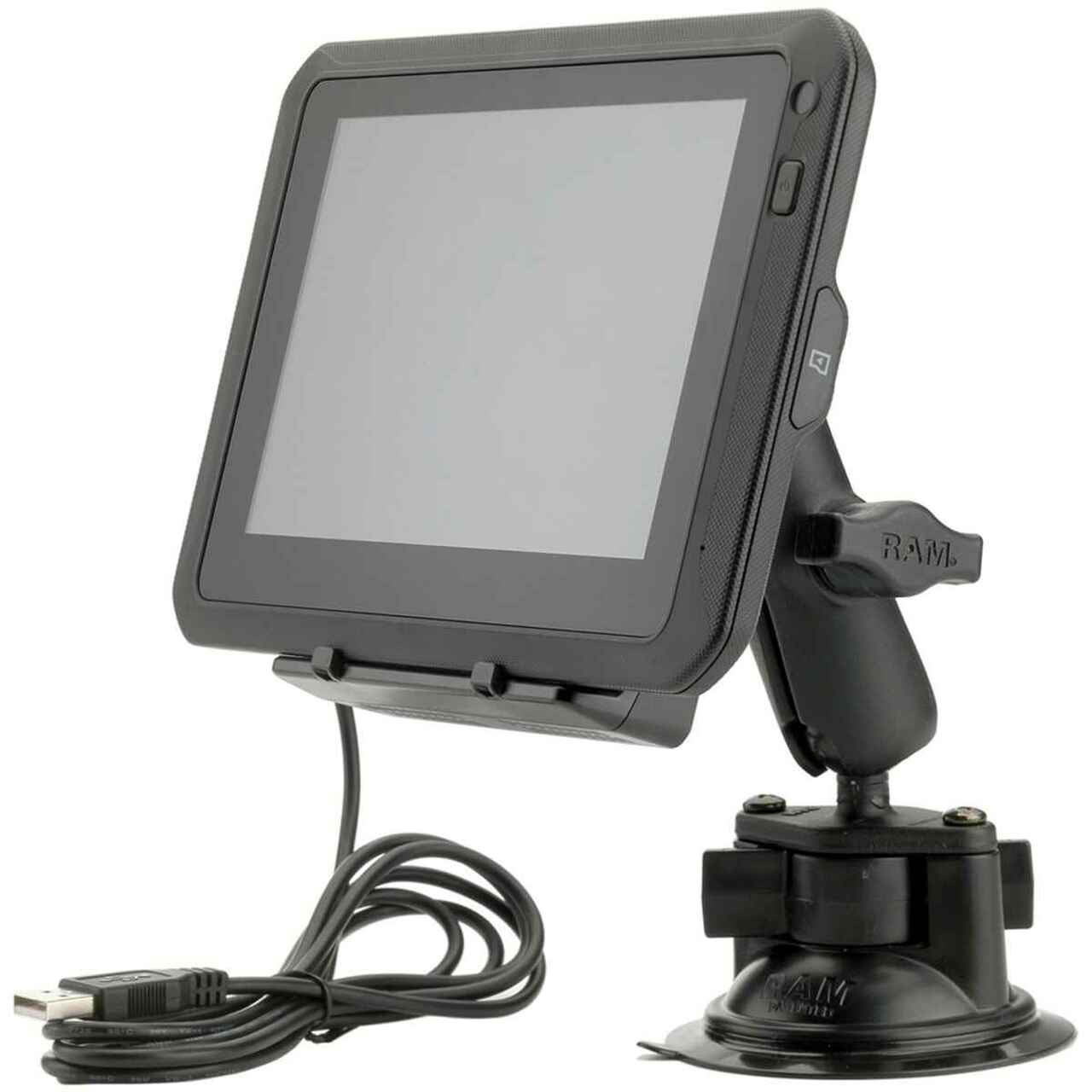

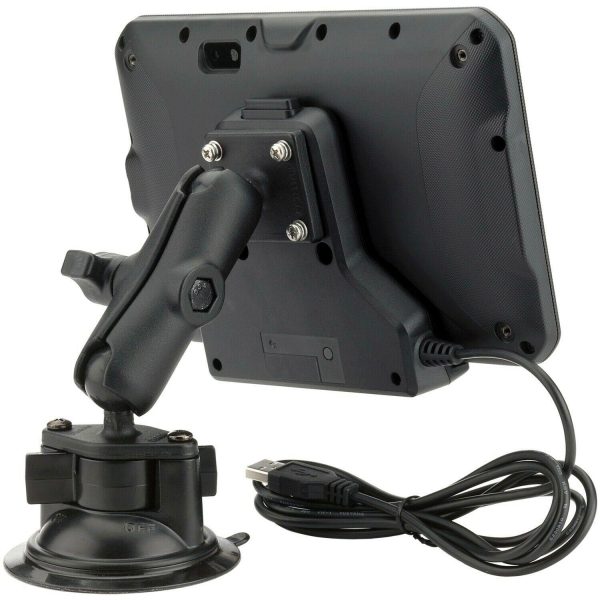

New RAM Dual Mount (included) allows attaching your TRX7 CS Pro GPS to any windshield with an extremely rugged suction cup or 1″ to 1.25″ tubing.
With the TRX7 CS Pro, you’re not only helping build an off-road community: you’re building a personal off-road résumé. Receive and collect Achievement badges and Dirt Miles for places visited and the amount of miles you’ve tracked. The Magellan TRX7 CS Pro Trail and Street GPS Navigator with a Camera Highlight – the only off-roading GPS built for true explorers.
