Description

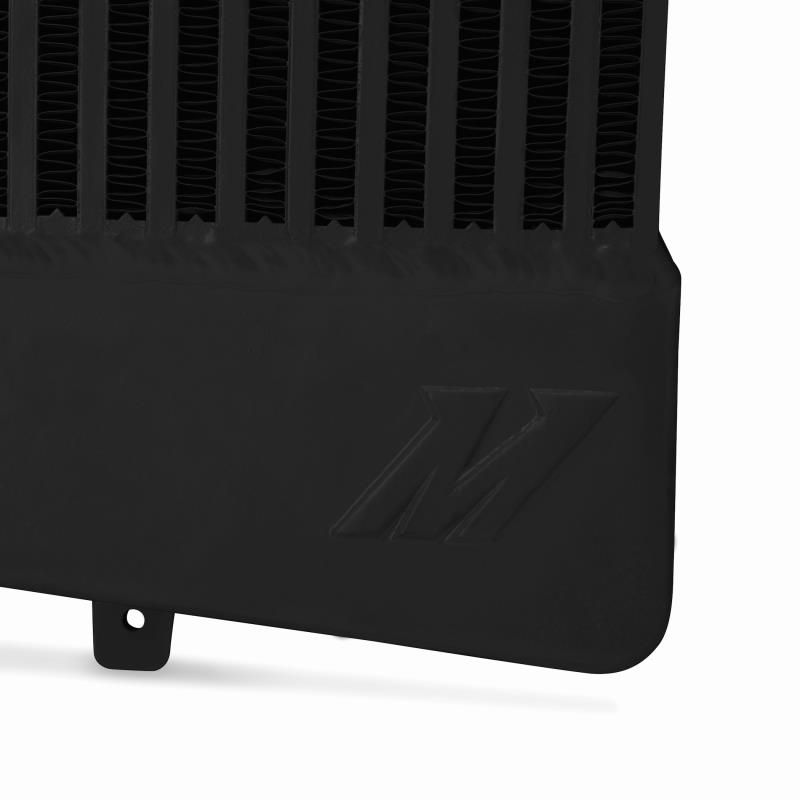

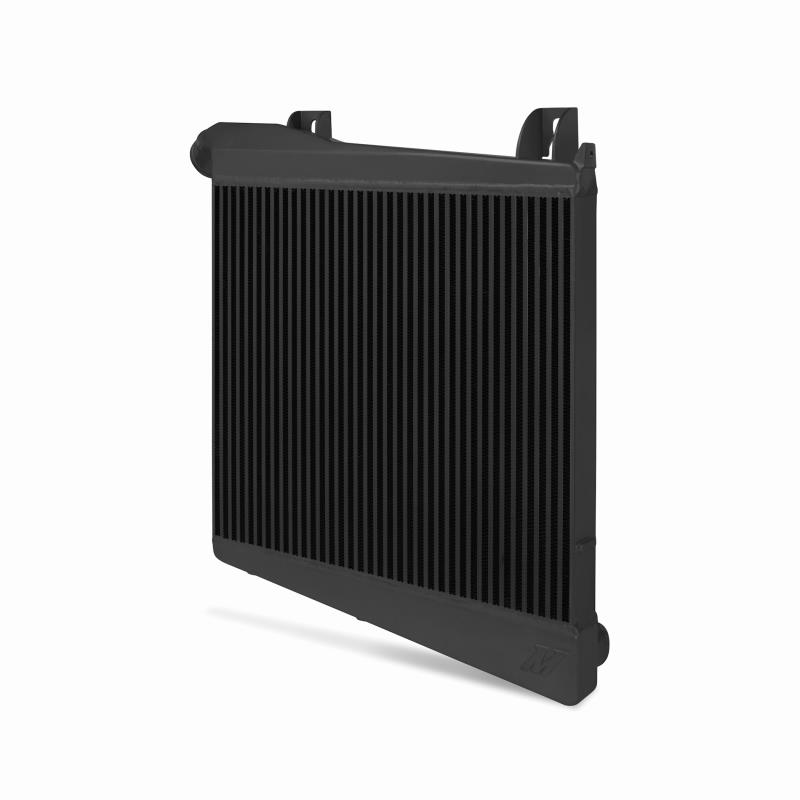

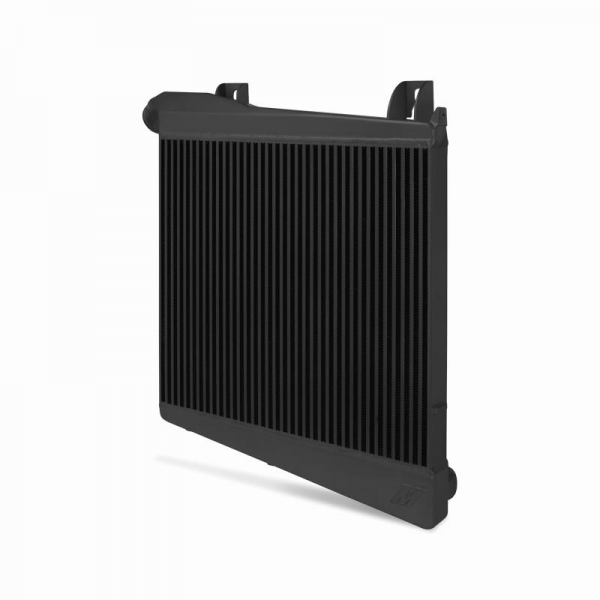

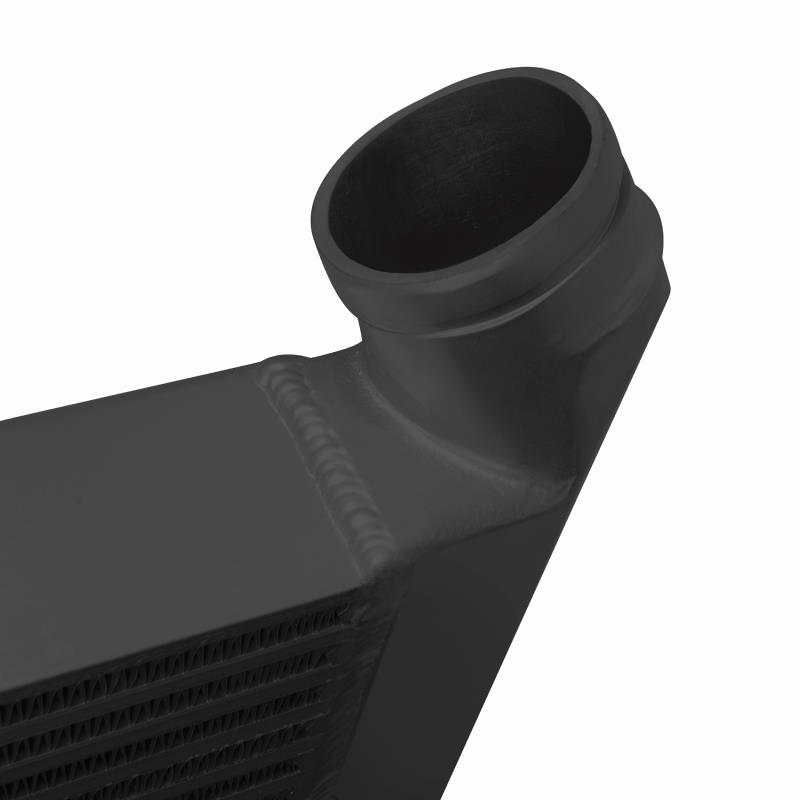

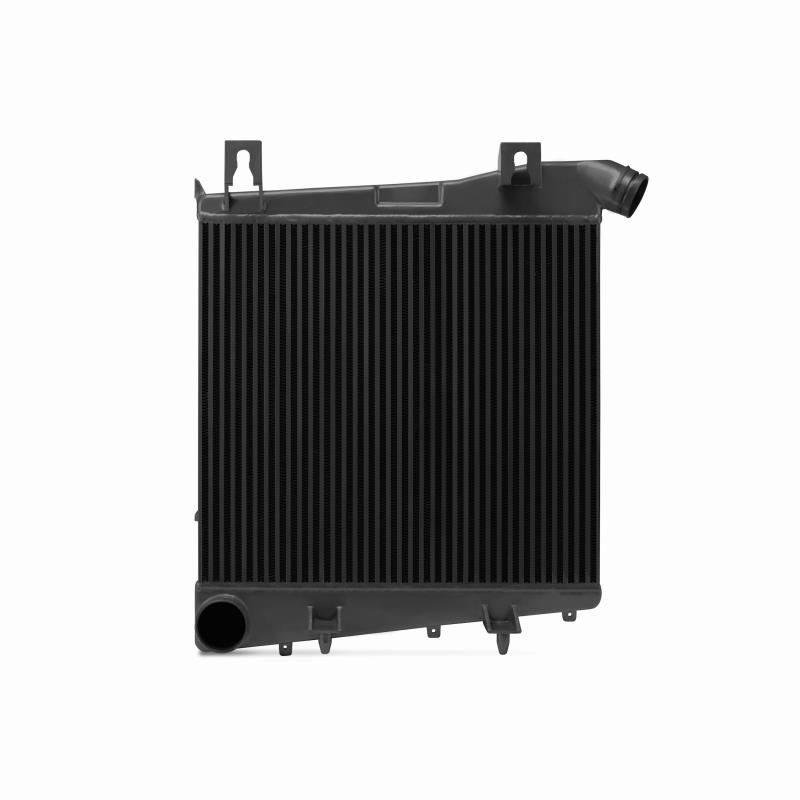

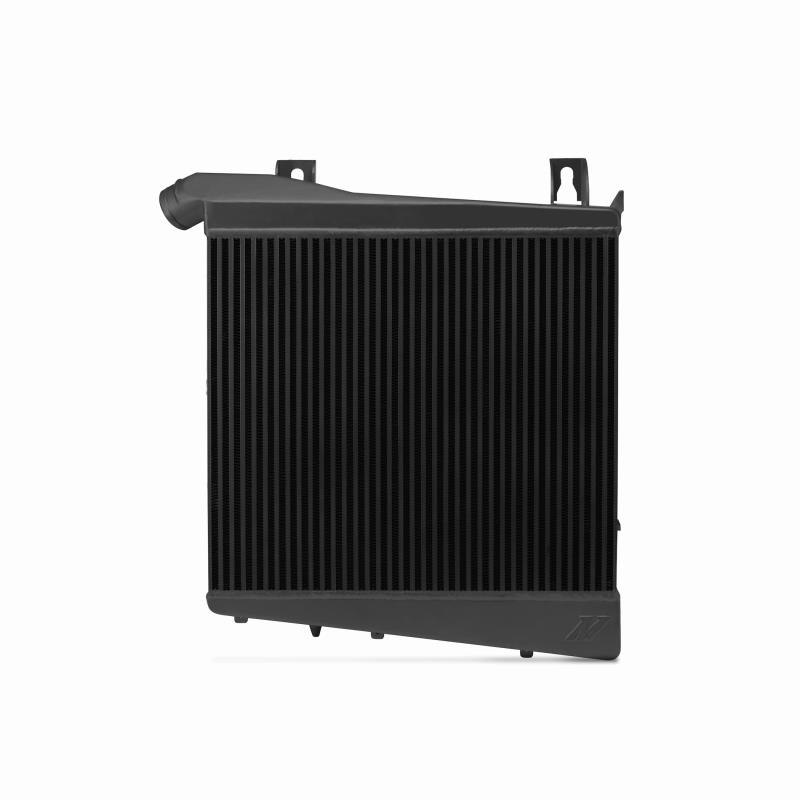

Mishimoto high performance cast aluminum intercooler for a 2008-2010 Ford F-Series Powerstroke 6.4L Diesel V8 (see specific models below). Install this to reduce turbo stress, extend the life of your turbo, reduce pressure drop, decrease intake temperatures, and improve airflow. No modifications required for installation; this intercooler is a direct fit.
Fits
2008, 2009, 2010 Ford F-250 w/ 6.4L Powerstroke
2008, 2009, 2010 Ford F-350 w/ 6.4L Powerstroke
2008, 2009, 2010 Ford F-450 w/ 6.4L Powerstroke
2008, 2009, 2010 Ford F-550 w/ 6.4L Powerstroke
Manufacturer Info:
Direct fit for the 6.4L Powerstroke
Lower AITs 21%
50% less pressure drop than factory
Installs in 30 minutes
All-aluminum cast end tanks
Bar-and-plate core
18% thicker than stock
20% larger core volume than factory
Reduces turbo stress and extends life
Available in Sleek Silver or Stealth Black

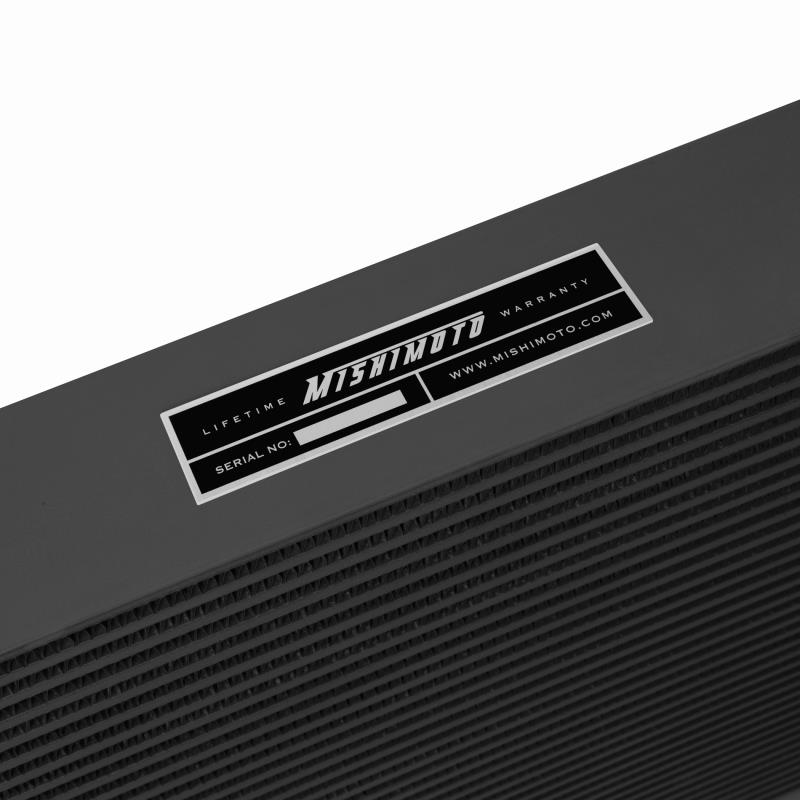

Mishimoto Lifetime Warranty
Tank Wall Thickness
4mm
Outlet
Quick Disconnect
Core Length
25.51″
Core Height
23.11″
Core Width
2.76″
Inlet
3.23″
Core Size
25.51″ x 23.11″
Overall Width
5.1″
Overall Height
31.9″
Overall Length
28.9″
Construction
Bar-and-Plate
Make
Ford
