Description

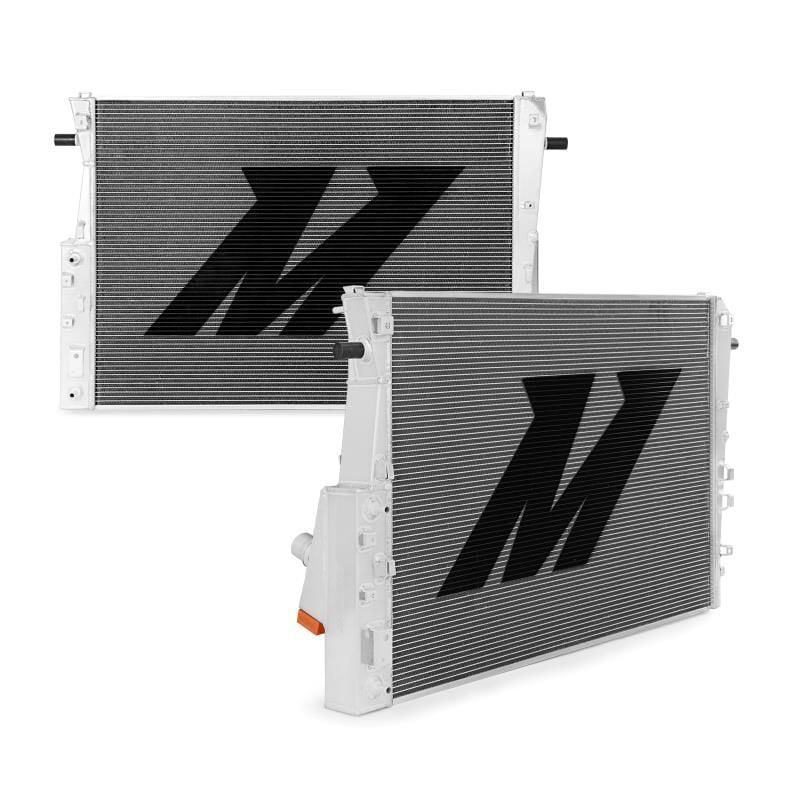

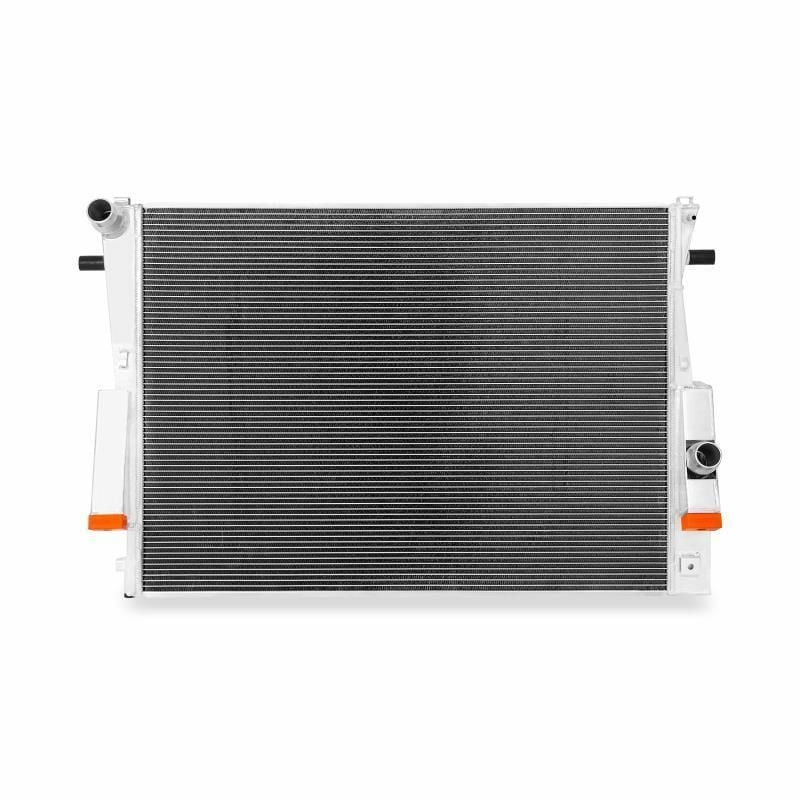

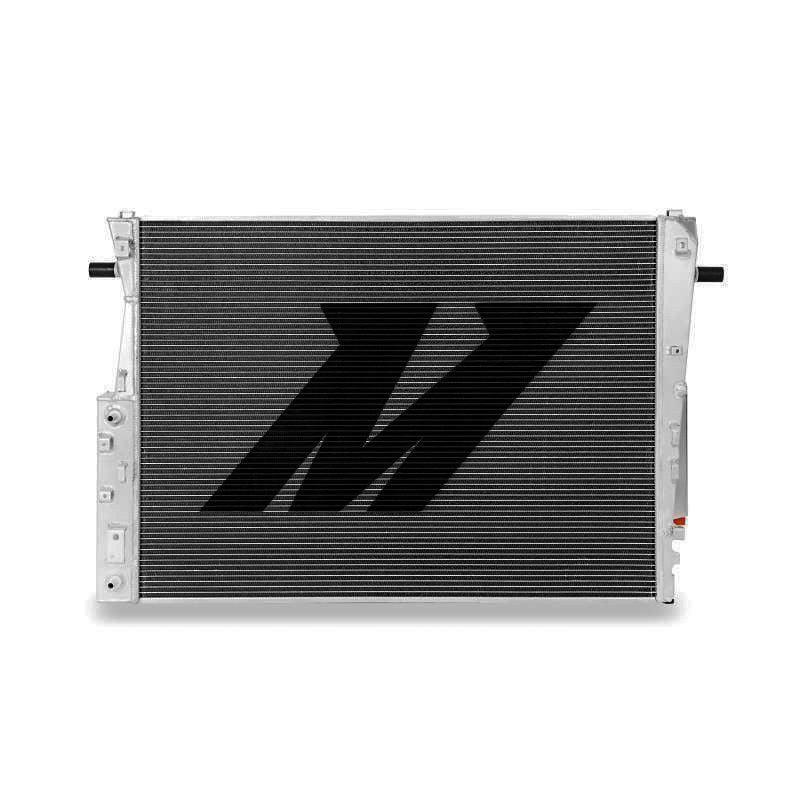

Mishimoto high performance aluminum radiator (Version 2 design) for a 2008-2010 Ford F-Series Powerstroke 6.4L Diesel. Install this radiator to instantly lower engine temps while improving the performance and longevity of your engine. Made to fit directly in place of your OEM radiator. No modifications required.
Fits
2008-2010 Ford F-250 w/ 6.4L Powerstroke
2008-2010 Ford F-350 w/ 6.4L Powerstroke
2008-2010 Ford F-450 w/ 6.4L Powerstroke
2008-2010 Ford F-550 w/ 6.4L Powerstroke
Manufacturer Info:
Version 2 product design
Direct fit for the 6.4L Powerstroke

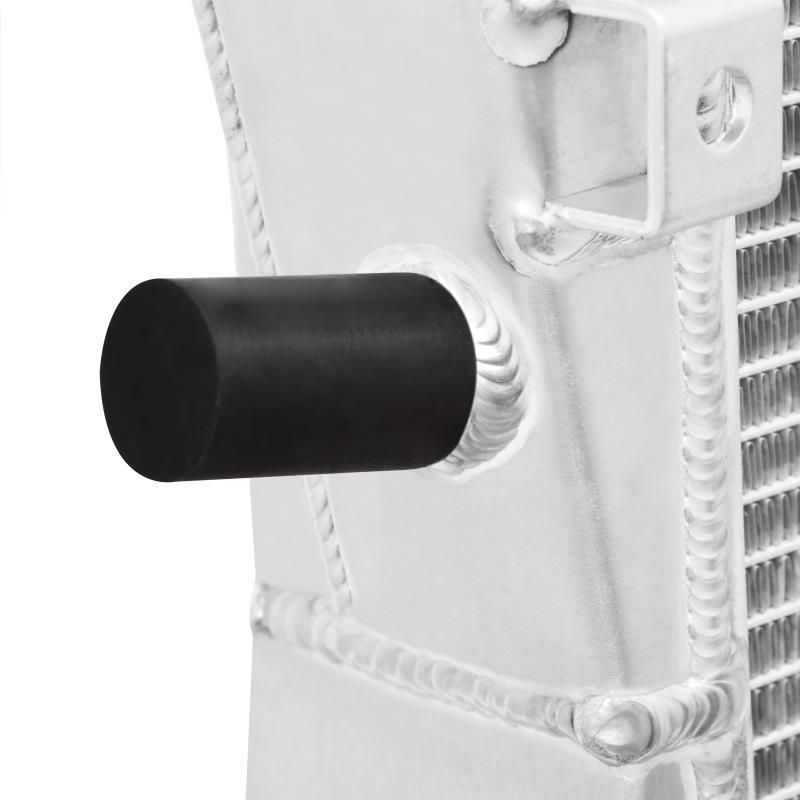

Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck’s torque transfer to the radiator
Incorporates internally strutted tubes in the top and bottom 8 rows for increased strength against high pressure and temperature
Strengthened top and bottom core support plates prevent core torquing and bending

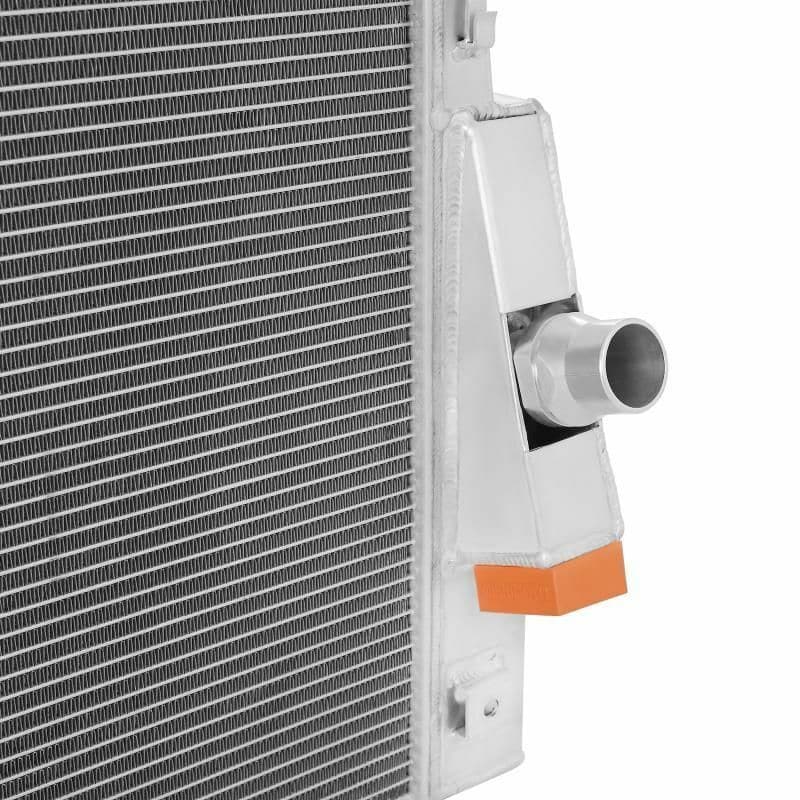

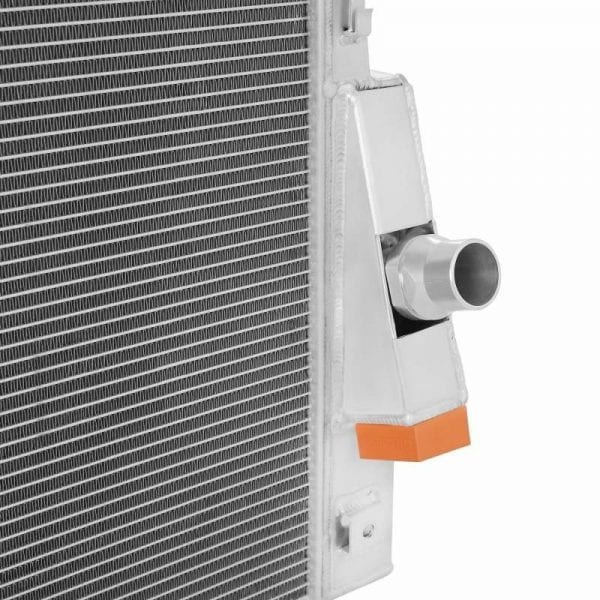

CNC-machined factory-style quick-disconnect inlet and outlet
100% brazed aluminum core
TIG-welded to perfection
Includes magnetic drain plug
U.S. Patent Number: D717,702 S

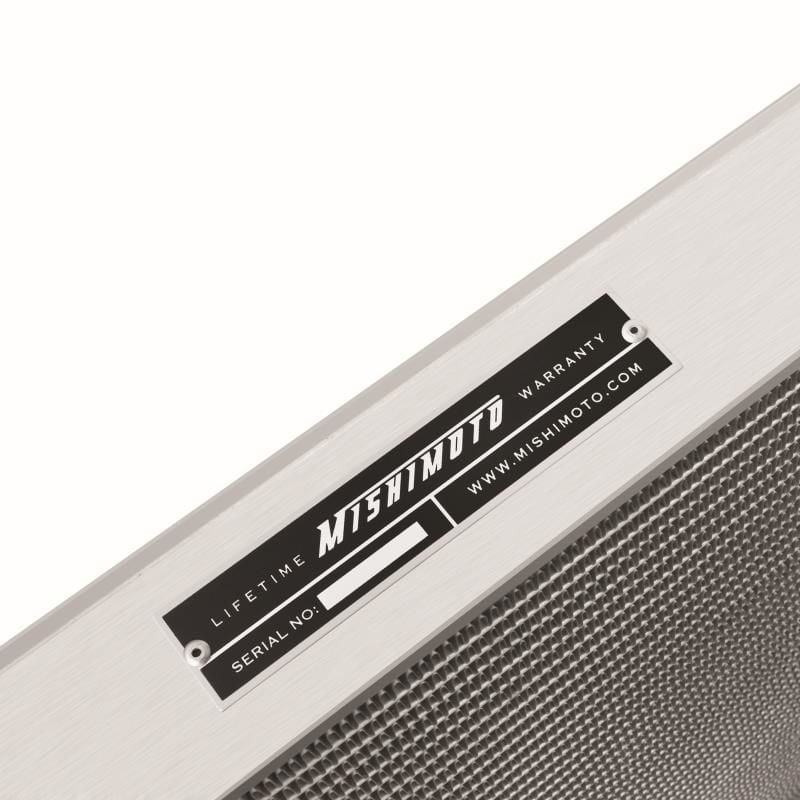

Mishimoto Lifetime Warranty
Material
Aluminum
Patent number
U.S. Patent Number: D717,702 S
Fits
2008-2010 Ford F250 w/ 6.4L Powerstroke
2008-2010 Ford F350 w/ 6.4L Powerstroke
2008-2010 Ford F450 w/ 6.4L Powerstroke
2008-2010 Ford F550 w/ 6.4L Powerstroke
Overall Height
45.7″
DPI
13022
Drain Plug Thread Size
(M12) x 1.5
Overall Length
28.7″
Tank Wall Thickness
0.098″
Outlet
Quick Disconnect
Rows
2
Inlet
Quick Disconnect
Coolant Capacity
8.36
Dual Pass
False
Overall Width
8.9″
Core Length
37.01″
Core Height
27.48″
Core Size
37.01″ x 27.48″
