Description
Mishimoto MMTC-F2D-03SL high performance transmission cooler for 2003-2007 Ford F250, F350, F450 Super Duty 6.0L Powerstroke Diesel. Also fits 2003-2005 Excursion 6.0L.
Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.
Package Includes:
Mishimoto Stacked-Plate Transmission Cooler
Mounting Hardware
Mishimoto Lifetime Warranty
Features:

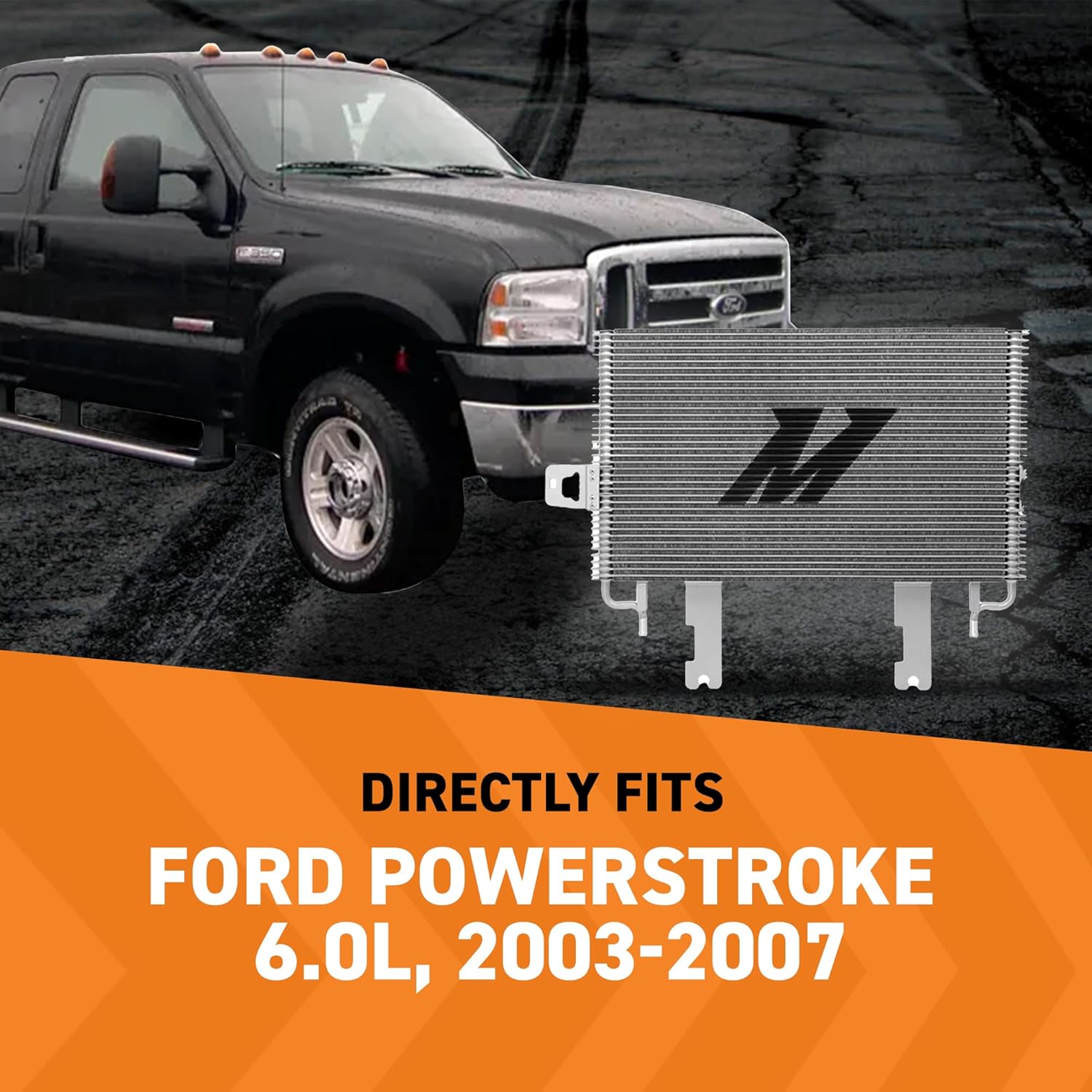

- Direct fit for the 2003-2007 Ford 6.0L Powerstroke
- Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
- No modification necessary for installation, functions with all stock equipment

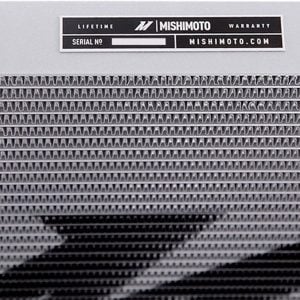

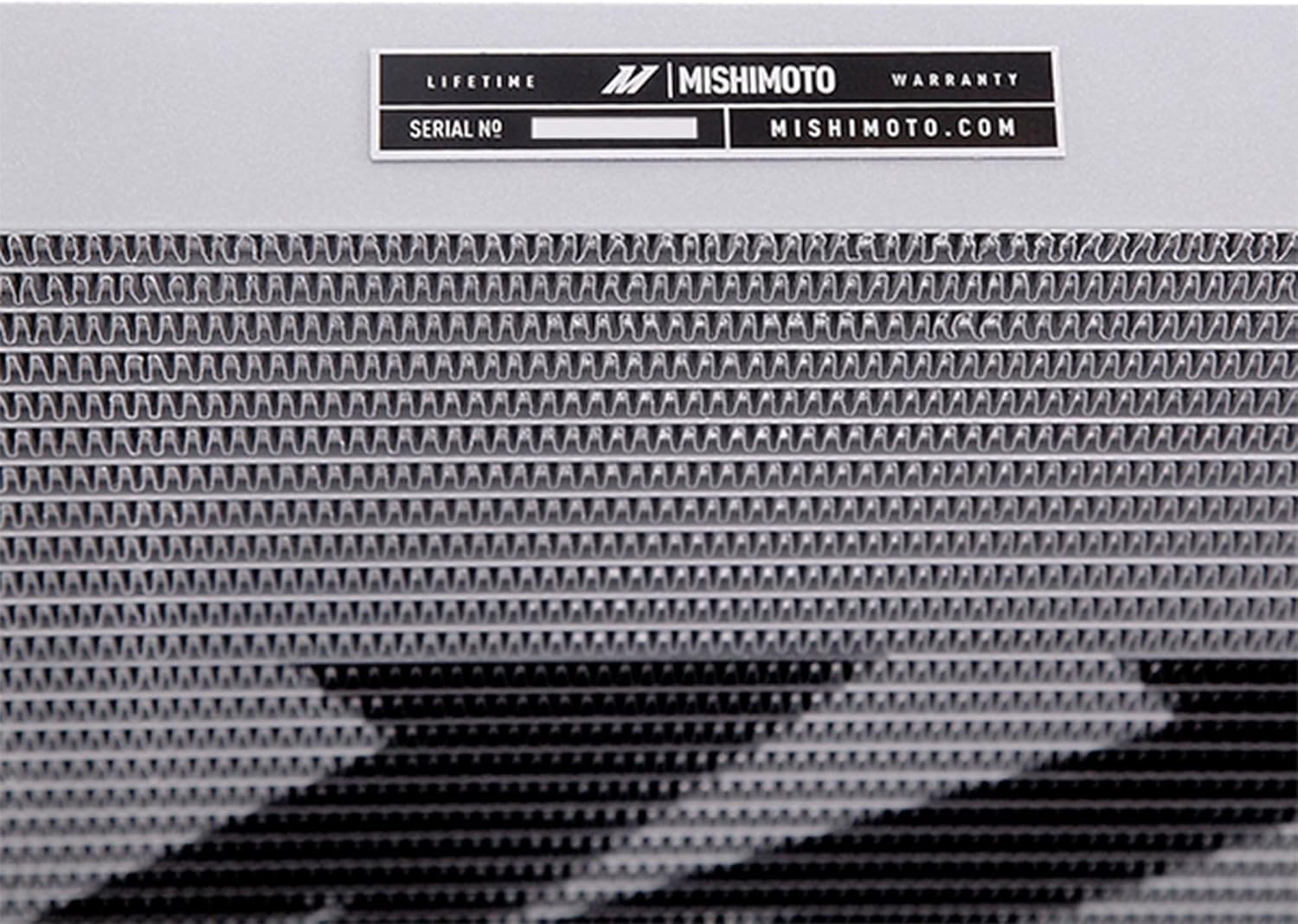

- 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
- Transmisson cooler core has a 21-percent increase in core volume compared to the factory 31-row transmission cooler
- Increases transmission fluid capacity by 1/3 qt
- Mishimoto Lifetime Warranty
Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto’s 6.0 Powerstroke performance parts, the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the loads increase, so do transmission temps. The 37-row Mishimoto’stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21-percent, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+ F drop in transmission fluid temperature! No modifications are necessary for installation, and, just like all Mishimoto 6.0 Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.
More Information
More Information
Rows 37
Core Length (in) 25.25
Core Height (in) 16.13
Core Thickness (in) 1.25
Overall Height (in) 23.5
Overall Length (in) 34
Overall Width (in) 1.34
Applications 2003-2007 Ford F-250 w/ 6.0L Powerstroke
2003-2007 Ford F-350 w/ 6.0L Powerstroke
2003-2007 Ford F-450 w/ 6.0L Powerstroke
Also fits 1999-2003 Ford Superduty trucks with the 7.3 engine, however, the transmission cooler lines must be changed to 1/2″ OD prior to installation.
Note Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.
