Description
Series X HP.85 is an ultra-bright, ultra-durable round 8.5-inch LED lighting powerhouse, producing 21,780 raw lumens (15,410 effective lumens) of 5700°K white light through an assembly of 33 individual 5-watt Osram-LED’s. One of these lights will throw light 220 feet into the distance, while a combination of 2 HP.85’s will project light an even more impressive 285 feet. The broad combo beam pattern will give you plenty of coverage, projecting light to the sides as well as far in front of your vehicle. The Series X HP.85 auxiliary light is the ultimate premium LED lighting upgrade for your truck, SUV, Can-Am, UTV, ATV, or other offroad vehicle. The included color inner trim pieces allow you to quickly and easily change the style of your lights to suit your desired color scheme. The LED reflectors are a highly polished, super-efficient aluminum metalized material, utilizing precisely scalloped parabolas for optimal control and light projection. Project X Driving Lights feature a Lifetime Warranty on construction and workmanship.
Package Includes:
1 x Series X HP.85 Combo Beam Auxiliary Light
1 x Hard Coated Polycarbonate Lens Protector

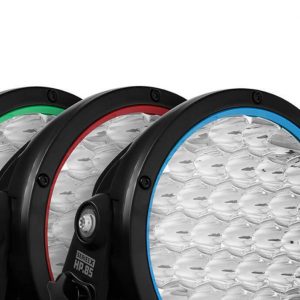

3 x Inner Trim Pieces (Blue, Red, Green)

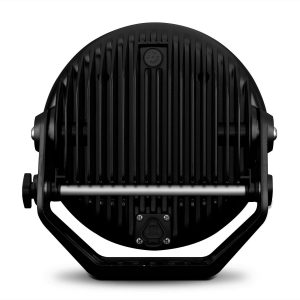

1 x Wiring pigtail with DT connector
1 x Stainless Steel Mounting Hardware Kit
POWER
Input Voltage : 9-33V
LED Power : 165W
Current Draw @ 12V : 14.4A
Operating Temp : -40°F to 149°F
Heat Management : Active Thermal Management System (ATMS)
Protection : Reverse Polarity Protection
EMC : ECE R10
LEDs
LED Type : Osram® LEDs
No. LED’s : 33
LUMENS
Color Temp : 5700°K
Color Rendering Index : 72
Raw Lumens : 21,780
Effective Lumens : 15,410
Beam Length (1 lamp) : 1 lux @ 2536 Feet
Beam Length (2 lamps) : 1 lux @ 3585 Feet
Beam Width (1 lamp) : 1 lux @ 67 Feet
Beam Width (2 lamps) : 1 lux @ 285 Feet
CONSTRUCTON
Housing : Pressure die-cast aluminum
Lens : Hard coated Polycarbonate
Hardware : Stainless Steel
IP Rating : IP66 & IP67
Weight : 7.05 lbs
