Description

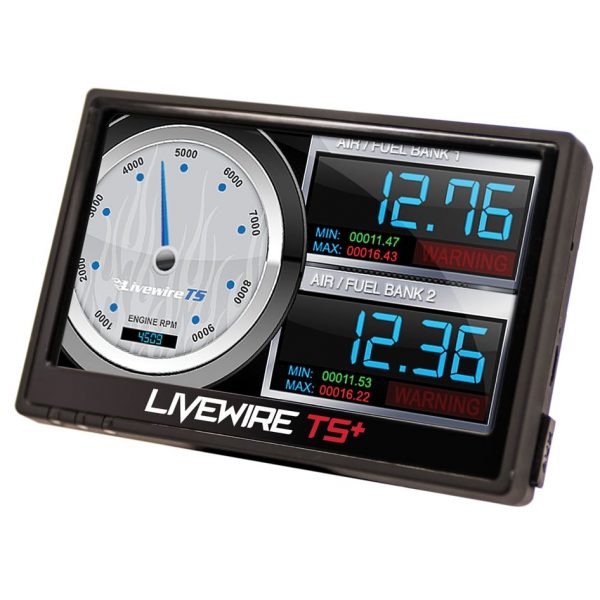

SCT Livewire TS Plus 5015P Touchscreen Performance Tuner/Monitor for 2011-2020 Ford F150 trucks with 2.7L & 3.5L EcoBoost V6. Provides significant power gains and adjustable options right out of the box for your turbocharged EcoBoost F-Series truck (see below for performance gain figures and adjustable options).
Suction Windshield Mount Included! Also includes OBD-II cable & USB cable for updates. “The Livewire TS+ unlocks your vehicle’s hidden performance by re-calibrating your vehicle’s computer for Maximum Horsepower & Torque, Increased Throttle Response, Firmer Shifts and even Increased Fuel Mileage. This product does not support any changes to your vehicle’s emission system”.
IMPORTANT: The Pre-loaded tunes WILL NOT WORK with significant engine/exhaust modifications (with the exception of air intakes/catback exhausts), or if factory engine/exhaust components have been removed. If your vehicle has check engine lights and/or removed factory components, the pre-loaded tunes may not work. The pre-loaded files on this device are calibrated specifically for stock engine/transmission/exhaust equipment (cat-back exhausts & air intakes are fine and will not cause issues, unless they have triggered a check engine light).
Disclaimer: THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. By writing an aftermarket performance tune to your vehicle’s computer, you assume full responsibility for the proper installation and application of the Product. The Buyer is responsible to obey all applicable federal, state, and local laws, statutes, and ordinances when operating his/her vehicle, and the Buyer agrees to hold Seller harmless from any violation thereof. Consult your vehicle warranty before using this Product. Under no circumstances will the Seller be liable for the voidance of the Buyer’s vehicle warranty. The Buyer assumes all risk and responsibility if an automotive manufacturer and/or dealer voids the Buyer’s vehicle warranty due to use of this Product. The Buyer assumes all risk and responsibility if the Buyer’s vehicle is damaged due to use and/or installation of this Product.
Peak Performance Gains (93 Octane Tune Mode):
2020 Ford F150 3.5L EcoBoost: +156 HP, +140 TQ
2018-2020 Ford F150 2.7L EcoBoost: +48 HP, +57 TQ
2015-2017 F150 2.7L EcoBoost: +59 HP, +73 TQ
2020 Ford F150 RAPTOR: +94 HP, +114 TQ
2019 Ford F150 RAPTOR: +52 HP, +51 TQ
2018 Ford F150 RAPTOR: +102 HP, +99 TQ
2017 Ford F150 RAPTOR: +94 HP, +152 TQ
2015-2016 F150 3.5L EcoBoost: +55 HP, +103 TQ
2017 F150 3.5L EcoBoost: +90 HP, +137 TQ
2018-2019 F150 3.5L EcoBoost: +149 HP, +139 TQ
User Adjustable Options (these vary significantly depending on year/model/engine):
2018-2019 3.5L EcoBoost:Speed Limiter, Rev Limiter, Idle Adjust, Intake Airbox, Global Spark, Auto Start/Stop
2017 3.5L EcoBoost:Speed Limiter, Rev Limiter, Idle Adjust, Intake Airbox, Global Spark, TPMS, Auto Start/Stop
2016 3.5L EcoBoost: Speed Limiter, Rev Limiter, Idle Adjust
2015-2016 2.7L & 3.5L EcoBoost: Idle adjust, rev limiter, speed limiter
2011-2014 3.5L EcoBoost: Axle Ratio, Global Spark, Idle Adjust, Intake Airbox, Rev Limiter, Speed Limiter, Tire Size (correct speedometer), Transmission Shift Points
CANNOT BE SHIPPED TO CALIFORNIA DUE TO CARB REGULATION
Features
-Color 4″ Touch Screen Display
Livewire TS+ features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
-Switch On-The-Fly*
Change power levels on the fly while driving. *Switch On-The-Fly available for select vehicles only.
-Holds up to 10 Custom Tunes
The Livewire TS+ arrives Pre-Loaded with Dyno Proven performance tune files & holds up to 10 custom tuning files for Maximum tune flexibility.
-Automatic On / Off / Sleep Mode
Tired of devices that stay on after the ignition is turned off? Livewire TS features both a Sleep & Auto Off mode. 2 minutes after the ignition is turned off, Livewire TS goes into sleep mode, drawing very little power. After 2 days of inactivity, it aut…
-Available for both Gas & Diesel Vehicles
Works with most 1996+ Gas & Diesel vehicles
-Built-In Performance Calculator
Built-In Horsepower, Torque, 1/4 Mile & 0-60MPH ET’s
-Color 4″ Touch Screen Display
Livewire TS features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
-High Speed Data Logging & Monitoring
Need to monitor your vehicle’s engine parameters? No need for a separate monitoring device. View & record your vehicle’s PCM data on the Livewire TS.
-Holds up to 10 custom tuning files for Maximum tune flexibility.
-Reads & Clears DTC Codes
Reads & Clears PCM Diagnostic Trouble Codes.
-Rear View Camera Input
The Rear View Camera Input Connector is built-in to the Livewire TS OBD-II Cable for easy connection of most aftermarket Rear View Cameras!
-User Adjustable Tune Options
Adjust for common performance bolt-ons such as Cold Air Kits, Exhaust Systems & Gears.
-User Adjustable Warning / Alerts
Easy to configure gauge warning & alerts for critical engine parameters.
-User Selectable Graphics & Gauge Layouts
Customize the look of your Livewire TS with user selectable themes, colors and gauge layouts.

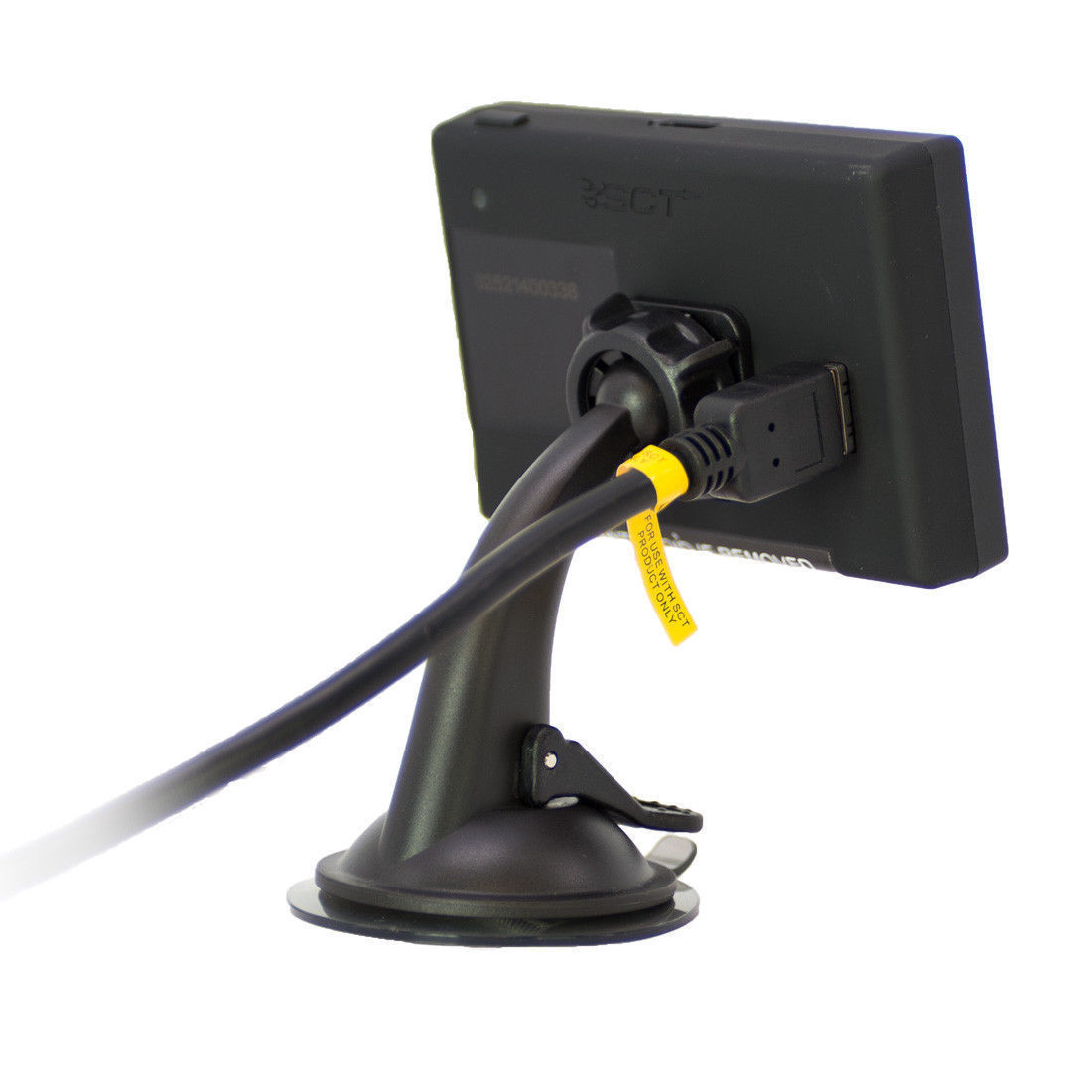

-Windshield Mount Included
No mounting solution required. Livewire TS includes a suction cup style mount for easy mounting on your vehicle’s windshield.
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
F-150, F-250, F-350, F-450, F-550 Super Duty
F250, F350, F450, F550 Turbocharged Turbo Diesel Powerstroke
