SCT Livewire TS Plus 5015P 4-inch Touchscreen Tuner & Monitor for 1999-2019 F250/F350 Ford Super Duty Trucks with 6.0L, 6.4L, 6.7L, and 7.3L Turbo Diesel Powerstroke engines. Also compatible with 2011-2016 6.2L V8 Gas, 1999-2010 5.4L V8 Gas, and 1999-2010 6.8L V10 Gas. Unlock power gains with one of multiple pre-loaded tune modes. For diesel engines, choose between 3 tunes: Street, Tow, and Performance. For gas engines, choose between 3 octane based performance tunes: 87 octane, 91 octane, and 93 octane.
The stock program on every Super Duty’s onboard computer puts limitations on horsepower, torque, top speed limit, rev limit, throttle response, and other parameters. SCT’s touchscreen Livewire TS Plus flash programmer will allow you to unlock extra performance by writing an enhanced program to your vehicle’s computer. Each pre-loaded tune level is engineered for maximum power and efficiency, giving you more opportunity to utilize the maximum capabilities of your F-250 or F-350’s engine and drivetrain.

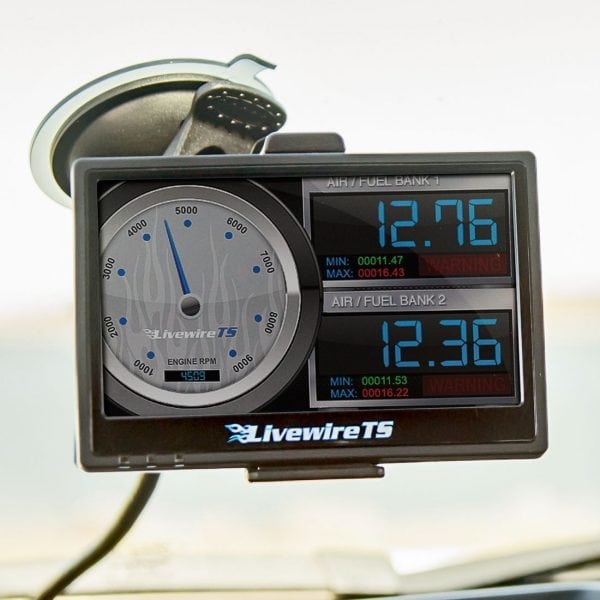

Mount the Livewire TS+ to your windshield with the included suction mount to monitor real-time engine temps, RPM, 0-60 times, intake air temp, battery voltage and more. The 4-inch color display features a built-in ambient light sensor, which can automatically optimize the screen brightness for both day and night. It also has an automatic on/off/sleep mode feature, which powers the device off after you turn off the ignition.
Authorized Bully Dog/SCT Dealer.
1999-2003 Ford F250/F350/F450/F550 7.3 Powerstroke
2004-2007 Ford F250/F350/F450/F550 6.0 Powerstroke
2004-2007 Ford F250/F350 6.4 Powerstroke
2008-2019 Ford F250/F350 6.7 Powerstroke
Peak Performance Gains:
2017-2019 Ford Super Duty 6.7L: +131 HP, +210 TQ
2016 Ford Super Duty 6.7L: +103 HP, +221 TQ
**CANNOT BE SHIPPED TO CALIFORNIA DUE TO CARB REGULATION**
IMPORTANT: The Pre-loaded tunes WILL NOT WORK with significant engine/exhaust modifications (with the exception of air intakes/catback exhausts), or if factory engine/exhaust components have been removed. If your vehicle has engine warning lights and/or removed factory components, the pre-loaded tunes may not work. The pre-loaded files on this device are calibrated specifically for stock engine/transmission/exhaust equipment (cat-back/filter-back exhausts & air intakes are fine and will not cause issues, unless they have set off an engine warning light).
Disclaimer: THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. By writing an aftermarket performance tune to your vehicle’s computer, you assume full responsibility for the proper installation and application of the Product. The Buyer is responsible to obey all applicable federal, state, and local laws, statutes, and ordinances when operating his/her vehicle, and the Buyer agrees to hold Seller harmless from any violation thereof. Consult your vehicle warranty before using this Product. Under no circumstances will the Seller be liable for the voidance of the Buyer’s vehicle warranty. The Buyer assumes all risk and responsibility if an automotive manufacturer and/or dealer voids the Buyer’s vehicle warranty due to use of this Product. The Buyer assumes all risk and responsibility if the Buyer’s vehicle is damaged due to use and/or installation of this Product.
Color 4″ Touch Screen Display
Livewire TS+ features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
The Livewire TS+ arrives Pre-Loaded with Dyno Proven performance tune files
Automatic On / Off / Sleep Mode
Tired of devices that stay on after the ignition is turned off? Livewire TS features both a Sleep & Auto Off mode. 2 minutes after the ignition is turned off, Livewire TS goes into sleep mode, drawing very little power. After 2 days of inactivity, it aut…
Available for both Gas & Diesel Vehicles
Works with most 1996+ Gas & Diesel vehicles
Built-In Performance Calculator
Built-In Horsepower, Torque, 1/4 Mile & 0-60MPH ET’s
Color 4″ Touch Screen Display
Livewire TS features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
High Speed Data Logging & Monitoring
Need to monitor your vehicle’s engine parameters? No need for a separate monitoring device. View & record your vehicle’s PCM data on the Livewire TS.
Rear View Camera Input
The Rear View Camera Input Connector is built-in to the Livewire TS OBD-II Cable for easy connection of most aftermarket Rear View Cameras!
User Adjustable Tune Options
Adjust for common performance bolt-ons such as Cold Air Kits & Gears.
User Adjustable Warning / Alerts
Easy to configure gauge warning & alerts for critical engine parameters.
User Selectable Graphics & Gauge Layouts
Customize the look of your Livewire TS with user selectable themes, colors and gauge layouts.

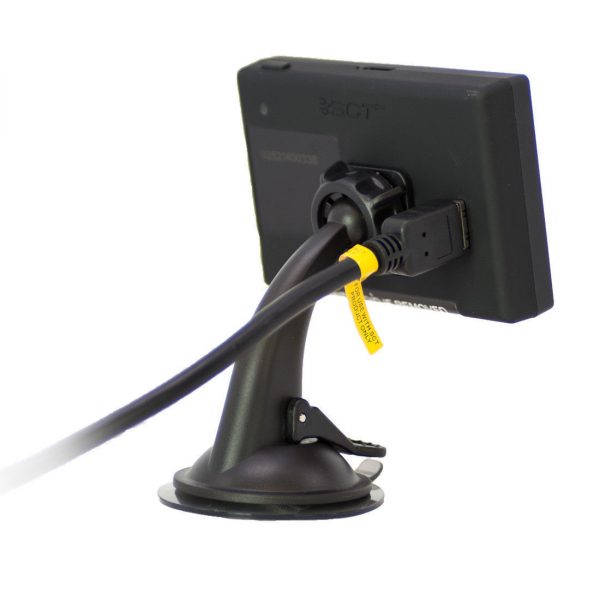

Windshield Mount Included
No mounting solution required. Livewire TS includes a suction cup style mount for easy mounting on your vehicle’s windshield.
WHAT YOU CAN ADJUST
*Adjustable Options vary significantly for each vehicle and are not available on all vehicles (please message us to confirm which options are available on your vehicle).
Correct the vehicle speedometer (and fuel efficiency calculations) if you have changed the gear ratio on your vehicle. If no gear ration modifications have been made to the vehicle, then choose the stock setting when the tuner prompts you to choose a gear ratio. This will ensure that no modifications are made to the stock program.
Lowers the Temperature at which the Fan turns on.
Front Mounted Intercooler
Adjusts for the usage of a front mounted intercooler
Allows you to adjust for different sized fuel injectors.
Allows addition or removal of timing across all RPM ranges
Adjusts calibration to compensate for removal of Grill Shutter
Enable and select a value for Engine Idle position. This is a great feature for keeping voltage in the vehicle up while running auxiliary electronics off of the vehicle’s power system.
For Intake Kits that require tuning, this will provide a selection of available intake kits.
Used as an exhaust brake to increase engine braking while coasting towing heavier loads. Helps lower brake temperatures.
Lock in 1-2-3
Locks the converter in 1st, 2nd and 3rd. Aids in engine braking, increases fuel economy, and can be used for drag racing as well.
Locked At CT
Keeps the torque converter locked during deceleration to aid in engine braking. This is less aggressive than the Jake Brake file so it may be ideal for smaller loads. It can be used in conjunction with the Jake Brake as well.
Mass Air Meter (MAF)
Allows you to select from different aftermarket MAF (Mass Air Meters).
Regulate the highest RPM that an engine can reach before the engine is electronically limited. Increasing the RPM limit is recommended only for racing purposes. One of the most important ways to protect your engine from damage is to keep the RPMs from going too high.
RPM Based Spark
Allows you to Add or Remove Timing by RPM Range. (0-2000)(2000-4000)(4000-8000)
Enable and Disable The Sound Symposer
Change the top speed that the vehicle will reach before the engine automatically limits the power needed to go faster.
Super Charger Pulley
Supports aftermarket super charger pulley sizes.
Take Off Assist
Compensates for aftermarket Throttle Bodies (BBK 65/85/90 MM)
Correct the speedometer if you have changed your tire size from stock.
Reduce torque durning shifting (makes shift more firm)
Allows you to disable the vehicles Traction Control without using the button in the vehicle.
Transmission Shift Firmness
Change the shift firmness of an automatic transmission.
Transmission Shift Points
Change the RPMs at which an automatic transmission will change gears
SCT Livewire TS Plus 5015P Tuner
Ford F250 F350 5.4 6.0 6.2 6.4 6.7 7.3
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Lariat, King Ranch, Limited, XLT, Platinum, XL, FX4, Harley-Davidson,
Crew Cab, Regular Cab, Extended Cab, Cab & Chassis, Pickup, 2-Door, 4-Door
