Description

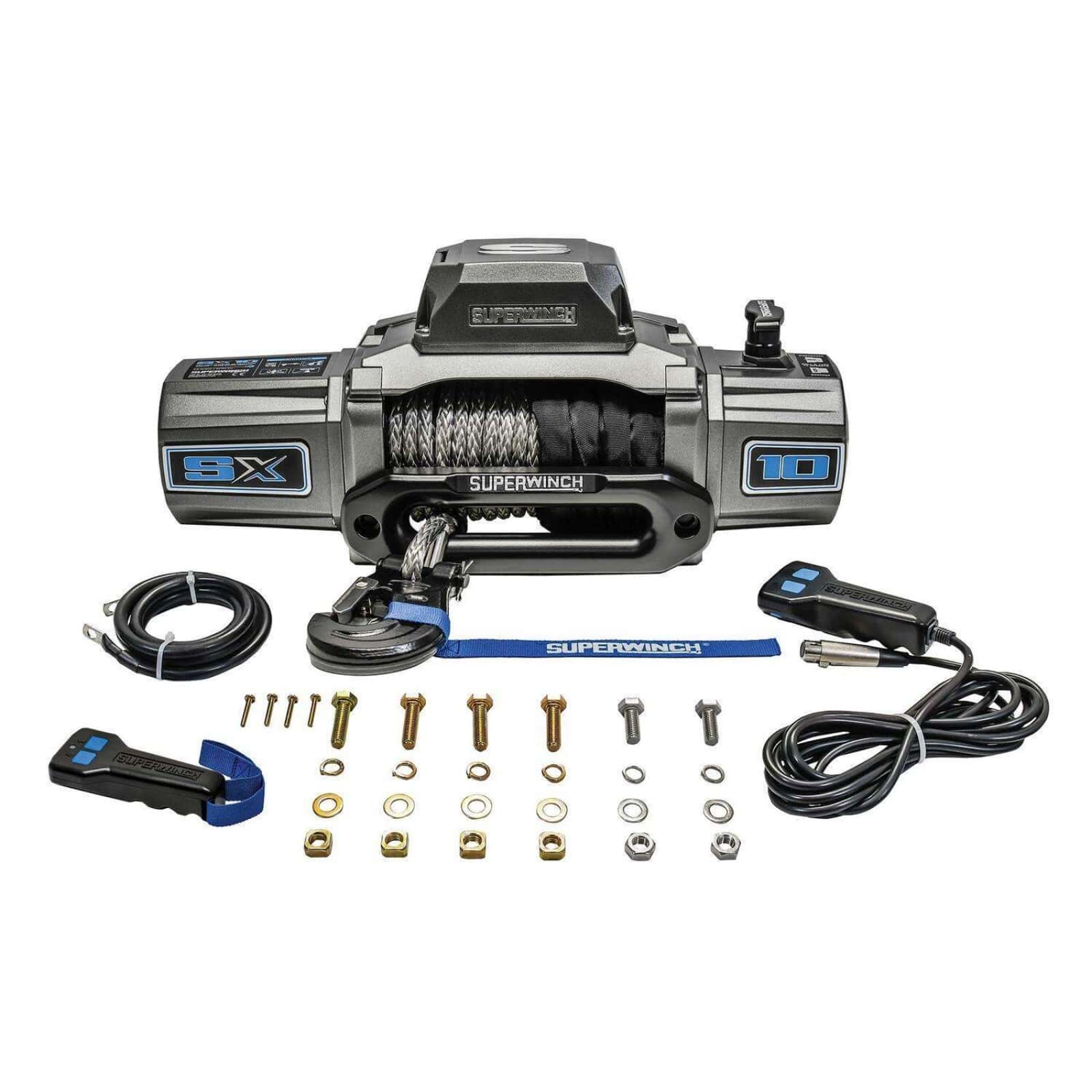

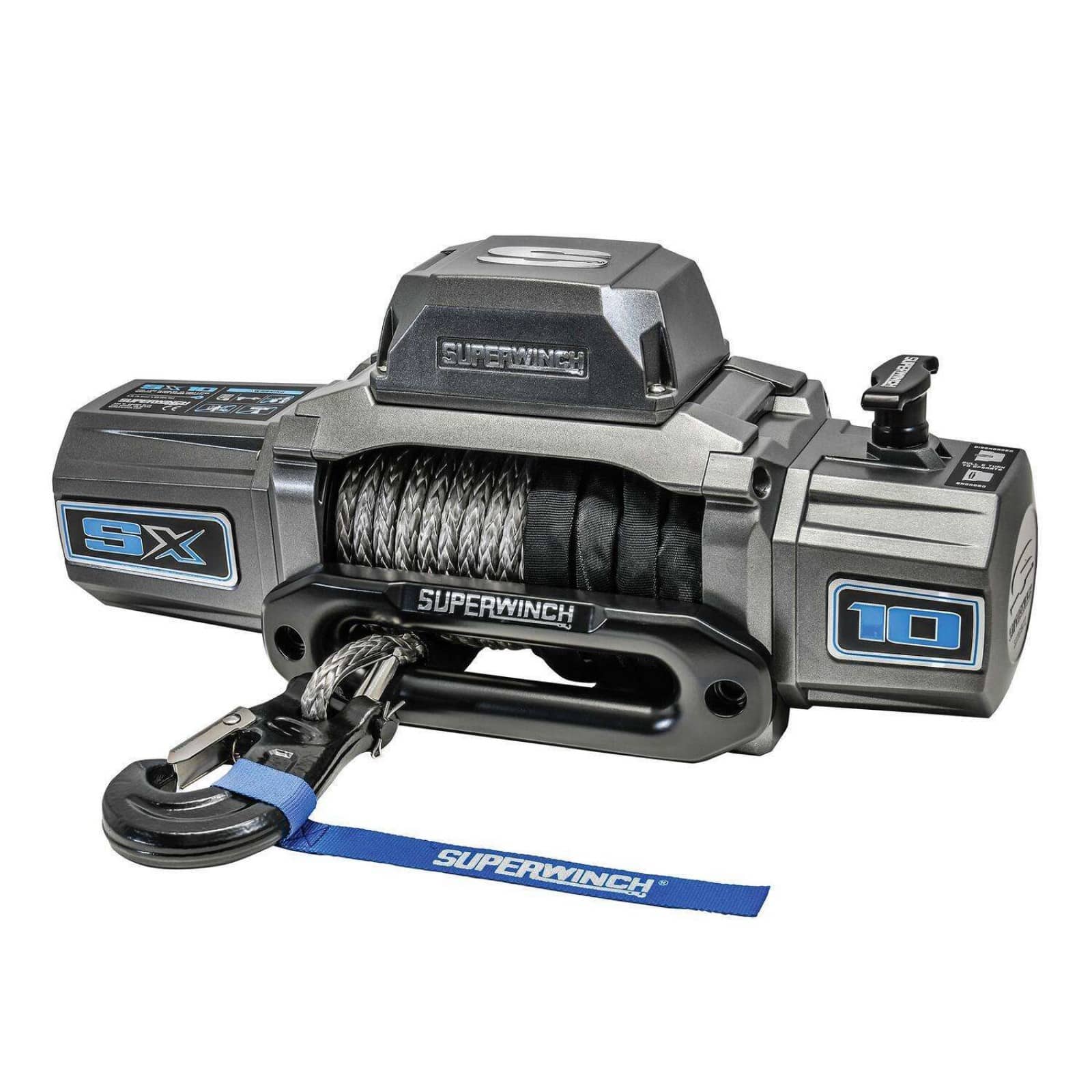

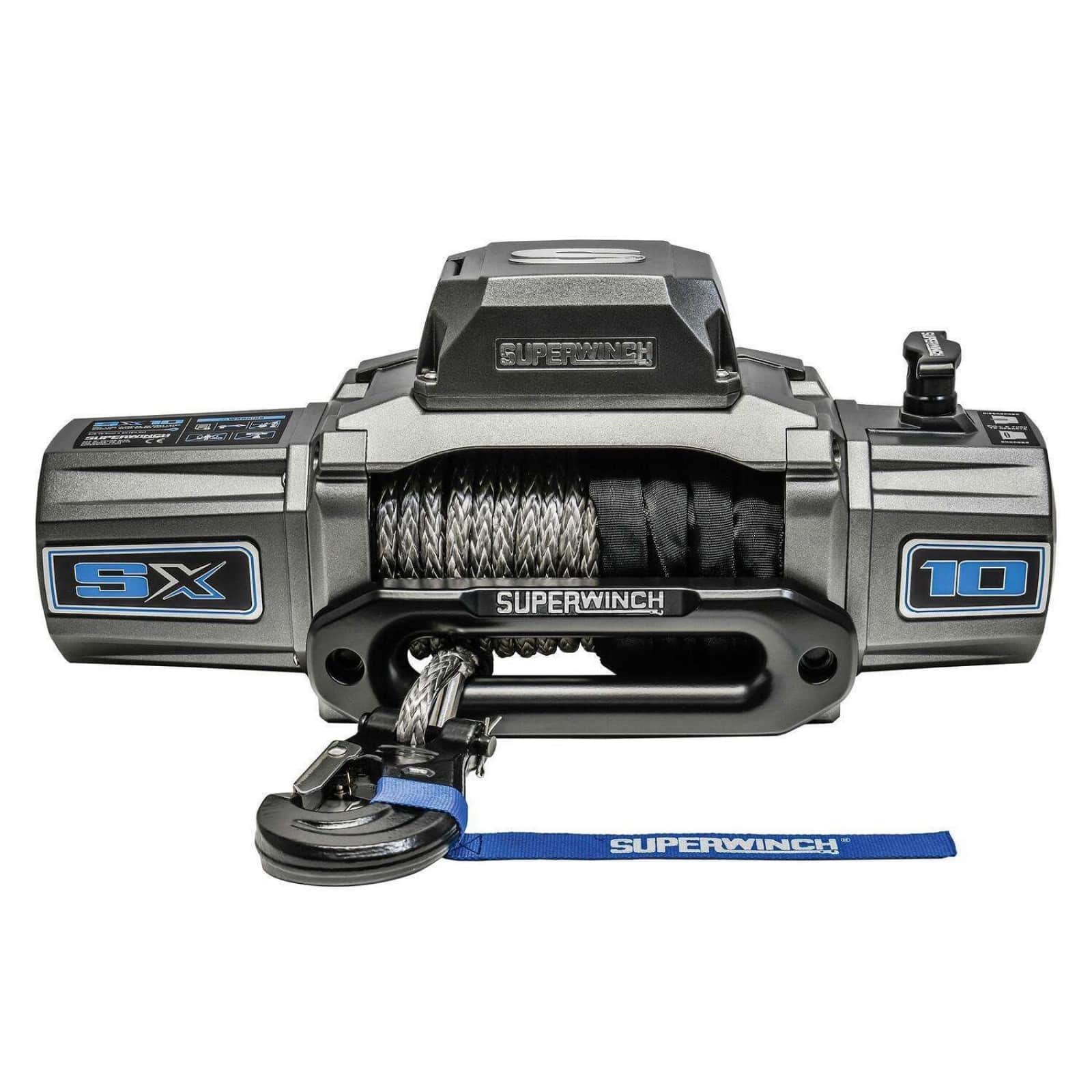

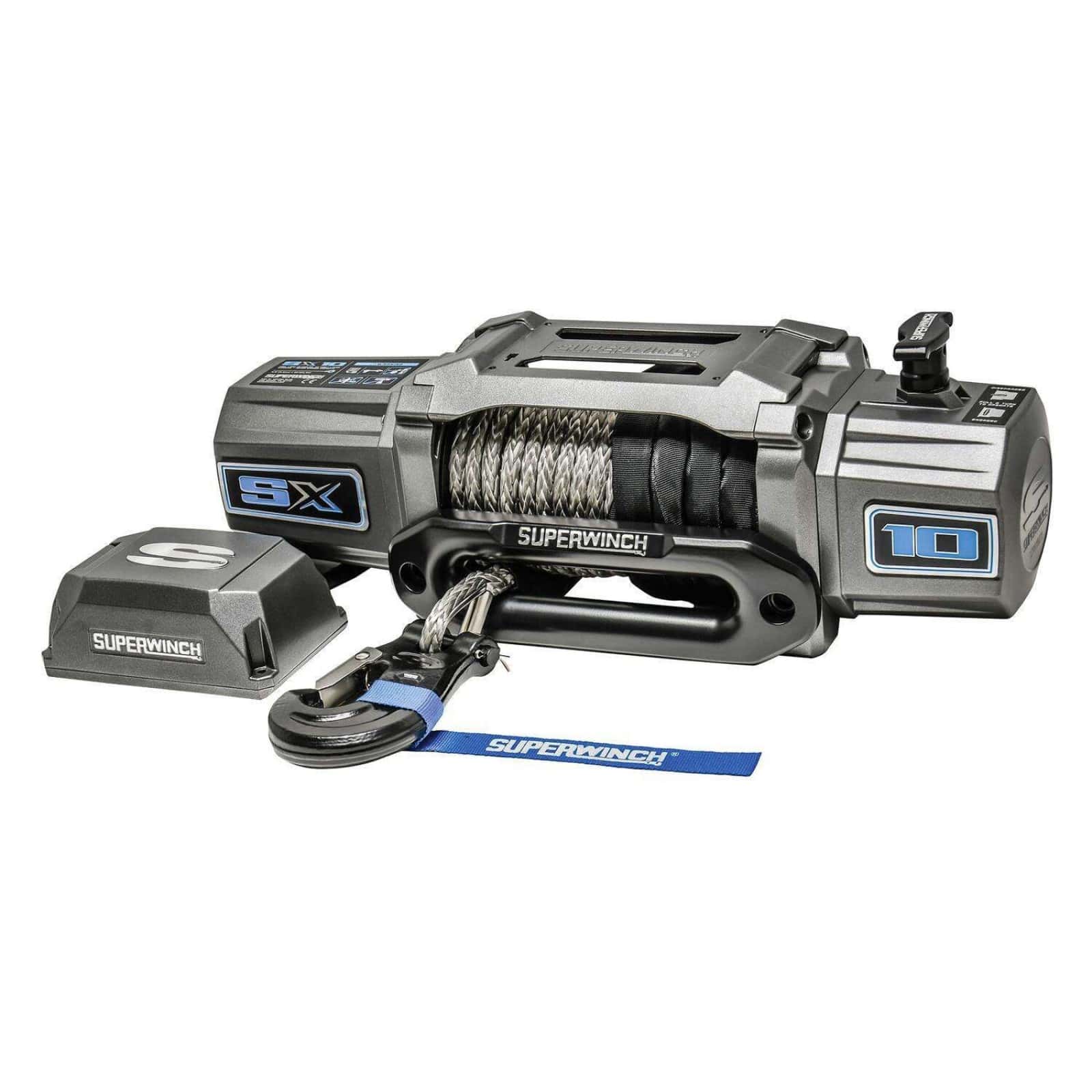

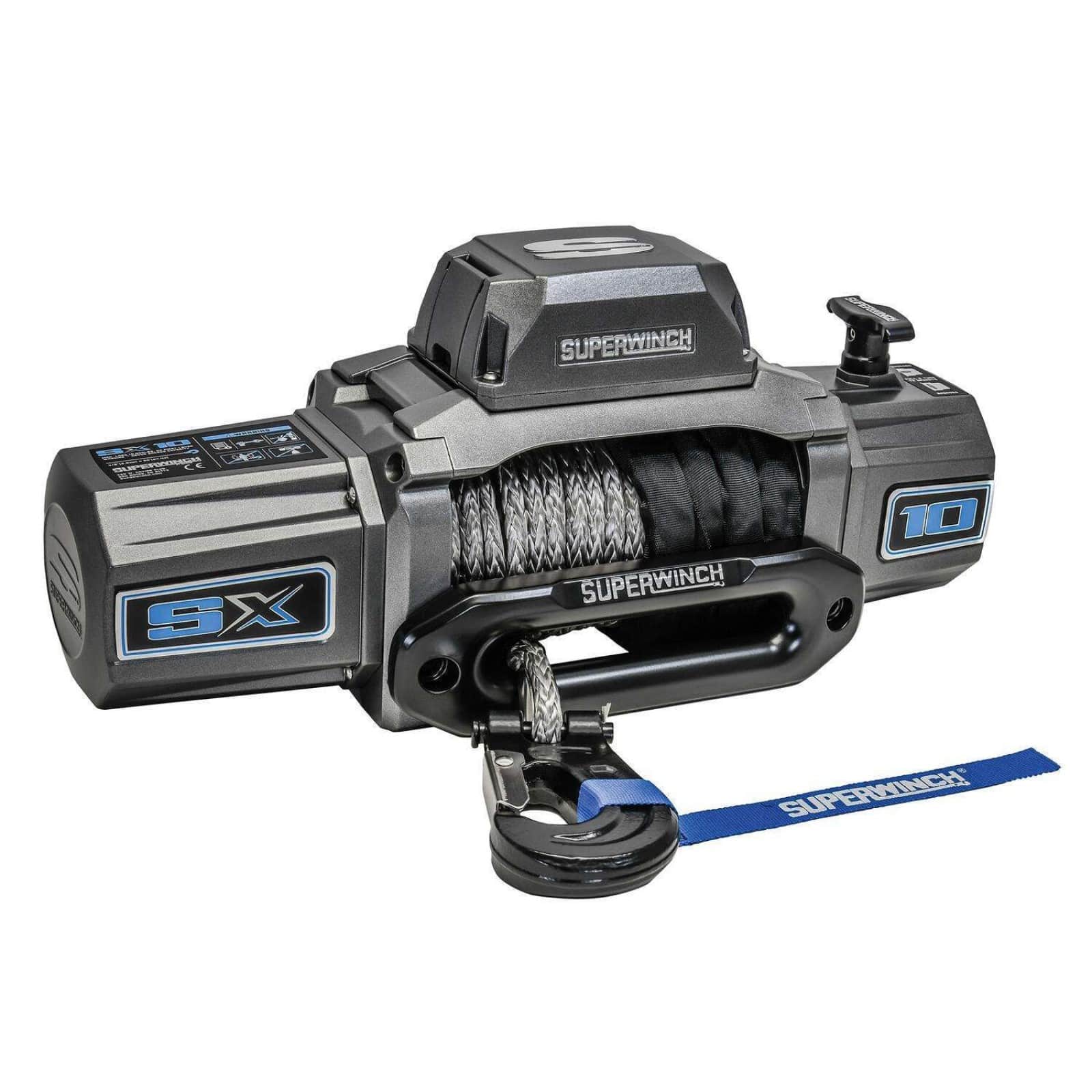

Superwinch SX10ST 12-volt 10,000 lbs capacity with 80 ft. Synthetic Rope. Includes wireless hand-held remote and a 12 foot handheld wired remote (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Available in 10,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with Innovative features such as a patented drum light, relocatable control box and a lighted remote, and your choice of wire or synthetic rope this winch has it all.
- 10,000 lbs. capacity
- 5.5 HP sealed motor

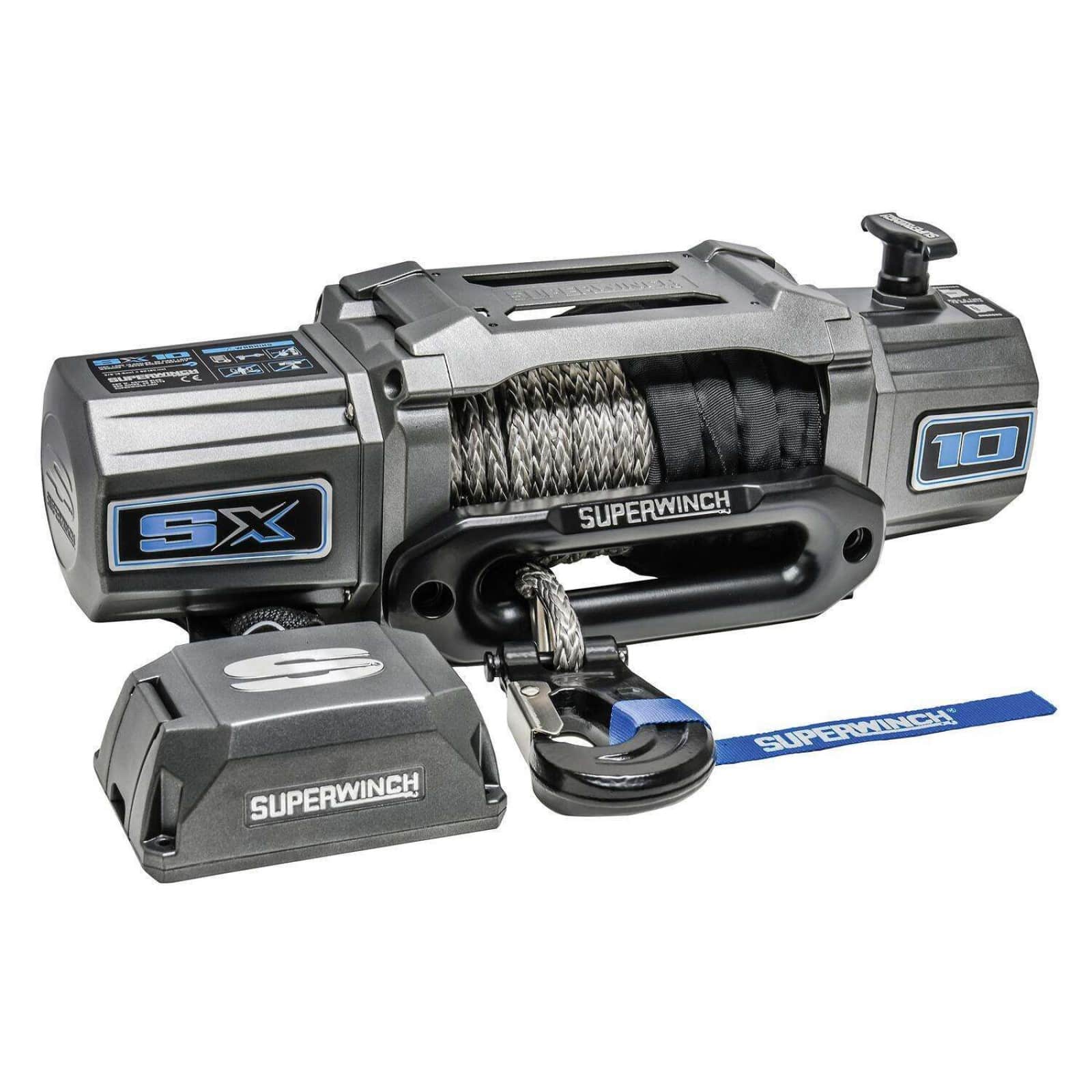

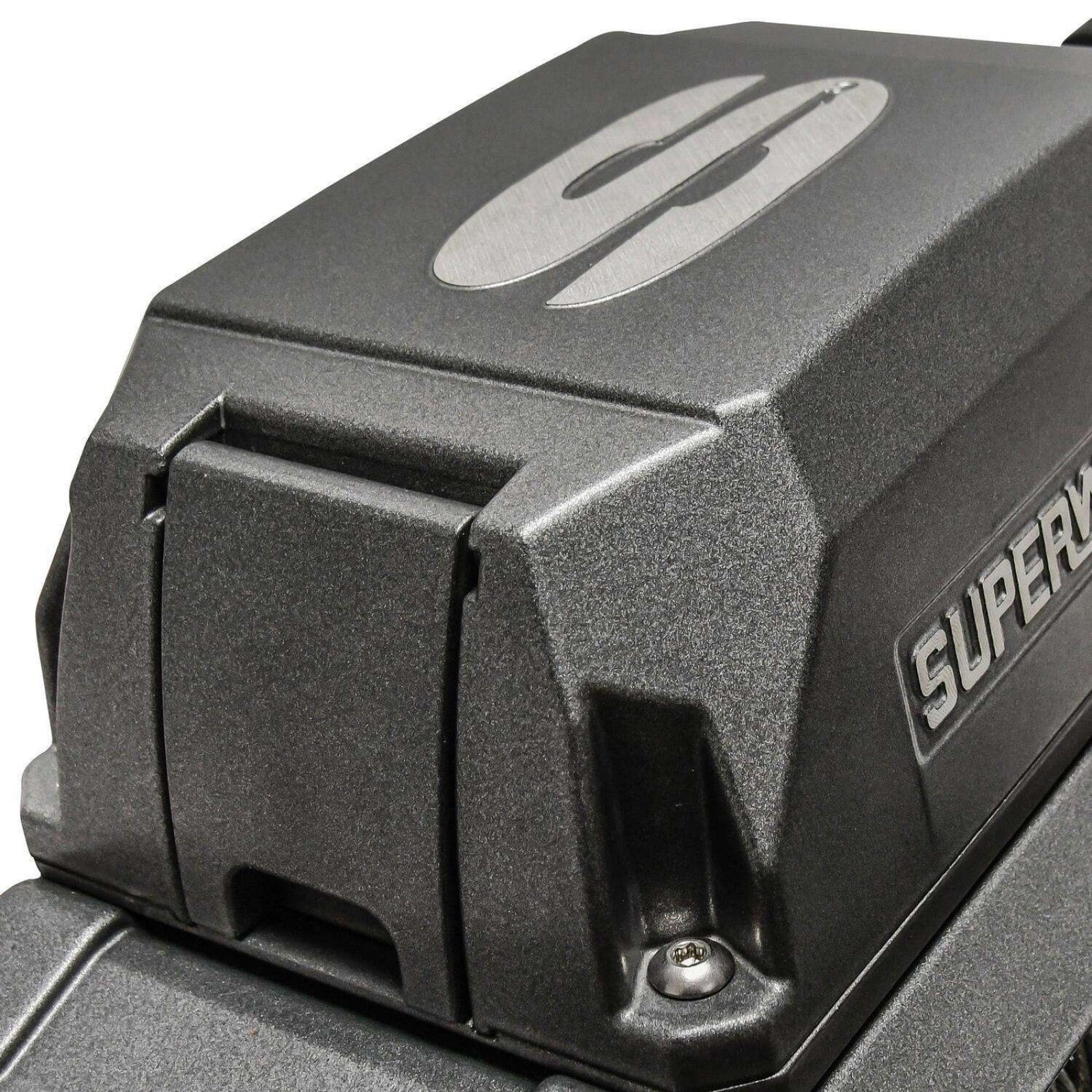

- Relocatable die-cast aluminum control box

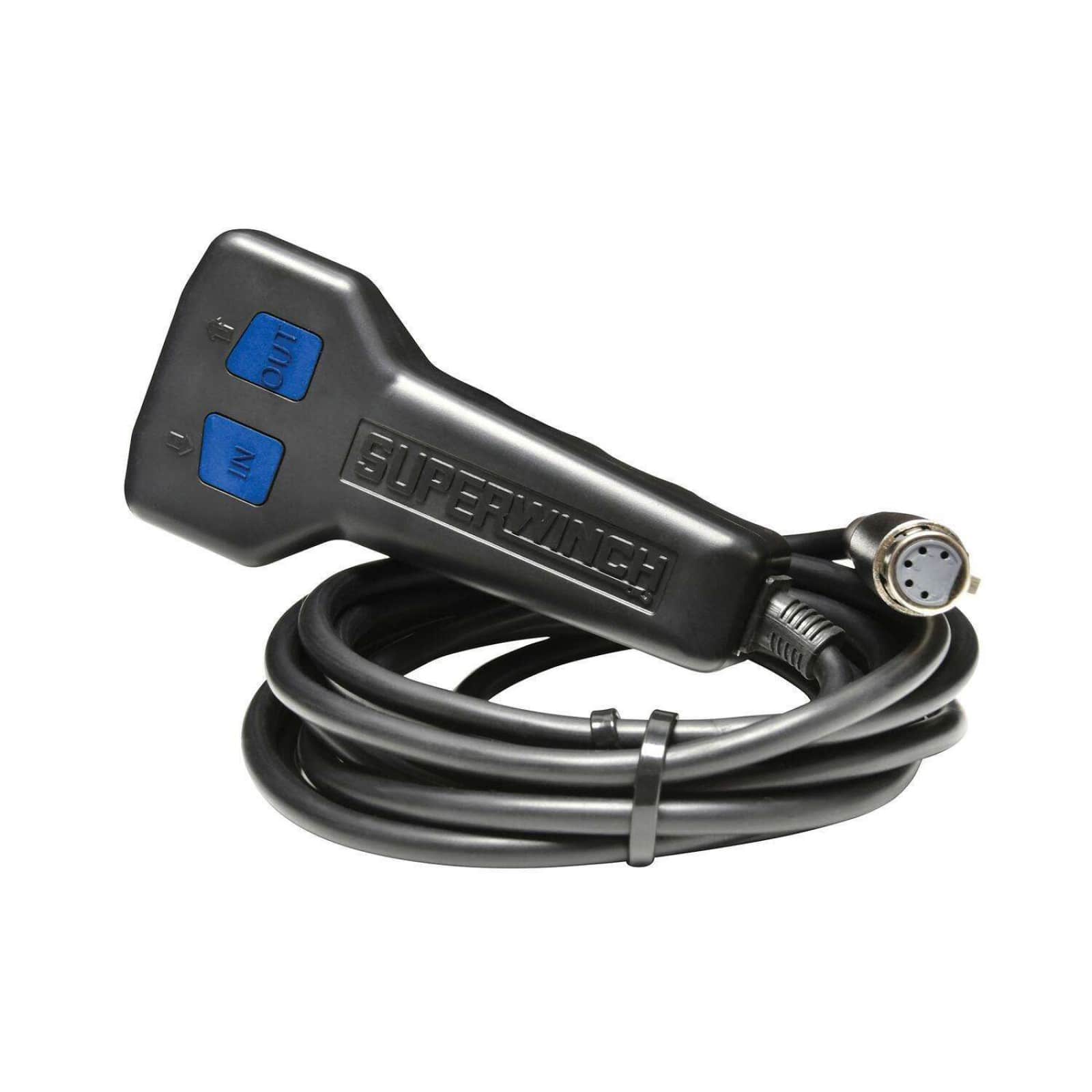

- 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight/ wireless remote on synthetic

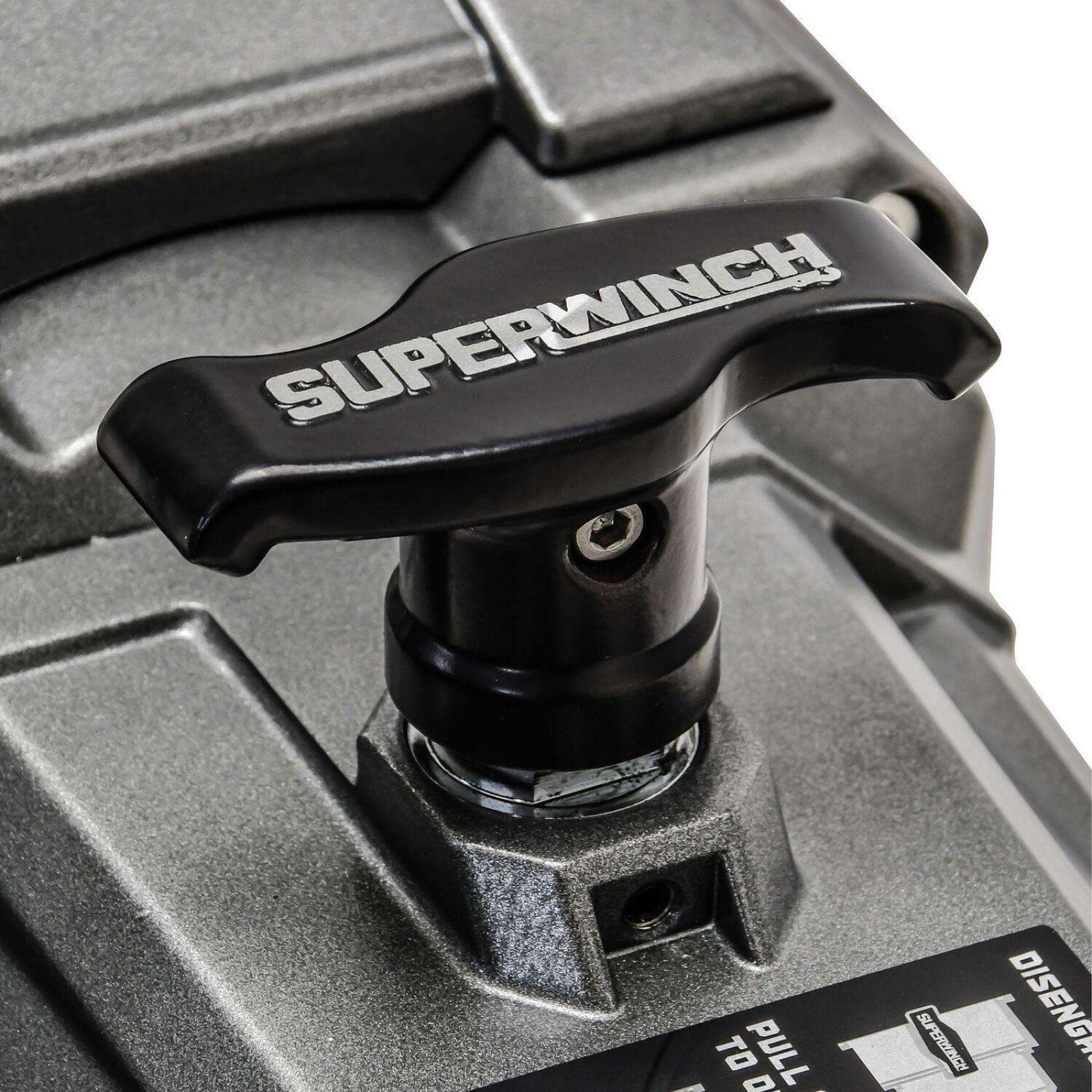

- Ergonomic pull-and turn clutch handle
- 3-stage planetary gearing with 218:1 ratio

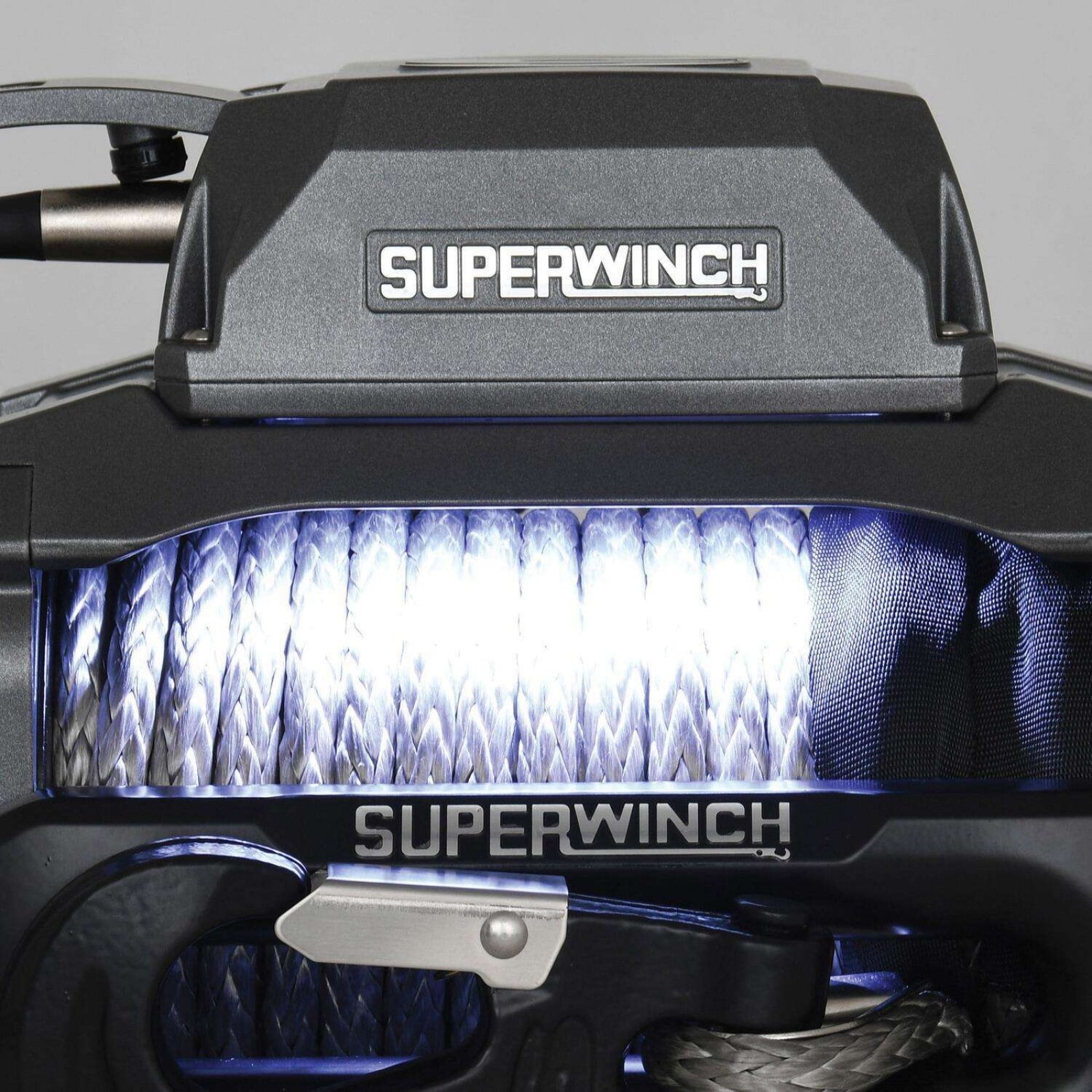

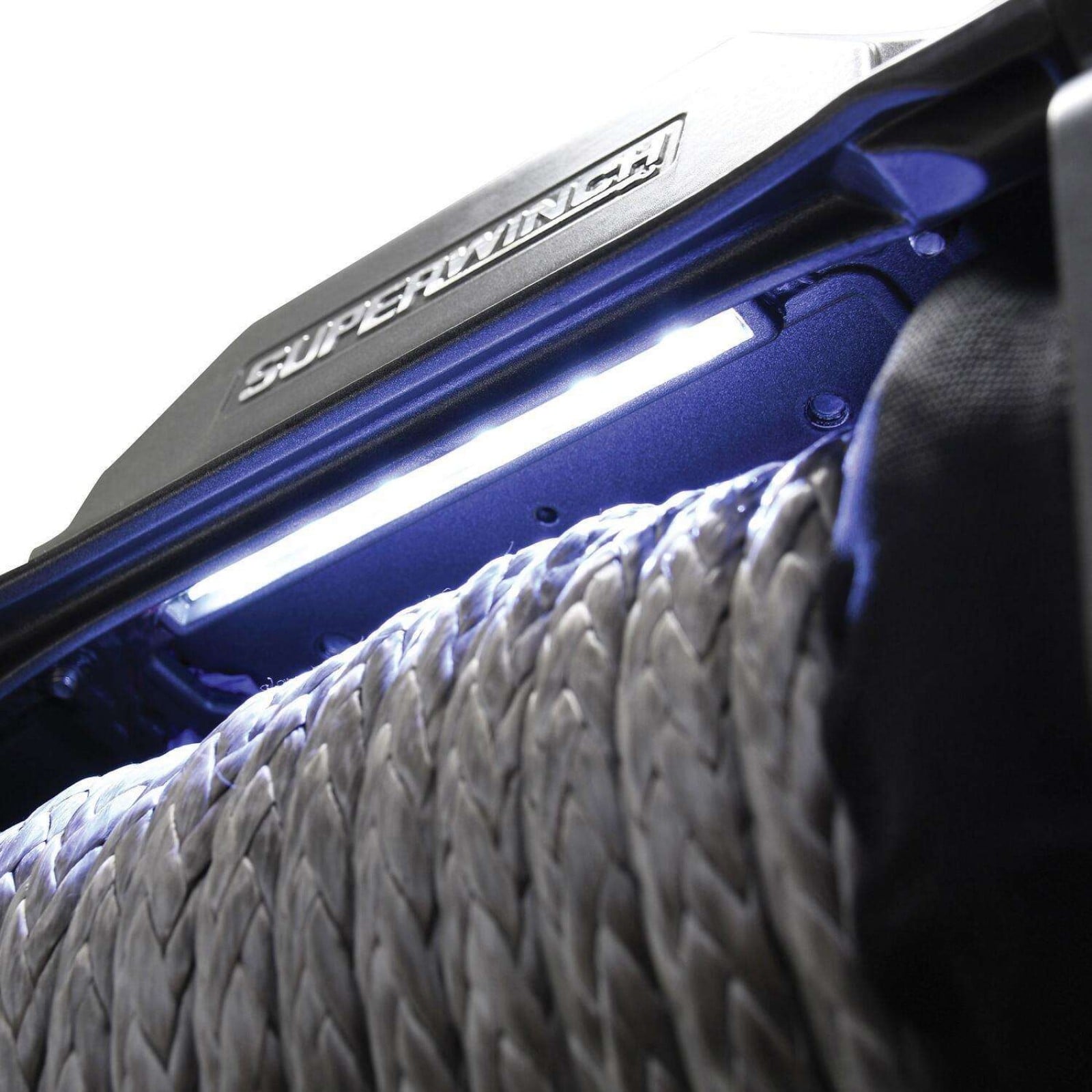

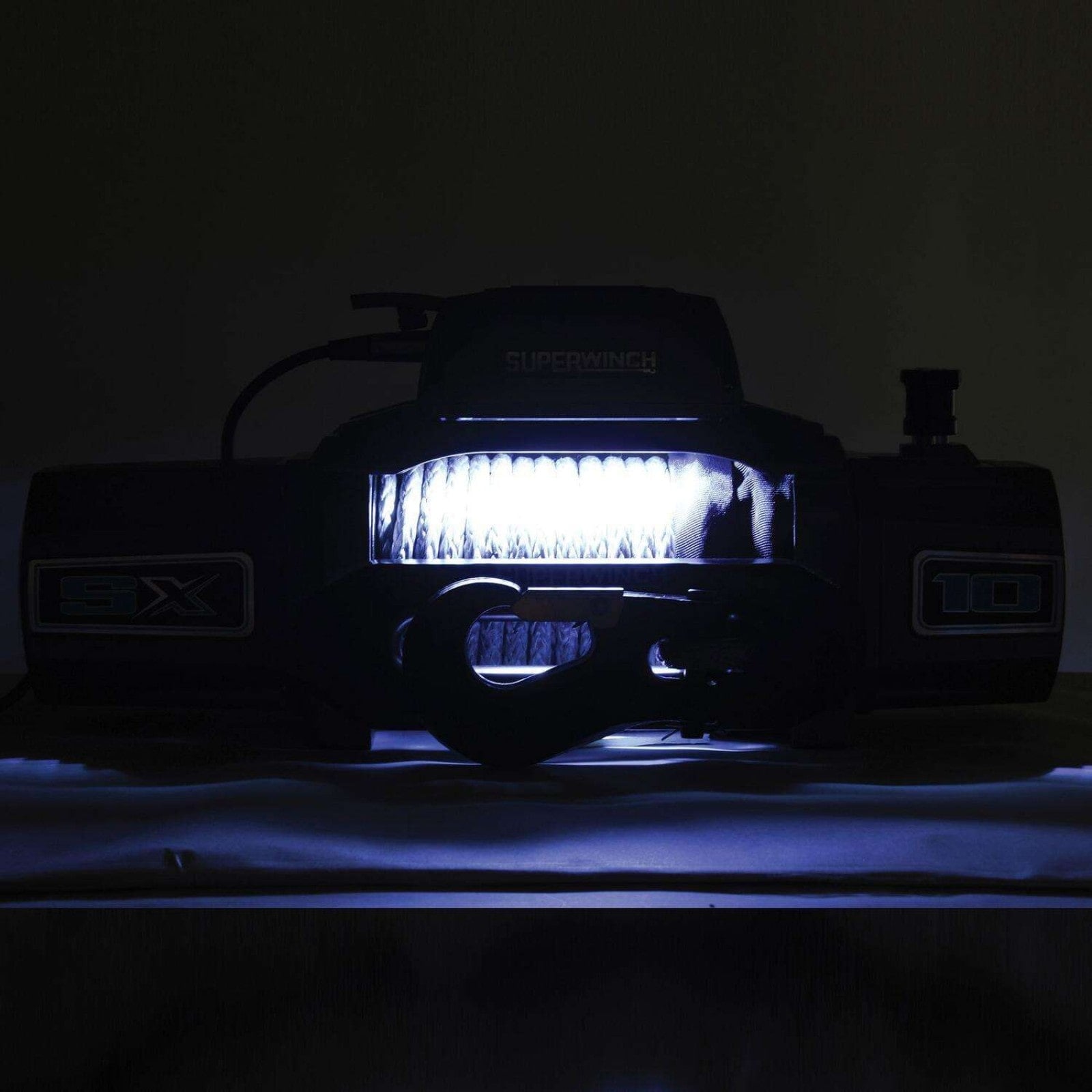

- Patented drum light
- Drum diameter measures 2.5 in.
- Heavy duty clevis winch hook
- Stainless steel roller fairlead (wire)
- Aluminum hawse fairlead (synthetic rope)
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof
- Durable metallic graphite powder coat finish
- Clockable gearbox
Specifications
Brake System: 100% Full-load holding automatic mechanical brake
Clutch: Pull and turn clutch handle
Color: Graphite
Control Box: Relocatable Die-Cast Aluminum

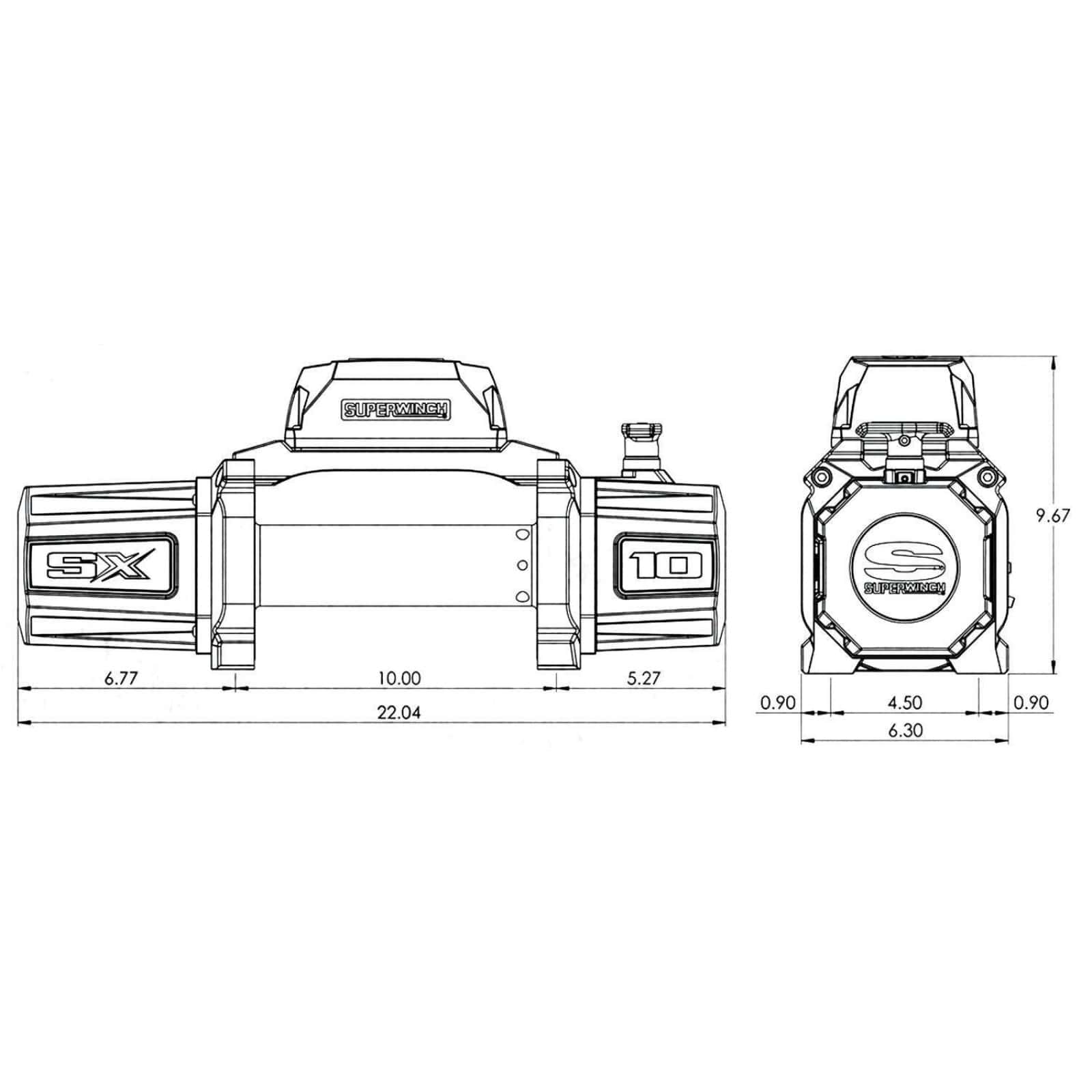

Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Drum: Durable fully welded steel drum
EN Compliant: No
Fairlead: Aluminum hawse
Finish: Powder Coated
Gear Ratio: 218:1
Gear System: 3-stage planetary
IP Rating: IP68 Waterproof and Dustproof
Material: Steel

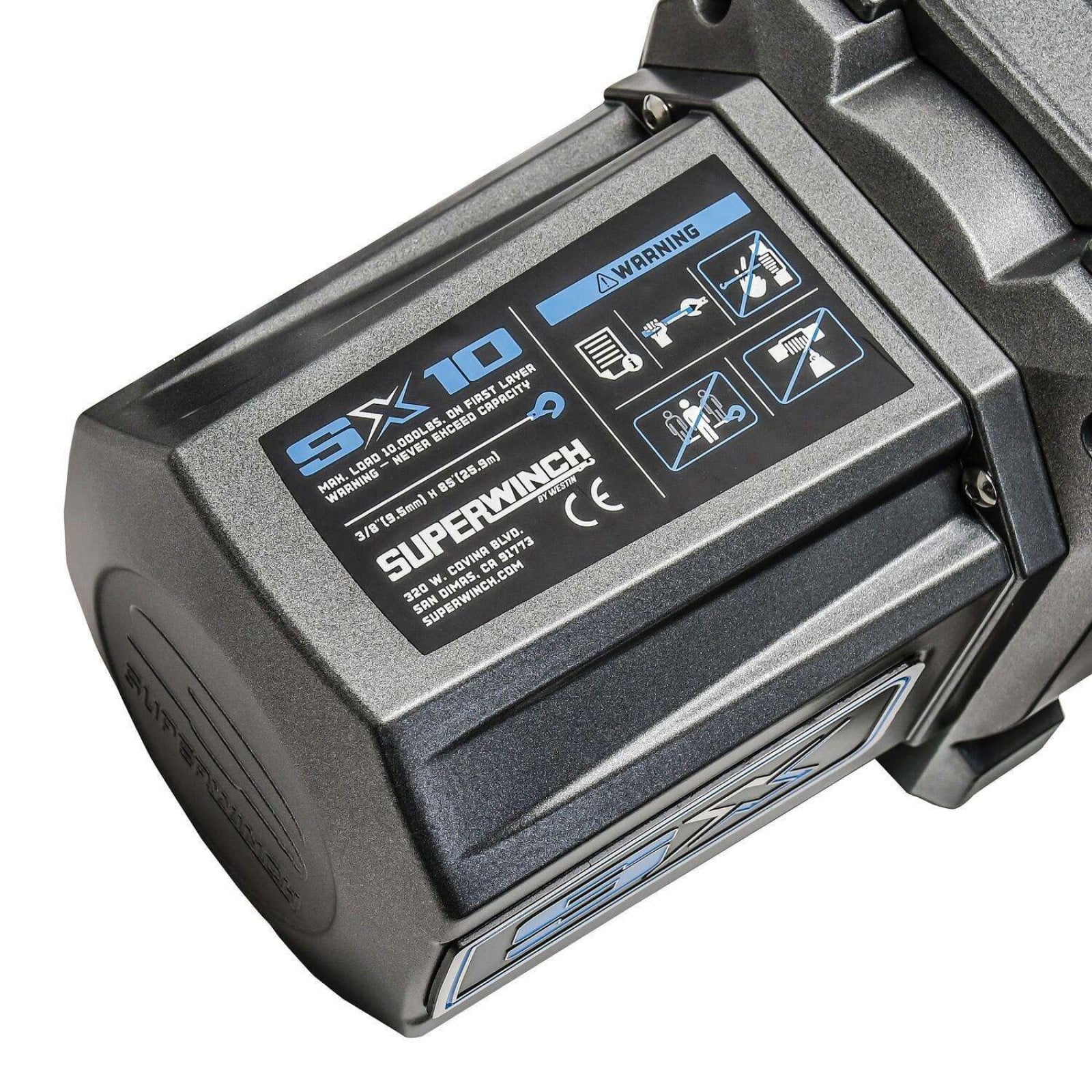

Motor: 5.5 HP, 12V DC
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Rated Single Line Pull (Lbs): 10000

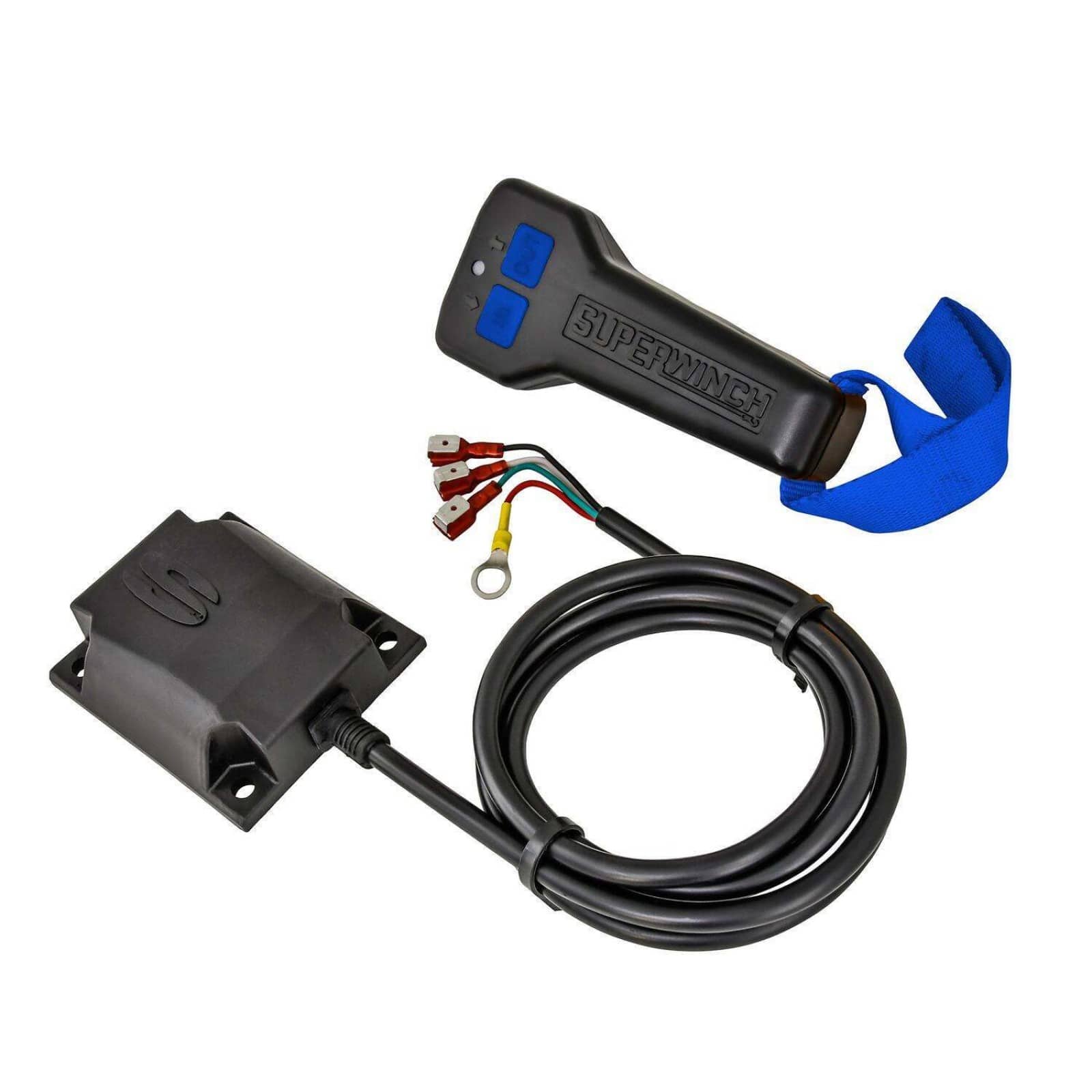

Remote Control: Wireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Remote Type: Wire and Wireless
Rope Length: 3/8 in x 80 ft (9.5mm x 24.3m)
Rope Material: Synthetic
Task Lighting: Patented drum light
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Package Weight: 61 lbs.
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Winch Model: SX Series
