Description
Fits 2007-2018 Jeep Wrangler JKU Unlimited 4-door models. 5-6 inch Lift Range. Compared to standard off-road shocks, Falcon Series 3.1 Piggyback Shocks deliver increased stability and a more comfortable ride. The increased compression damping of the Piggyback Series shocks allows for more aggressive off-road handling. Falcon 3.1 series shocks are optimized for both on and off-road driving.
FEATURES/BENEFITS
“High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps trucks and SUVs. These Jeep-specific shock absorbers deliver increased stability improved ride quality and comfort for daily driven vehicles as well as race-inspired performance handling and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.
Series 3.1 Piggyback:
• Series 3.1 Piggyback Shocks deliver increased stability improved ride quality and comfort on road while the increased compression damping provides more aggressive off-road handling
• Optimized tuning for on- and off-road driving
• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting a consistent controlled feel through all driving conditions
JK:
• JK corner-specific shock absorber w/ race-inspired performance
• Front upper offset stud design provides maximum shock body to frame clearance during articulation
• Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets
• Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires
• Rear Shock Skid Plates available separately
Piggyback:

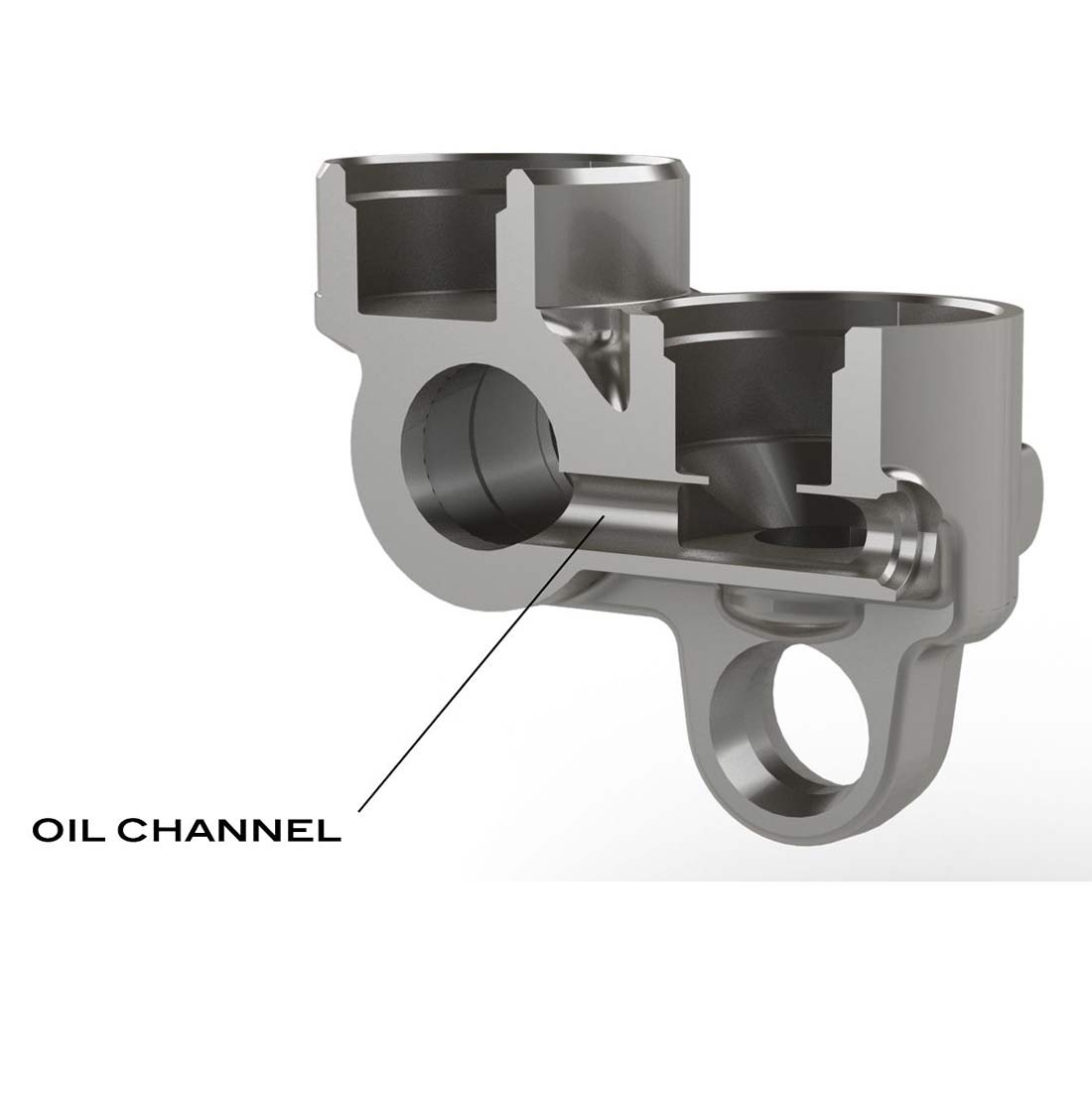

• Piggyback design increases oil and gas capacity for reduced heat
• Flows 6x more oil than restrictive reservoir hose designs
• Eliminates common leakage issues found in banjo and swivel fittings
• Front shocks’ unique horizontal piggyback reservoir increases tire clearance
• Cartridge Upgrade Kits are available separately — contact customer service for details
Falcon Performance Shocks (all):
• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for unobstructed suspension travel and articulation
• 2.3” shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustment on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• Patented design
• 3-year warranty
INCLUDES

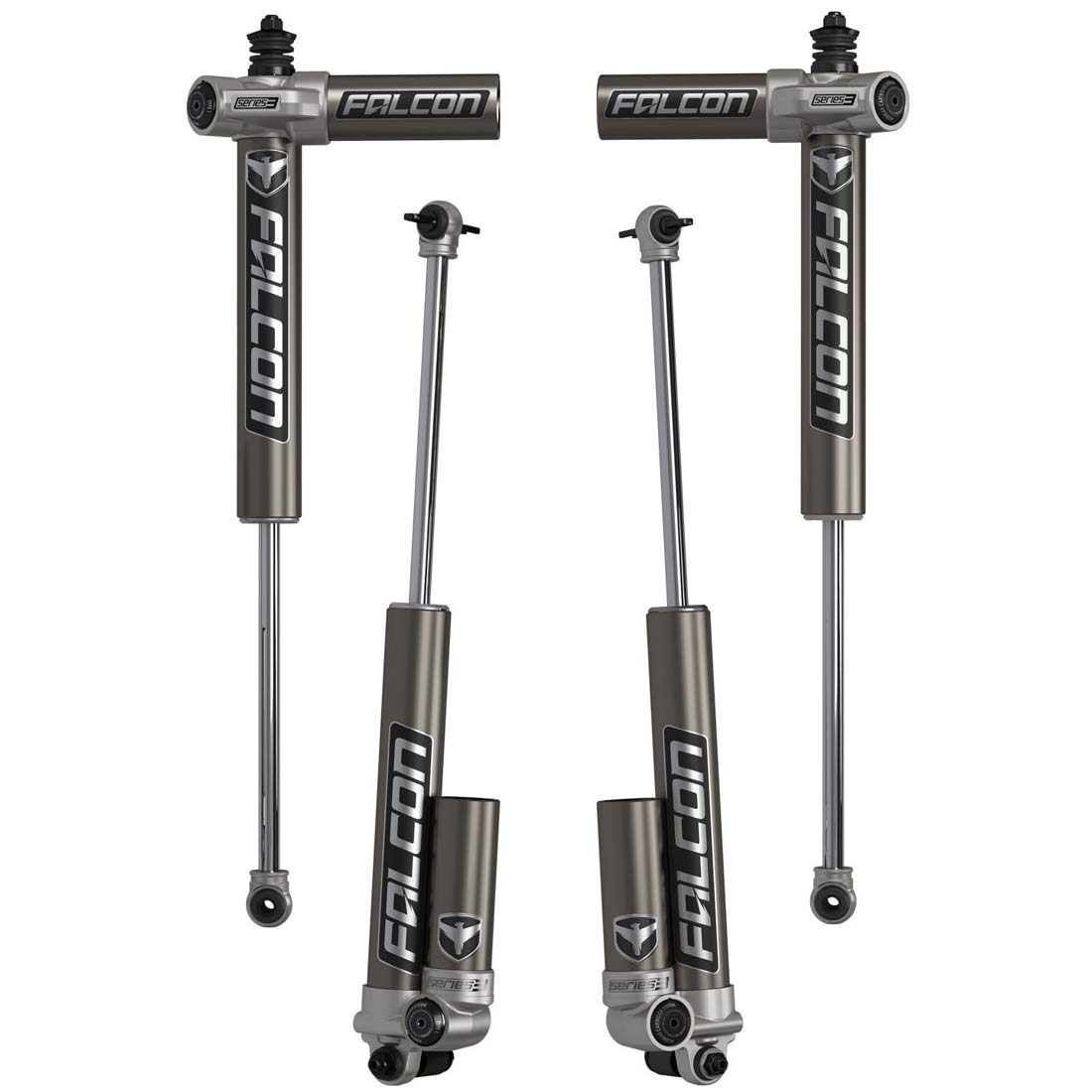

• Falcon 3.1 Piggyback Shocks – all 4
• All necessary hardware
VEHICLE FITMENT INFO
JK Wrangler Unlimited (4-door)
INSTALL TIME
1.5 Hours
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Jeep Wrangler Unlimited 4DR Rubicon, Sahara, Unlimited X
