The Pit Master Industrial Heavy Duty LED Light series was designed for a variety of applications demanding reduced power consumption and increased light output. Direct 1 for 1 replacement for 400-500 Watt HPS lighting for 70% reduction in power consumption while increasing effective output by 30%.
- LEDs: 30 x 5W
- Housing Material: Aluminium
- Light Colour Temp: 6000 Kelvin
- EMC/EMI Approval: CISPR25-Class 3
- Dimensions: 298.5/195.5/127.5 mm
- Weight: 5.6 kg
- Voltage: 11-65V DC – 100-277V AC
- Amperage: [email protected] DC – [email protected] AC
- Vibration Rating: 15.6 Grms
- Lens Material: Polycarbonate
- Certifications: CE, RoHS, IEC 62471
Harnessing Unbeatable Power
Whether you choose the 30 LED or 60 LED Pitmaster, you can rest assured that the LEDs inside the Pitmaster are the best 5-Watt LEDs obtainable. Top-binned and perfectly constructed, these high powered LEDs are capable of outputting 528 raw lumens each.
Rugged and Durable Construction
The combination of a die-cast 6061 aluminum housing, unbreakable polycarbonate lens, integrated deutsch connector, reinforced gasketed bezel and a strengthened trunnion bracket create a one of a kind, high-powered light that will outshine and outlast the competition.
Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

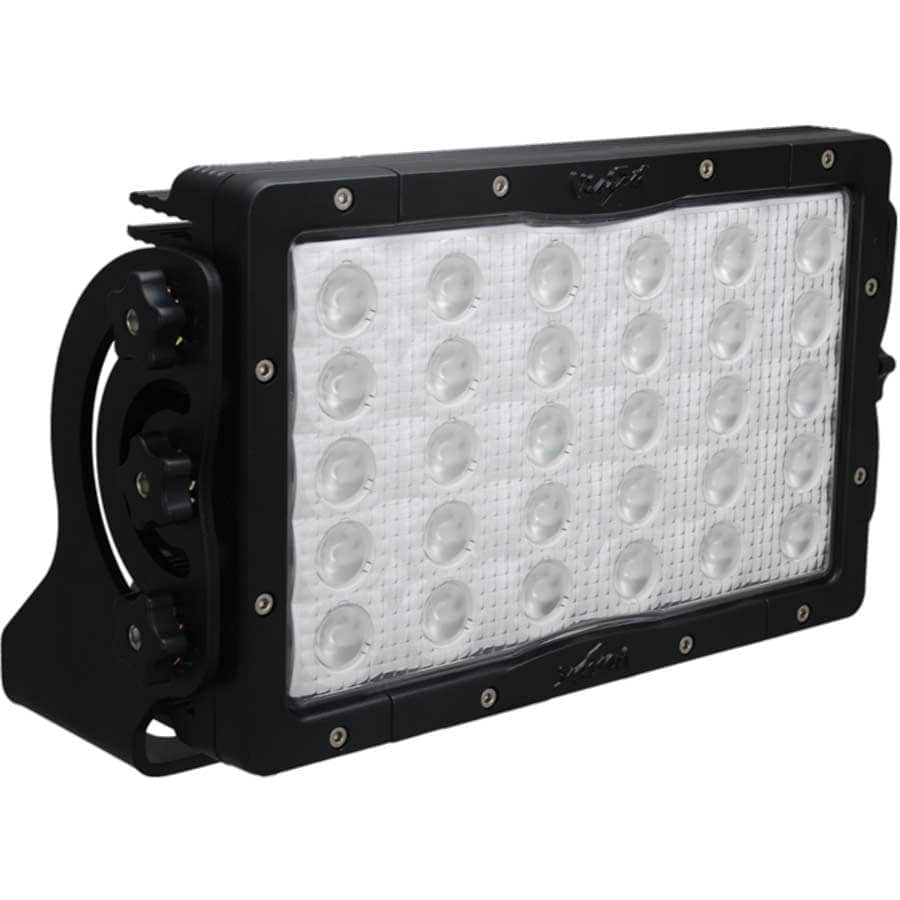

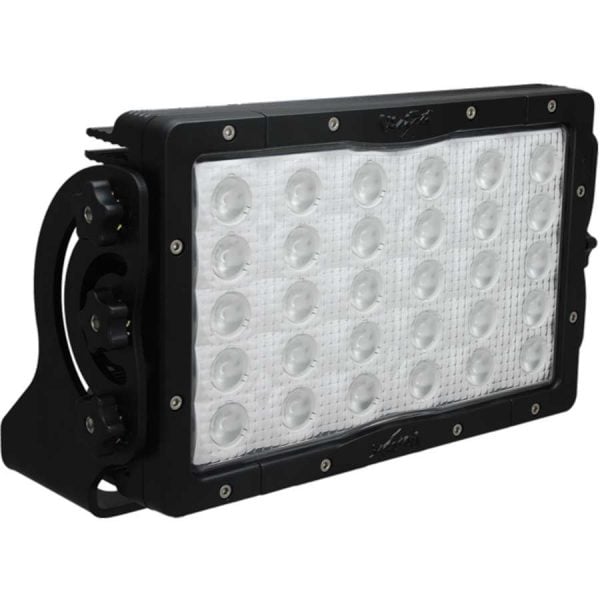

MIL-PMX3010, 10° Narrow, 15,840 lm(raw lumen) 11.540 lm(effective lumens) 150 Watt
MIL-PMX3040. 40° Wide, 15,840 lm(raw lumens) 11.540 lm(effective lumens) 150 Watt
MIL-PMX3060. 60° Extra Wide. 15,840 lm(raw lumen) 11.540 lm(effective lumens) 150 Watt
MIL-PMX3090. 90° Xtrem Wide. 15,840 lm(raw lumen) 11.540 lm(effective lumens) 150 Watt
MIL-PMX30E3065. 30×65° Elliptical. 15,840 lm(raw lumen) 11.540 lm(effective lumens) 150 Watt
Category : Heavy Duty
Warranty : Extended
