Description

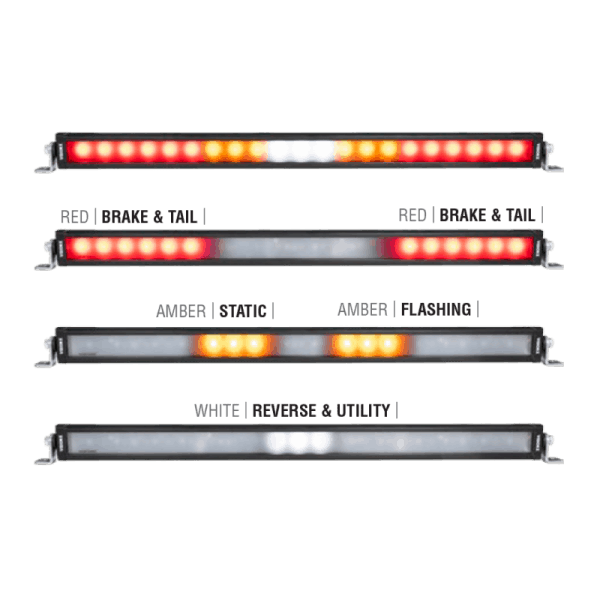

– 5 Function: Red LED Brake & Tail Light, Static Amber Light, Flashing Amber Light, and Reverse/Utility White Light
– Bright flood beam pattern
– Ultra Slim, 2″ Tall Housing Design
– Ideal for both, sport or race applications
– Trucks, Jeeps, UTVs
– Durable 6061 Aluminum Housing & Polycarbonate lens

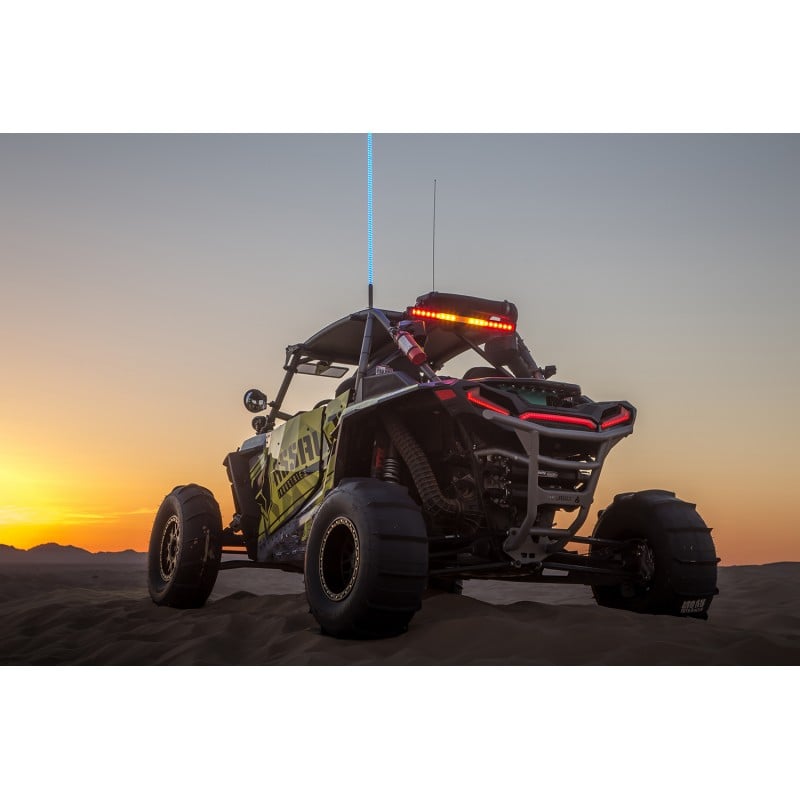

– Accommodates stock UTV (28″) and after-market (35″) roll cages
– Improves safety for following vehicles during the day or night, including dust & fog conditions
– Lifetime Limited Warranty

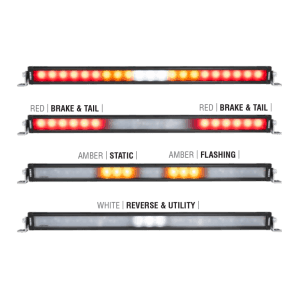

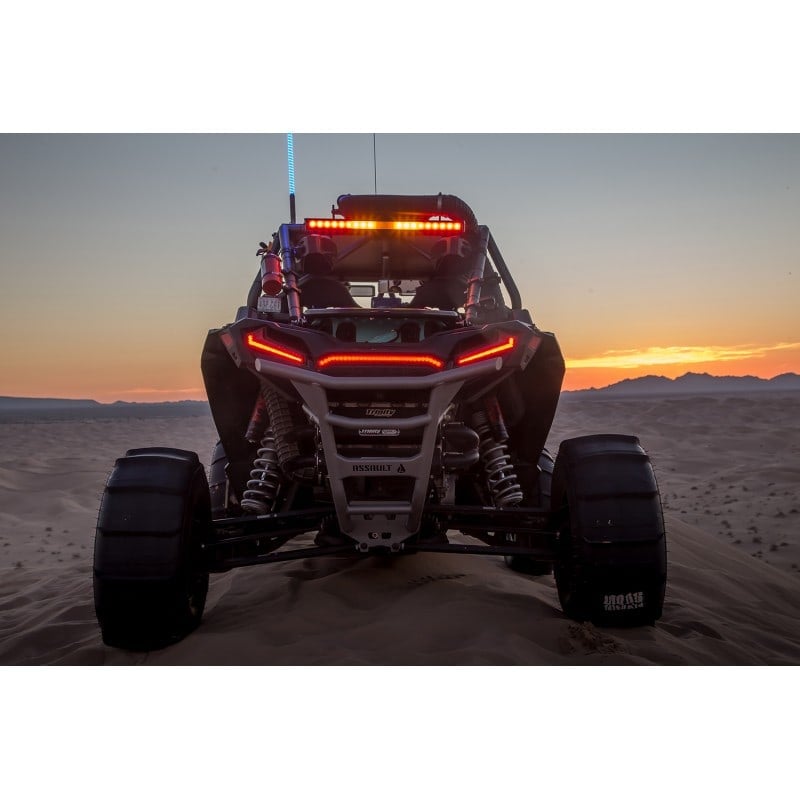

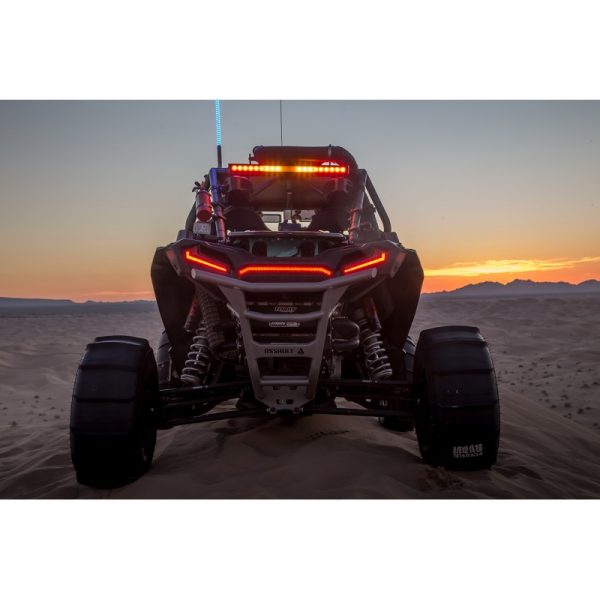

The Vision X XPL Chaser Bar comes standard with an outer section of red LED tail lights on either side with brightening break light feature, two section of Amber LEDs one solid ad one flashing, and lastly a center white section many times used as a reverse light. These lights come with two solid side foot mounts.
LIGHT OUTPUT
BEAM PATTERN 180 degree
LED COLOR White, Amber, Red
DIMENSIONS (35-INCH, XPL-CBSR35, 9928753)
LENGTH 35.75
WIDTH 2.15
HEIGHT 2.7
DIMENSIONS (28-INCH, XPL-CBSR28, 9928746)
LENGTH 28.15
WIDTH 2.15
HEIGHT 2.7
FEATURES
PRIME DRIVE (DIMMABLE)
COVERS AVAILABLE NA
HOUSING MATERIAL 6061 Aluminum
LENS MATERIAL Polycarbonate
IP RATING IP-68
VIBRATION RATING
OPERATION TEMPERATURE -40 Celsius ~ +80 Celsius
LIFE SPAN 50,000 Hours
REVERSE POLARITY PROTECTION ✓
POWER USAGE
WATTAGE 69
AMP DRAW 5.75A
VOLTAGE 9-32V DC
ADDITIONAL

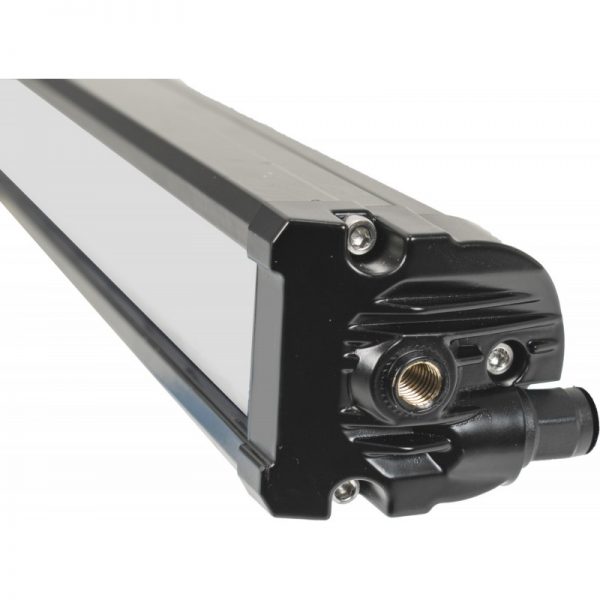

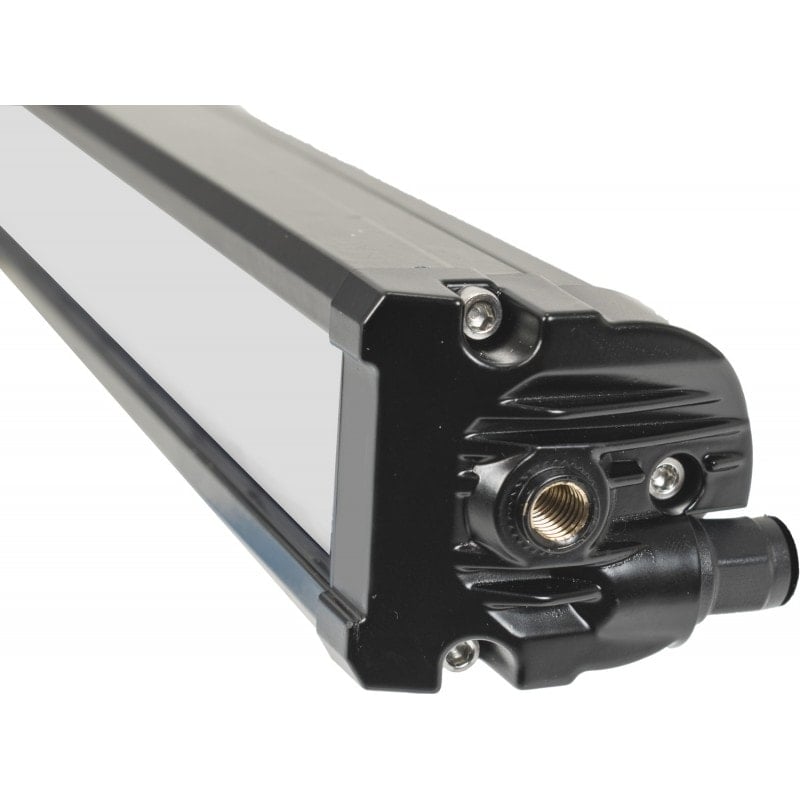

BRACKET TYPE: End Cap Feet
