Description

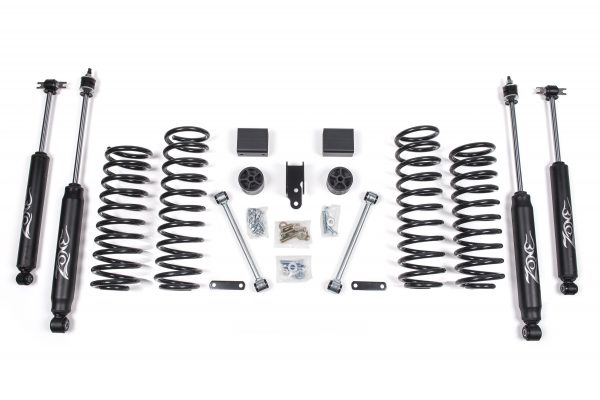

Featured Technology & Benefits
- Coil springs designed to give a full 3″ of lift while maintaining a factory style ride. Our coils are 2door/4door specific, so be sure to select the proper application.
- Rear extended sway bar links are included. These links come with urethane bushings to increase performance and reduce body roll. The factory rear links are then used in the front.
- A rear track bar relocation system is included to perfectly center the axle under your JK
- 2″ bump stop extensions are included to protect your vehicle while still increasing wheel travel
- Brake line relocation brackets are supplied to allow for the dramatic increase in wheel travel
- New Zone front and rear shocks are included that are valved specifically for your JK
- This kit has been approved for use on right hand drive vehicles but may require installation variations. Refer to this kit’s online instructions for the most up to date installation instructions and pay close attention to RHD notes.
Quick Specs
- Front Lift Height: 3″
- Front Lift Method: Coil Springs
- Rear Lift Height: 3″
- Rear Lift Method: Coil Springs
- Install Time Hrs: 4-5
- Difficulty Level 1-5: 2
- Wheel Size: 16 x 8
- Back Spacing: 4.5
- Max Tire Size: 35″ x 12.50″

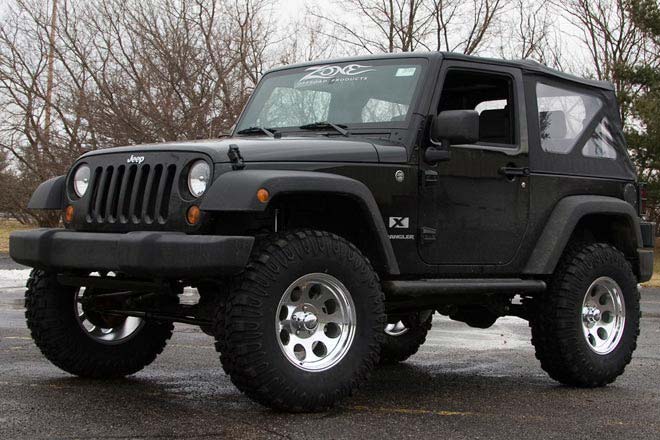

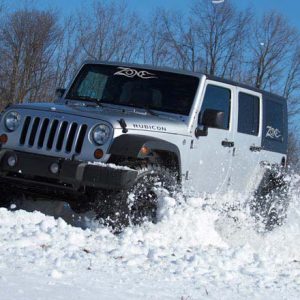

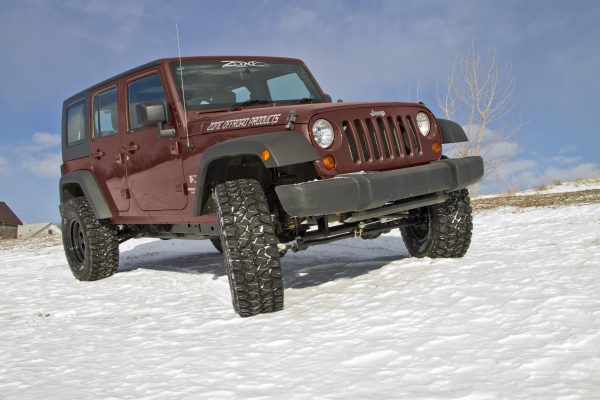

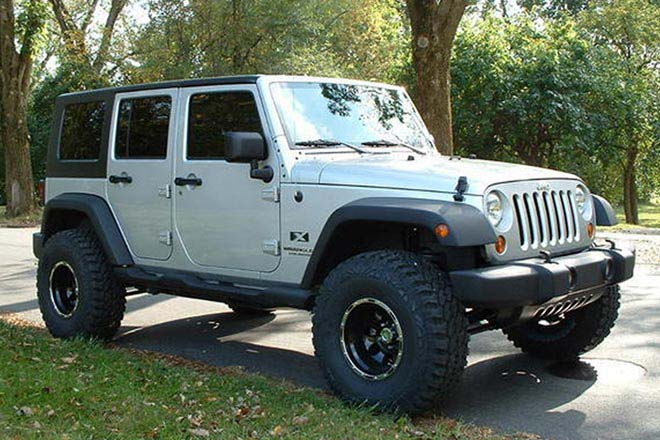

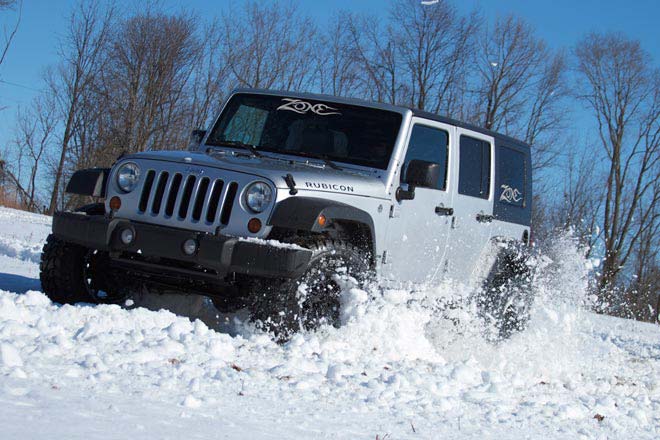

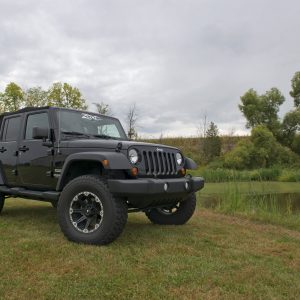

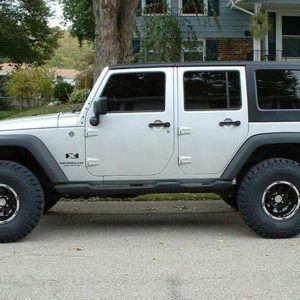

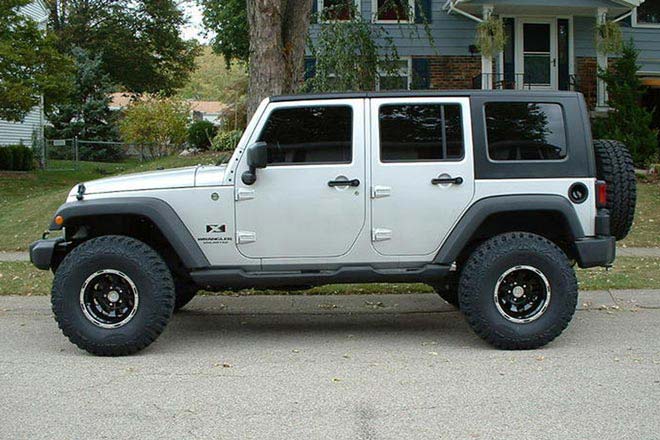

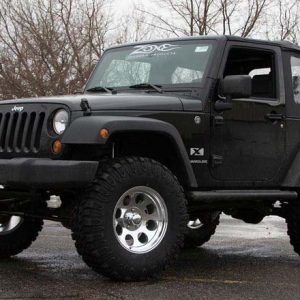

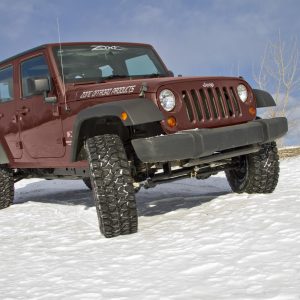

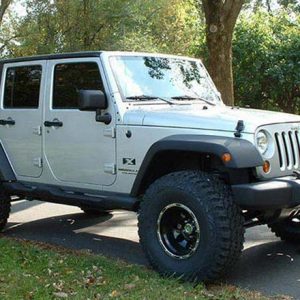

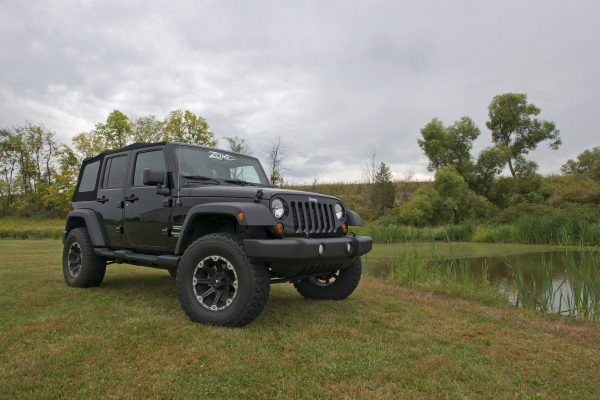

Prepare yourself for the perfect combination of off road performance and on road handling. This 3″ JK system offers dramatic improvement in both ground clearance as well as wheel travel. With 3″ of lift, you can clear those 35’s with room to twist as well as use your Jeep for a daily driver. Zone coil springs are designed so they can be totally smashed flat and still return to their original height, so you don’t have to worry about your coils sagging!
Important Notes!
- This complete suspension lift system is designed for 2door and 4 door models
- WIll work on Rubicon models.
- The coil springs are 2 door and 4 door specific. Be sure to choose the correct application when ordering.
- Factory wheels cannot be re-installed due to rear sway bar link interference.
- 2012-18 models using the stock front driveshaft require exhaust extension kit J5305 listed in the accessories.
- Optional front alignment cam locks recommended if using stock (or stock length) front lower control arms. Alignment cam locks add 2 degrees of caster when used on stock length control arms.
- The J12N & J13N kits include Nitro Series Shocks (pn# 7700 & pn#7951). The kit includes either pn# 1310 or #1311 and the Nitro Series Shocks.
This product fits the following applications:
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Jeep Wrangler JK 2 door, 4 Door, 4WD Gas
