Description
Featured Technology & Benefits
Front strut top spacer – no strut disassembly required
Maintains handling and ride characteristics and works with factory stability control
3″ rear coil springs or 2″ coil spacers
Differential skid plate included
CNC machined steering knuckles
Quick Specs
Front Lift Height: 4″
Front Lift Method: Upper Strut Mounts
Rear Lift Height: 2 or 3″
Rear Lift Method: Coil Spacer
Install Time Hrs: 8-10
Difficulty Level 1-5: 3
Wheel Size: 17 x 9
Back Spacing: 4.5″
Max Tire Size: 35 x 12.50
Wheel Size: 18 x 9
Back Spacing: 5″
Max Tire Size: 35 x 12.50
Wheel Size: 20 x 9
Back Spacing: 5″
Max Tire Size: 35 x 12.50
Zone Offroad 2012 Dodge 1500 4wd 4″ Lift System

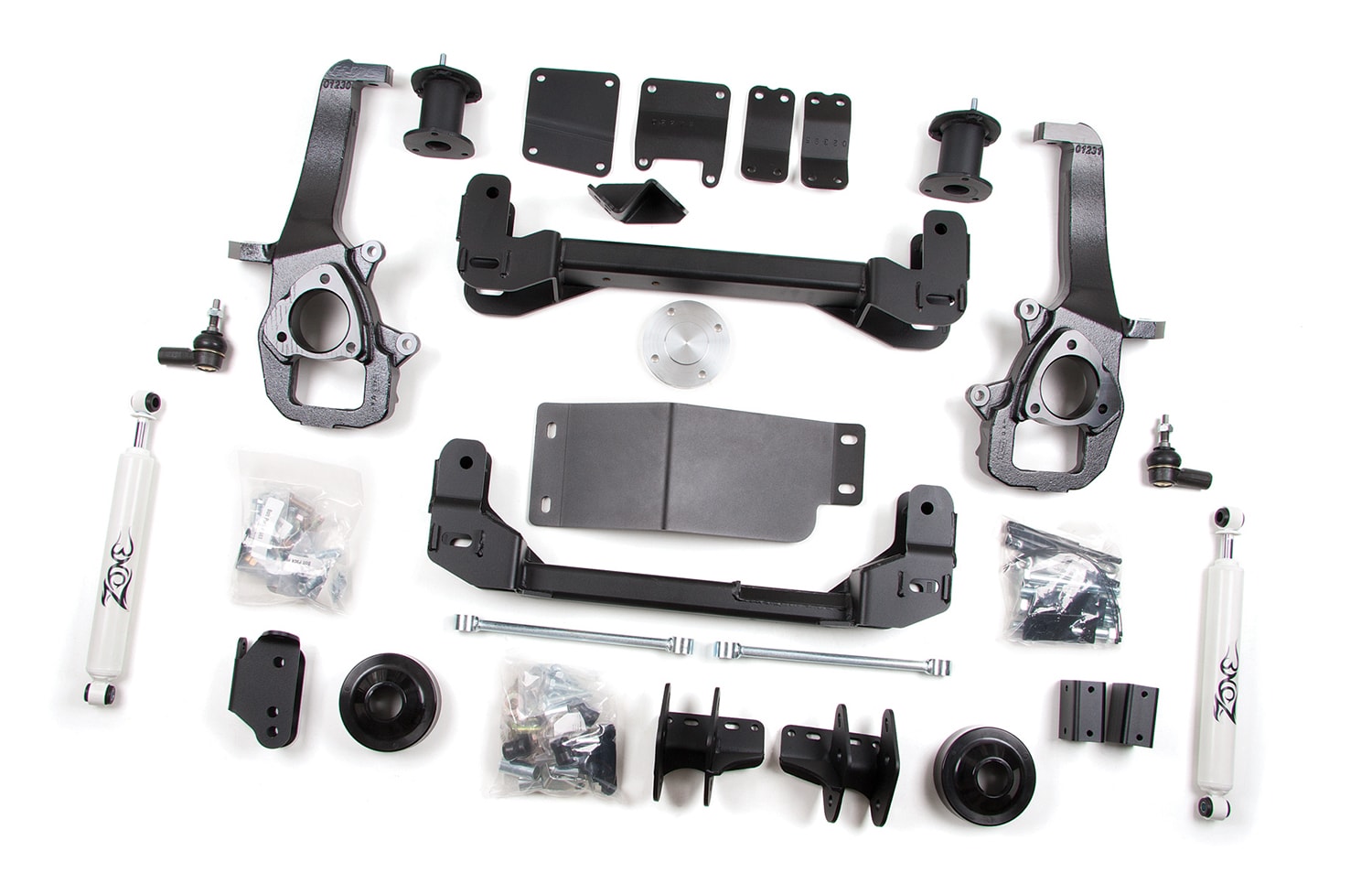

The main components of the Zone Offroad 2012 Dodge 1500 4″ Suspension System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacements tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 09-11 models is an all new differential relocation system specifically designed for 2012 front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.
Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory this 4″ system comes standard with 2″ rear coil spacers to help level the vehicle. Zone Offroad also offers 3″ rear coils springs depending on your desired stance. It’s best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 2 and 3 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.
Make your new 2012 Dodge stand out with a brand new quality, yet affordable suspension lift from Zone Offroad and be glad you did.
Important Notes!
Not recommended for AWD models.
TRX models require removal of the lower skid plate but it is replaced in our lift system.
This product fits the following applications:
2012 Dodge/Ram Ram 1500 4WD
